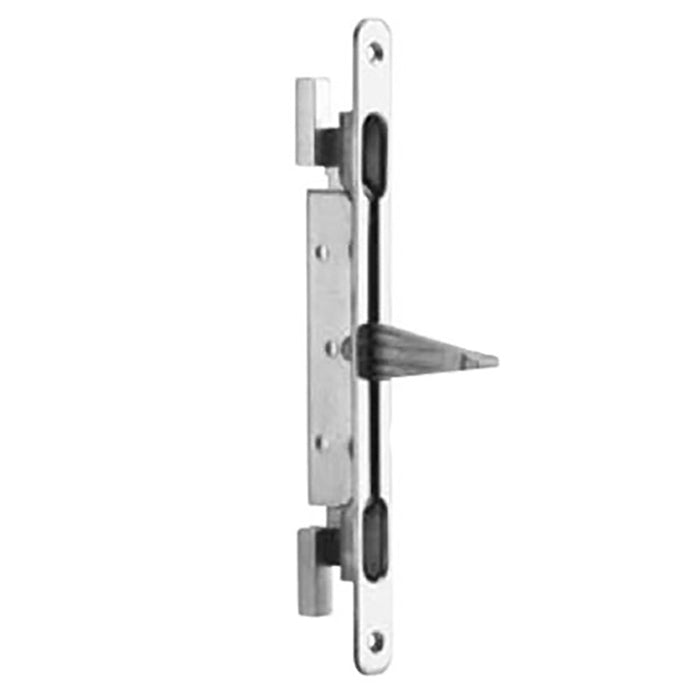

Hoppe Inactive Flushbolt Rod for Double French Doors – 24mm Backset, Brushed Stainless

SKU: 2391201

$191.46 - $191.46

$191.46

$191.46 - $191.46

$191.46

Rod Backset: 0.94" (24mm) from edge of faceplate to center of rod
Rod Diameter: 5/16" (8mm) thread
Faceplate Width: 3/4" (20mm)
Faceplate End: Radius
Finish: Brushed Stainless (F69)

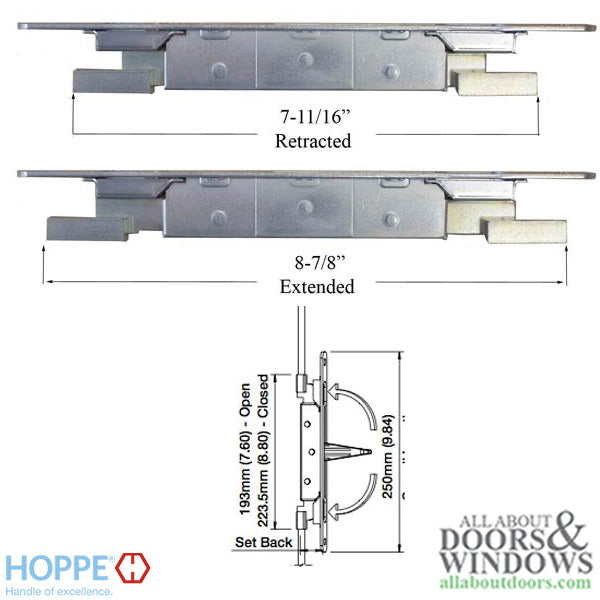

Rods Extended/Locked: 8.80" (223.5mm)
Rods Retracted/Unlocked: 7.60" (193mm)
Overall Body Length: 9.84" (250mm)
Flip lever operation for double French doors
Rods may be cut to size if too long
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Inactive Flushbolt Rod – 24mm Backset, Stainless (2391201)

This Hoppe inactive flushbolt rod is designed for use on double French doors. It features a flip lever mechanism for easy operation and comes in a brushed stainless steel finish (F69) with a radius-end faceplate.

The rod has a 0.94-inch (24mm) backset measured from the edge of the faceplate to the center of the rod. The rod diameter is 5/16 inch (8mm) threaded. When extended and locked, the rods measure 8.80 inches (223.5mm), and when retracted and unlocked, they measure 7.60 inches (193mm). The overall flushbolt body length is 9.84 inches (250mm).

Technical Information

Faceplate Width: 3/4 inch (20mm)
Faceplate End: Radius
Faceplate Finish: Brushed Stainless (F69)
Rod Backset: 0.94 inches (24mm)
Rod Diameter: 5/16 inch (8mm) thread
Rods Extended/Locked: 8.80 inches (223.5mm)
Rods Retracted/Unlocked: 7.60 inches (193mm)
Overall Body Length: 9.84 inches (250mm)

Notes

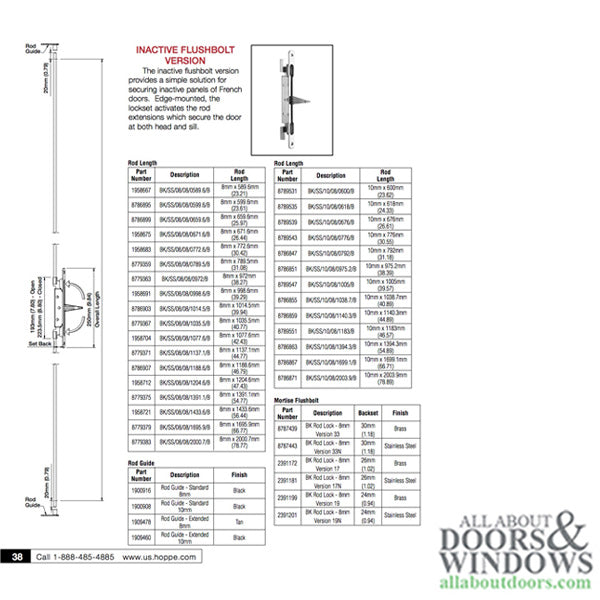

Multiple options available including different faceplate finishes (Brass or Brushed Stainless), rod backsets (24mm, 26mm, or 30mm), and rod diameters (8mm or 10mm)
Rods may be cut to size if too long
To determine bottom rod length: Handle height minus 4.8125 inches plus rod length equals handle height
To determine top rod length: Handle height plus 2.5 inches plus rod length equals door panel handle height
Add rod lengths plus 7.3125 inches to get overall door panel length

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the correct rod length for my door?

For the bottom rod, take your handle height minus 4.8125 inches plus the rod length. For the top rod, take your handle height plus 2.5 inches plus the rod length. Rods can be cut to size if they are too long.

What is the difference between the extended and retracted rod positions?

When extended and locked, the rods measure 8.80 inches (223.5mm). When retracted and unlocked, they measure 7.60 inches (193mm), providing approximately 1.2 inches of travel.

What configuration options are available for this flushbolt?

This flushbolt is available with different faceplate finishes (Brass or Brushed Stainless), rod backsets (24mm, 26mm, or 30mm), and rod diameters (8mm or 10mm).
