Hoppe Inactive Flushbolt Rod – 26mm Backset, Flip Lever, Brushed Stainless

SKU: 2391181

$191.46 - $191.46

$191.46

$191.46 - $191.46

$191.46

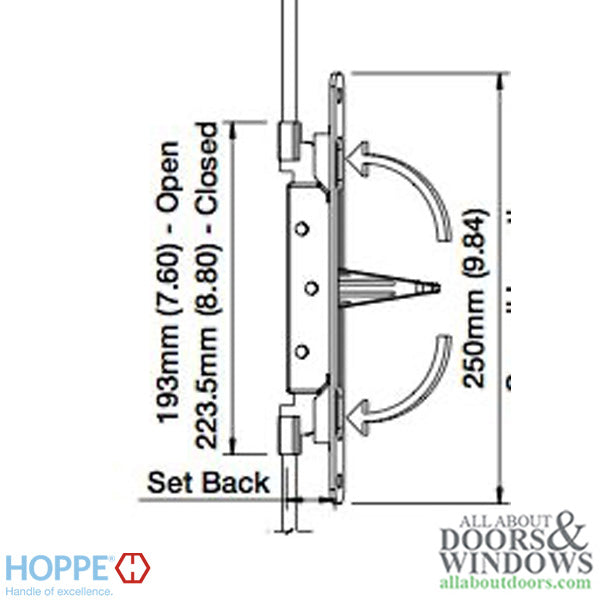

Backset: 1.02" (26mm) from edge of faceplate to center of rod
Faceplate Width: 3/4" (20mm)
Faceplate End: Radius
Finish: Brushed Stainless (F69)
Rod Diameter: 5/16" (8mm) thread
Rod Extended/Locked: 8.80" (223.5mm)
Rod Retracted/Unlocked: 7.60" (193mm)
Overall Body Length: 9.84" (250mm)
Used on double French doors for inactive panel
Flip lever operation
Rods can be cut to size if too long
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Inactive Flushbolt Rod – 26mm, Stainless (2391181)

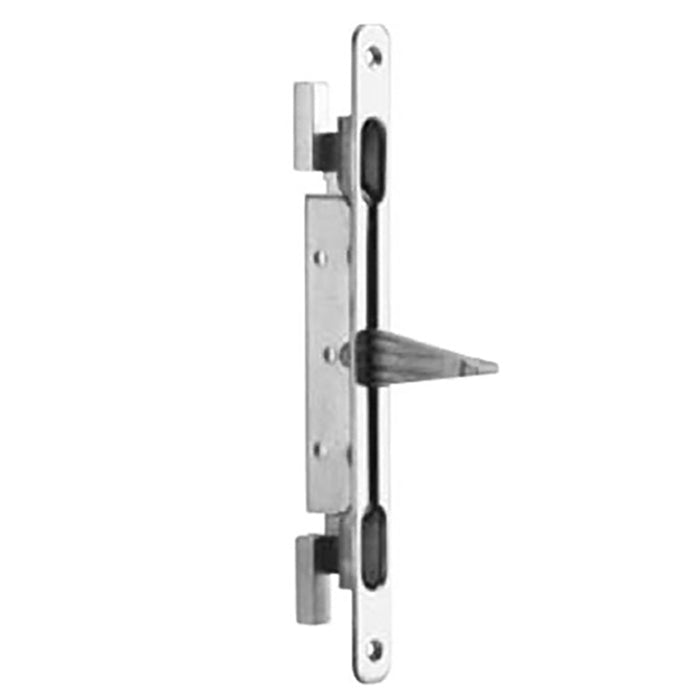

This Hoppe inactive flushbolt rod is designed for use on double French doors, securing the inactive door panel when closed. The flip lever mechanism allows for easy operation when you need to open both doors.

The flushbolt features a brushed stainless steel finish (F69) with a radius-end faceplate measuring 3/4 inches (20mm) wide. The rod has a 1.02-inch (26mm) backset measured from the edge of the faceplate to the center of the rod, with a 5/16-inch (8mm) threaded rod diameter.

When extended and locked, the rod measures 8.80 inches (223.5mm), and when retracted and unlocked, it measures 7.60 inches (193mm). The overall flushbolt body length is 9.84 inches (250mm). Rods can be cut to size if they are too long for your application.

Technical Information

Faceplate Width: 3/4 inches (20mm)
Faceplate End: Radius
Finish: Brushed Stainless (F69)
Rod Backset: 1.02 inches (26mm)
Rod Diameter: 5/16 inches (8mm) thread
Rod Extended/Locked: 8.80 inches (223.5mm)
Rod Retracted/Unlocked: 7.60 inches (193mm)
Overall Body Length: 9.84 inches (250mm)

Notes

Available options include brass or brushed stainless faceplate finish

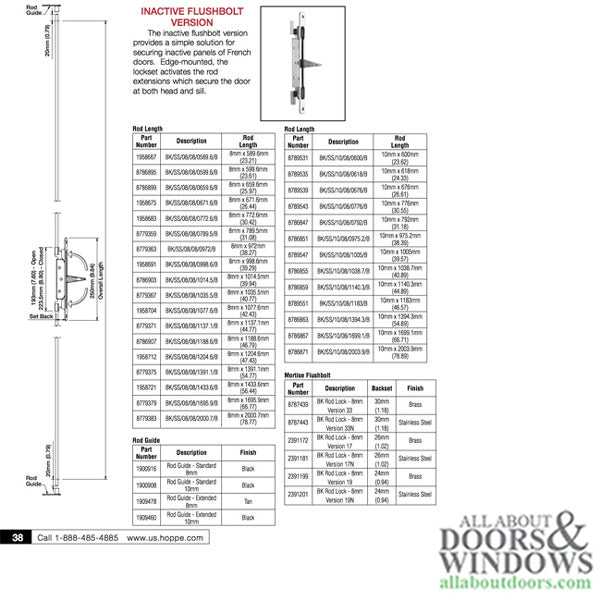

Rod backset options: 0.94 inches (24mm), 1.02 inches (26mm), or 1.18 inches (30mm)
Rod diameter options: 5/16 inches (8mm) or 3/8 inches (10mm)
Rod length varies and can be cut to size
To determine bottom rod length: Bottom handle height minus 4.8125 inches plus rod length equals handle height
To determine top rod length: Top handle height plus 2.5 inches plus rod length equals door panel handle height
Add rod lengths plus 7.3125 inches to get overall door panel length

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the correct rod length for my door?

For the bottom rod, take your bottom handle height, subtract 4.8125 inches, then add the rod length. For the top rod, take your top handle height, add 2.5 inches, then add the rod length. Rods can be cut to size if too long.

What is an inactive flushbolt used for?

An inactive flushbolt secures the inactive panel on double French doors, keeping it locked in place until you need to open both doors using the flip lever mechanism.

Can I use this flushbolt with different backset measurements?

This specific unit has a 26mm backset, but Hoppe offers this flushbolt in three backset options: 24mm, 26mm, and 30mm. Verify your door's requirements before ordering.
