Hoppe Inactive Flushbolt Rod for Double French Doors – Polished Brass

SKU: 2391172

Sold out

$132.43 - $132.43

$132.43

$132.43 - $132.43

$132.43

Faceplate Width: 3/4" (20mm)
Faceplate End: Radius
Faceplate Finish: Polished Brass (F71)

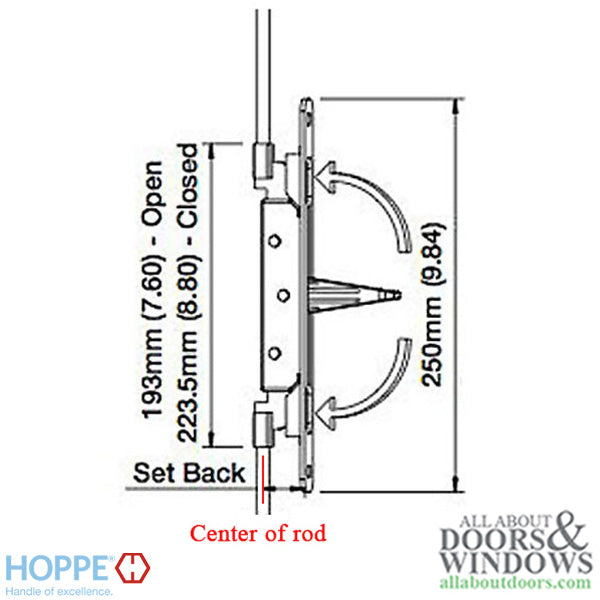

Rod Backset: 1.02" (26mm) from edge of faceplate to center of rod
Rod Diameter: 5/16" (8mm) thread
Rod Extended/Locked: 8.80" (223.5mm)
Rod Retracted/Unlocked: 7.60" (193mm)
Overall Body Length: 9.84" (250mm)
For use on double French doors (inactive side)
Rods may be cut to size if too long
Discounted item – limited to existing inventory
Priced and sold each

Discontinued and no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

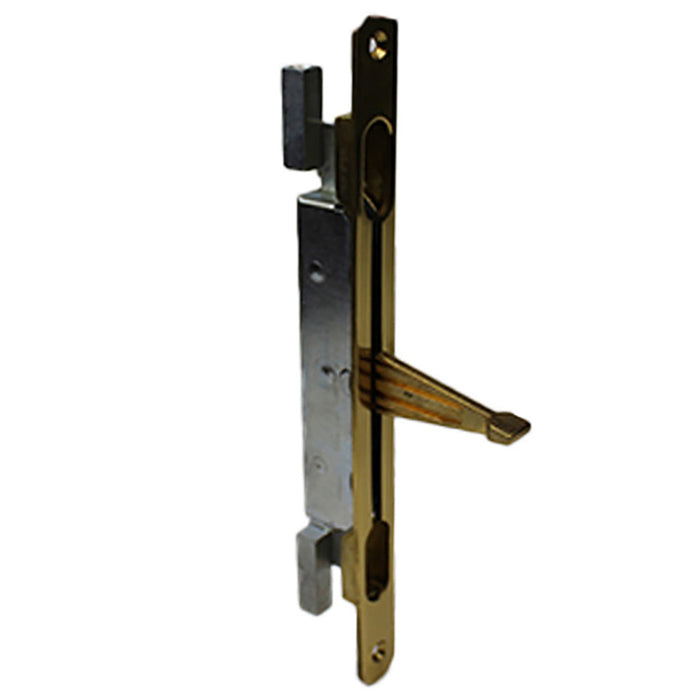

Hoppe Inactive Flushbolt Rod – Polished Brass (2391172)

This Hoppe inactive flushbolt rod is designed for use on double French doors, securing the inactive door panel at the top and bottom. The flushbolt features a polished brass faceplate finish (F71) with a radius end profile for a clean, finished appearance.

The faceplate measures 3/4 inches (20mm) wide with an overall body length of 9.84 inches (250mm). The rod has a backset of 1.02 inches (26mm) measured from the edge of the faceplate to the center of the rod, with a 5/16-inch (8mm) threaded rod diameter. When extended and locked, the rod measures 8.80 inches (223.5mm), and when retracted and unlocked, it measures 7.60 inches (193mm).

Technical Information

Faceplate Width: 3/4 inches (20mm)
Faceplate End: Radius
Faceplate Finish: Polished Brass (F71)
Rod Backset: 1.02 inches (26mm)
Rod Diameter: 5/16 inches (8mm) thread
Rod Extended/Locked: 8.80 inches (223.5mm)
Rod Retracted/Unlocked: 7.60 inches (193mm)
Overall Body Length: 9.84 inches (250mm)

Notes

Available options include different faceplate finishes (Brass or Brushed Stainless), rod backsets (0.94 inches/24mm, 1.02 inches/26mm, or 1.18 inches/30mm), and rod diameters (5/16 inches/8mm or 3/8 inches/10mm)
Rod lengths vary – top and bottom rods may be cut to size if too long
To determine rod length (rod not included): Bottom handle height minus 4.8125 inches plus rod length equals handle height; Top handle height plus 2.5 inches plus rod length equals door panel handle height
Add rod lengths plus 7.3125 inches to get overall door panel length
This item has been discounted and is limited to existing inventory

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine the correct rod length for my door?

For the bottom rod, take your handle height minus 4.8125 inches plus the rod length. For the top rod, take your handle height plus 2.5 inches plus the rod length. Rods can be cut to size if too long.

What is a flushbolt used for on French doors?

A flushbolt secures the inactive door panel of a double French door at the top and bottom, allowing the active door to latch properly while keeping the inactive panel locked in place.

Are the rods included with this flushbolt?

The rod length varies by application and may need to be ordered separately or cut to size based on your door measurements.
