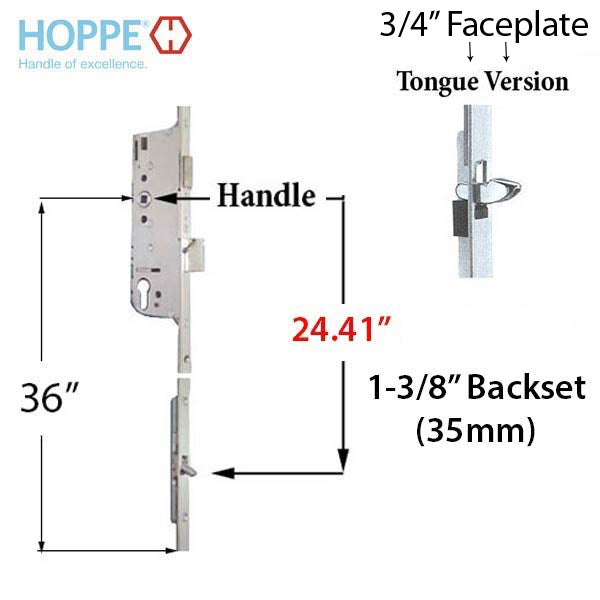

Hoppe HLS9000 Multipoint Lock – 35mm Backset, 20mm Faceplate, Tongue Version

SKU: 2332324

$161.49 - $161.49

$161.49

$161.49 - $161.49

$161.49

Backset: 1-3/8" (35mm)
PZ: Not specified in product data
Faceplate Width: 3/4" (20mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)
Bottom Tongue Position: 24.41" (620mm)
Maximum Cutoff: 6.30" (160mm)
Manual gear operation with tongue for active door
Includes bottom assembly only – upper extensions sold separately
6 mounting screws included
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Multipoint Lock – 35mm Backset, Tongue (2332324)

This Hoppe HLS9000 multipoint lock features manual gear operation with a tongue design, specifically engineered for active doors. The lock body provides reliable security with a 1-inch deadbolt throw and is designed for doors requiring a 35mm (1-3/8 inches) backset.

The 3/4-inch (20mm) wide faceplate allows for installation in standard door preparations. With a handle height of 36 inches (914mm) and bottom tongue position at 24.41 inches (620mm), this lock is suitable for standard residential door applications.

Technical Information

Faceplate Width: 3/4 inches (20mm)
Backset: 1-3/8 inches (35mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914mm)
Bottom Tongue Position: 24.41 inches (620mm)
Maximum Cutoff: 6.30 inches (160mm)
Number of Screws: 6

Notes

Manual function lock – lift handle then turn thumbturn or key to extend deadbolt
To unlock, turn thumbturn or key then depress lever
Bottom assembly only – does not include upper extensions or other components

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I operate this multipoint lock?

To lock, lift the handle and then turn the thumbturn or key to extend the deadbolt. To unlock, turn the thumbturn or key first, then depress the lever.

Does this include the complete multipoint system?

No, this is the bottom assembly only. Upper extensions and other components are sold separately.

What is the tongue version used for?

The tongue version is designed for active doors in multipoint lock systems, providing the primary locking mechanism that engages with the door frame.
