Hoppe HLS9000 Multipoint Gear – 45mm Backset, 92mm PZ, 36" Handle Height

Hoppe HLS9000 Multipoint Gear – 45mm Backset, 92mm PZ, 36" Handle Height

SKU: 2320972

$166.66 - $166.66
$166.66
$166.66 - $166.66
$166.66
  • PZ: 92mm
  • Backset: 45mm (1.77")
  • Faceplate Width: 3/4" (20mm)
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 26.42" (671mm)
  • Deadbolt Throw: 0.55" (14mm)
  • Maximum Cutoff: 4.53" (115mm)
  • Operation: Manual – lift handle, then turn thumbturn or key to extend deadbolt
  • Includes: Bottom assembly only – does not include upper extensions or other components
  • Number of Screws: 6
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Multipoint Gear – 45/92, 36" HH (2320972)

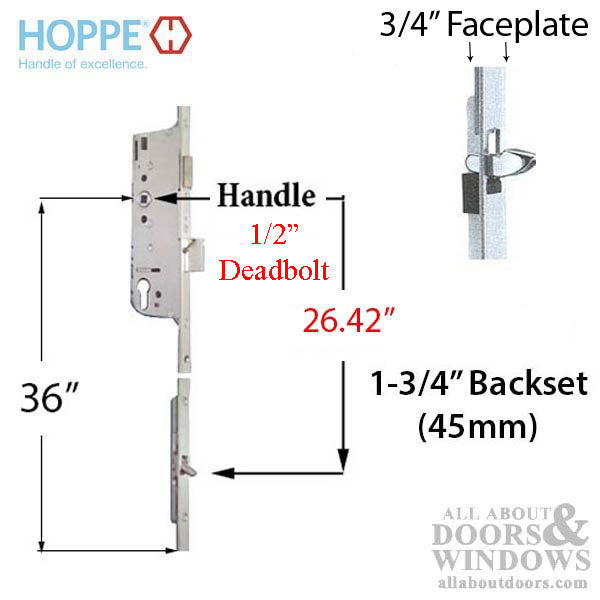

This Hoppe HLS9000 multipoint lock gear is designed for doors requiring a 45mm backset and 92mm PZ configuration. The bottom assembly features a 36-inch handle height and a tongue positioned at 26.42 inches from the handle center, making it suitable for specific door applications where precise measurements are critical.

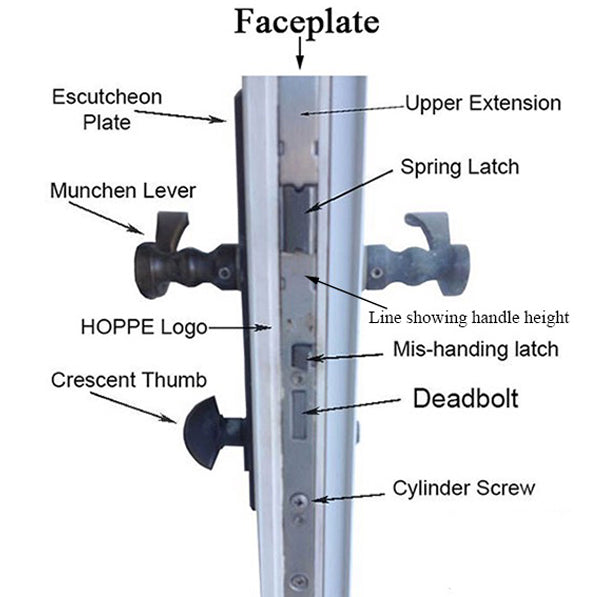

The gear operates with a manual function: to lock the door, lift the handle and then turn the thumbturn or key to extend the deadbolt. To unlock, turn the thumbturn or key first, then depress the lever. This lift-to-lock mechanism is standard for Hoppe multipoint systems.

Technical Information

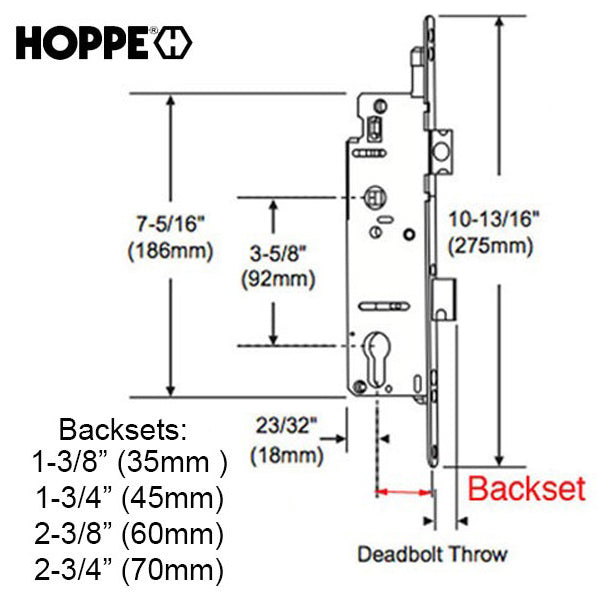

  • PZ (Handle to Cylinder Center): 92mm
  • Backset: 45mm (1.77 inches)

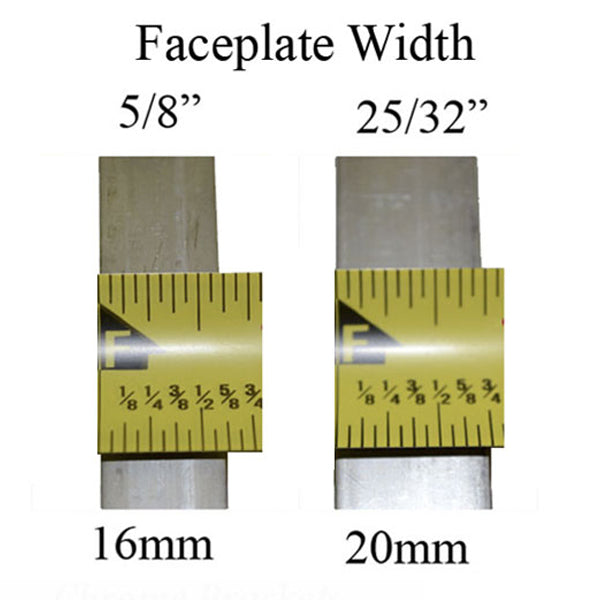

  • Faceplate Width: 20mm (3/4 inch)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 26.42 inches (671mm)
  • Deadbolt Throw: 0.55 inches (14mm)
  • Maximum Cutoff: 4.53 inches (115mm)
  • Number of Screws: 6

Notes

  • This is the bottom assembly only and does not include additional upper extensions or other components
  • Compatible with Hoppe HLS9000 multipoint door systems

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I lock and unlock a door with this Hoppe HLS9000 gear?

To lock, lift the handle and then turn the thumbturn or key to extend the deadbolt. To unlock, turn the thumbturn or key first, then depress the lever.

Does this include all the components needed for a complete multipoint lock system?

No, this is the bottom assembly only and does not include upper extensions or other components. You may need to purchase additional parts separately.

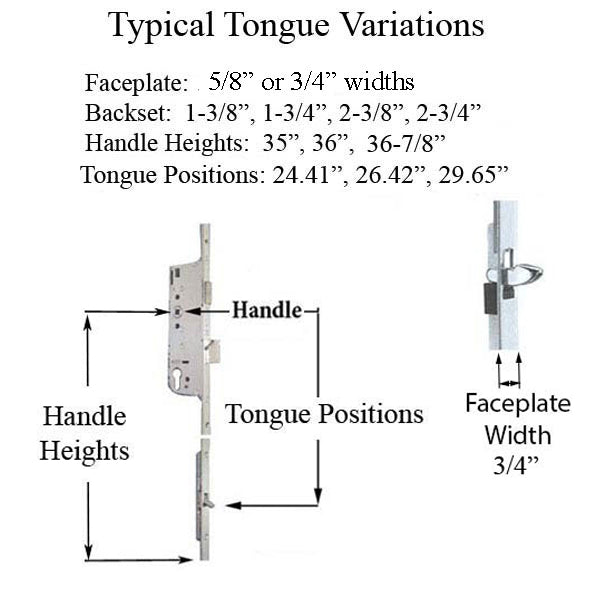

What does the 26.42 inch tongue position measurement mean?

This is the distance from the center of the handle to the bottom tongue (shootbolt), which helps ensure proper alignment with your door frame strike plate.
