Hoppe Inactive Flushbolt HTL Rod Version Gear – 45mm Backset, Right Hand

SKU: 2310555

$195.87 - $195.87

$195.87

$195.87 - $195.87

$195.87

Backset: 1-3/4" (45mm)
Rod Backset: 0.98" (25mm)
Handing: Right Hand
Rod Diameters: 5/16" (8mm) or 25/64" (10mm)
Type: Inactive Rod Version – used when there is NO astragal between french door panels
Secures door at head and sill while active door lock engages to secure both doors together
Faceplate is handed – radius side indicates left or right hand with handle at top, cylinder at bottom
Rods screw into mortise lock body and can be cut to length as needed
Status: Discontinued – Limited Quantities
Sold each

Discontinued - Limited Inventory

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe Inactive Flushbolt HTL Rod Version – Right Hand, 45mm (2310555)

This Hoppe Inactive Flushbolt HTL Rod Version Gear is designed for french door applications where there is no astragal between the door panels. The inactive rod version secures the inactive door at the head and sill, while the active door lock engages to secure both doors together.

This lock features a 1-3/4 inch (45mm) cylinder backset and a 0.98 inch (25mm) rod backset. The faceplate is handed – as you look at the faceplate, one side is square and one side is radius. The radius side indicates the handing (left or right) with the handle positioned at the top and cylinder at the bottom. This unit is right-handed.

Compatible rods are available in two diameters: 5/16 inch (8mm) or 25/64 inch (10mm). Rods screw directly into the mortise lock body and can be cut to length as needed. Rods are sold separately in multiple lengths.

Technical Information

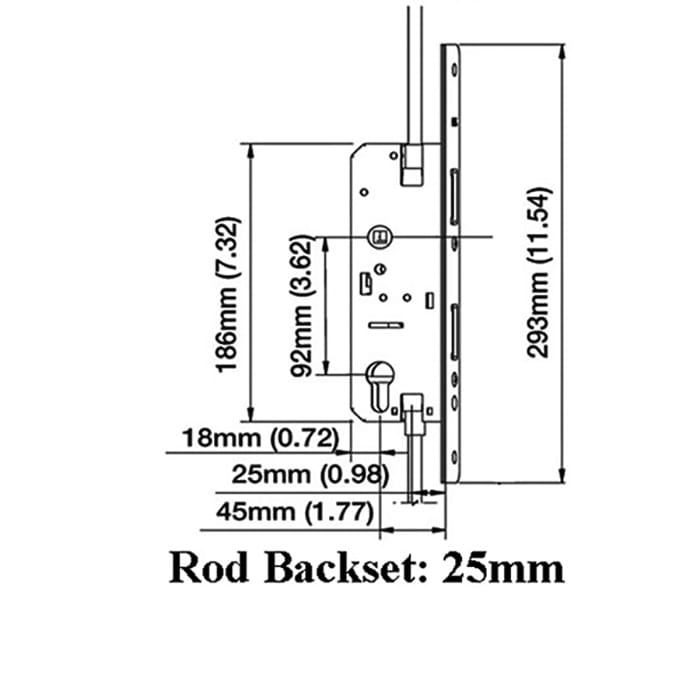

Cylinder Backset: 1-3/4 inches (45mm)
Rod Backset: 0.98 inches (25mm)
Handing: Right Hand
Compatible Rod Diameters: 5/16 inch (8mm) or 25/64 inch (10mm)

Notes

This product is discontinued with limited quantities available
Faceplate is handed, not the lock body
Rods sold separately in multiple lengths

Replaces / Replaced by

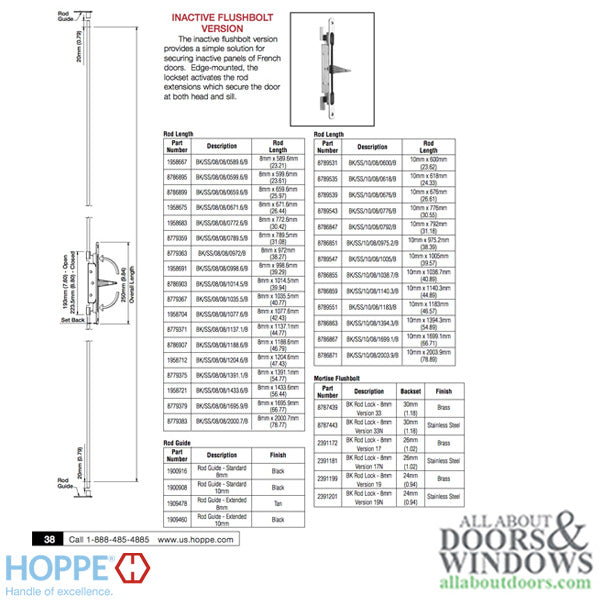

When sold out, Hoppe suggests replacing with the Inactive Flushbolt Version

Sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between the Inactive Rod Version and the Inactive Flushbolt Version?

The Inactive Rod Version is used when there is no astragal between french door panels. It uses rods that screw into the lock body to secure the door at the head and sill.

How do I determine the handing of this lock?

Look at the faceplate – one side is square and one side has a radius. The radius side indicates the handing (left or right) with the handle at the top and cylinder at the bottom.

Can I cut the rods to fit my door?

Yes, the rods screw into the mortise lock body and can be cut to length as needed. Rods are sold separately in multiple lengths.
