Hoppe Bottom Gear Assembly – 45mm Backset, 20mm Faceplate, Manual Shootbolt

Hoppe Bottom Gear Assembly – 45mm Backset, 20mm Faceplate, Manual Shootbolt

SKU: 2185141

$173.32 - $173.32
$173.32
$173.32 - $173.32
$173.32

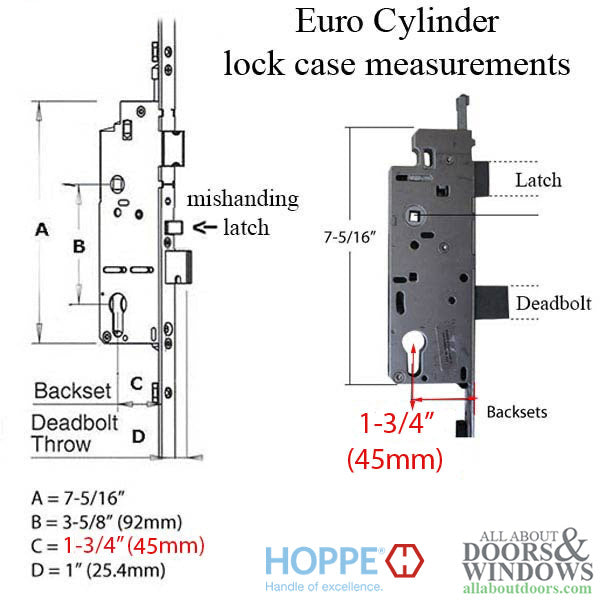

  • Backset: 1-3/4" (45mm)
  • PZ: Not specified - contact us for details
  • Faceplate Width: 3/4" (20mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Handle Height: 36" (914mm)
  • Type: Manual Shootbolt Version
  • Number of Screws: 6
  • Bottom gear assembly only
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

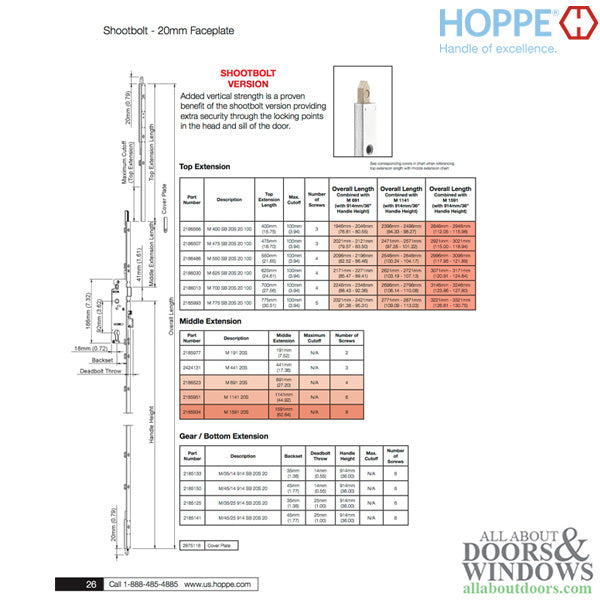

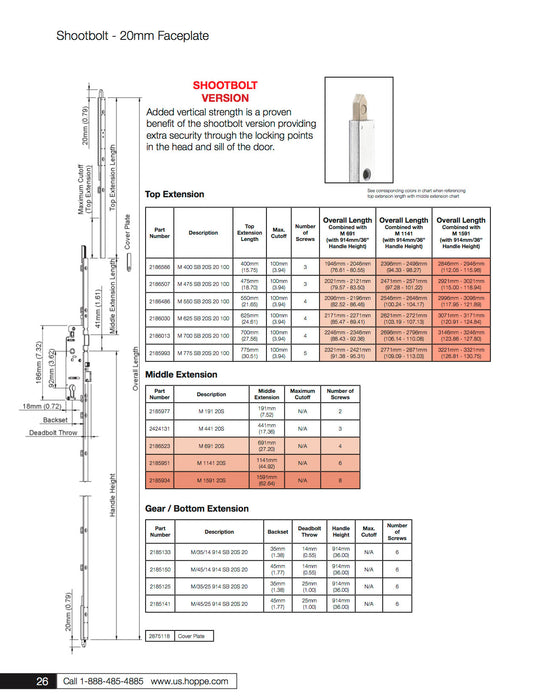

Hoppe 20mm Faceplate Bottom Gear – 45mm Backset (2185141)

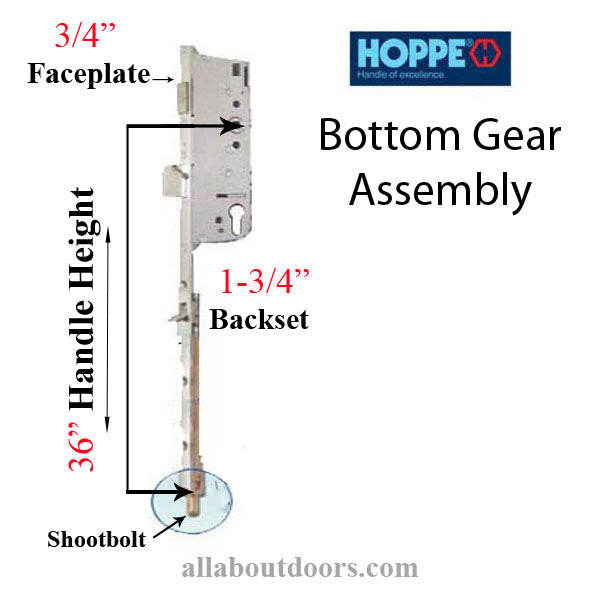

This Hoppe bottom gear assembly features a manual shootbolt design with a 20mm (3/4 inch) faceplate width. It is designed for multipoint lock systems and includes a 1-3/4 inch (45mm) backset with a 1 inch (25.4mm) deadbolt throw.

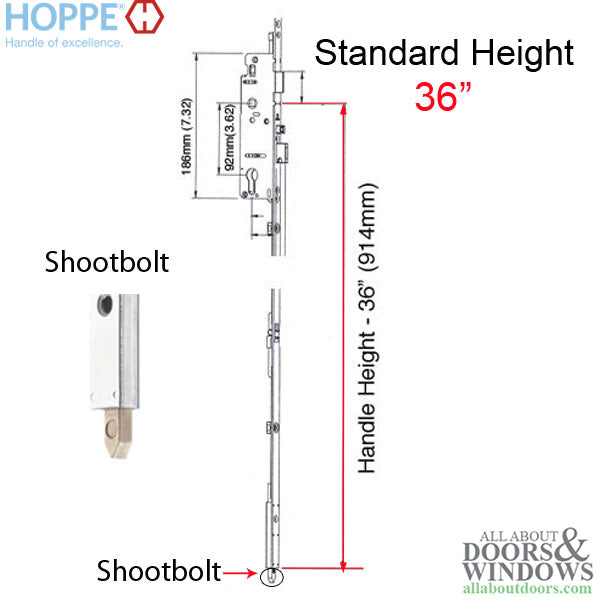

The handle height measures 36 inches (914mm), making it suitable for standard door configurations. This is the bottom gear assembly only and includes 6 mounting screws.

Technical Information

  • Faceplate Width: 3/4 inches (20mm)
  • Backset: 1-3/4 inches (45mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handle Height: 36 inches (914mm)
  • Number of Screws: 6
  • Type: Manual Shootbolt

Notes

  • Bottom gear assembly only
  • Max cutoff: N/A

Related Parts

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is a bottom gear assembly?

A bottom gear assembly is the lower component of a multipoint lock system that contains the shootbolt mechanism to secure the bottom of the door into the frame.

How do I measure my backset?

Measure from the edge of the door to the center of the handle bore hole. This product has a 1-3/4 inch (45mm) backset.

Is this a complete multipoint lock?

No, this is the bottom gear assembly only. You will need additional components such as the main lock body and top extension to complete the multipoint system.
