Hoppe 16mm Manual Tongue Gear – 35mm Backset, 92mm PZ, 29.65" Tongue

Hoppe 16mm Manual Tongue Gear – 35mm Backset, 92mm PZ, 29.65" Tongue

SKU: 2104217

$151.52 - $151.52
$151.52
$151.52 - $151.52
$151.52
  • PZ: 92mm (3-5/8")
  • Backset: 35mm (1-3/8")
  • Handle Height: 35-1/2" (902mm)
  • Tongue Position: 29.65" (753mm)
  • Faceplate: 5/8" (16mm) wide, Stainless Steel
  • Deadbolt Throw: 1" (25.4mm)
  • Center of Deadbolt to Center of Spring Latch: 33" to 36-5/8"
  • Operation: Manual function – lift handle, then turn thumbturn or key to extend deadbolt
  • Latch handing can be reversed with a small screwdriver
  • Bottom gear section (1 of 2 pieces for tongue version multipoint lock)
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe 16mm Manual Tongue Gear – 35/92 (2104217)

This Hoppe 16mm Manual Tongue Gear is the bottom gear section for a tongue version multipoint lock system. It is designed to work as one of two pieces in a complete multipoint lock assembly, providing reliable security for your entry door.

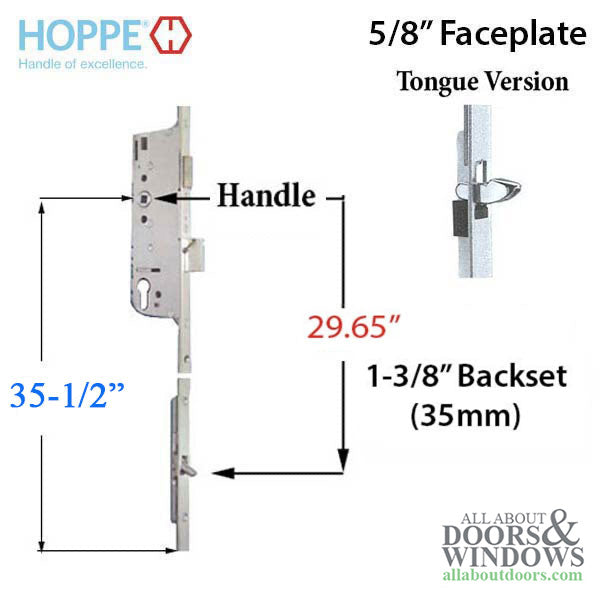

The lock features a 35mm (1-3/8 inches) backset and 92mm (3-5/8 inches) PZ measurement. The handle height is 35-1/2 inches (902mm), with the tongue positioned at 29.65 inches (753mm) from the bottom. The stainless steel faceplate measures 5/8 inches (16mm) wide, and the deadbolt provides a 1-inch throw for secure locking.

To lock the door, lift the handle and then turn the thumbturn or key to extend the deadbolt. To unlock, turn the thumbturn or key and then depress the lever. The latch handing can be reversed by inserting a small screwdriver into the small hole on the back of the latch, pushing forward, twisting the latch, and releasing.

Technical Information

  • Backset: 35mm (1-3/8 inches)
  • PZ (Handle Center to Keyhole Center): 92mm (3-5/8 inches)
  • Handle Height: 35-1/2 inches (902mm)
  • Tongue Position: 29.65 inches (753mm)
  • Faceplate Width: 16mm (5/8 inches)
  • Faceplate Material: Stainless Steel
  • Deadbolt Throw: 1 inch (25.4mm)
  • Center of Deadbolt: 33 inches
  • Center of Spring Latch: 36-5/8 inches
  • Operation: Manual

Notes

  • Bottom gear section – 1 of 2 pieces for tongue version multipoint lock
  • Can also be used with standard 36-inch handle height by cutting off 1/2 inch as needed

Replaces / Replaced by

  • Replaces some FUHR locks

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the latch handing on this lock?

Insert a small screwdriver into the small hole on the back of the latch, push forward, twist the latch, and release.

What does PZ mean?

PZ refers to the distance from the center of the handle to the center of the keyhole (cylinder). This lock has a 92mm PZ measurement.

Is this a complete multipoint lock?

No, this is the bottom gear section and is one of two pieces needed for a complete tongue version multipoint lock system.
