Hoppe Bottom Gear for Multipoint Lock – 45mm Backset, 16mm Faceplate, 36" Handle Height

Hoppe Bottom Gear for Multipoint Lock – 45mm Backset, 16mm Faceplate, 36" Handle Height

SKU: 1997447

$213.62 - $213.62
$213.62
$213.62 - $213.62
$213.62
  • Type: Bottom Gear with shootbolt attached
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Shootbolt Throw: 25/32" (20mm)
  • Version: 16/20 Inactive
  • Part of 2-piece multipoint lock system
  • Requires 1 top extension and 1 cover plate to complete inactive shootbolt
  • Number of Screws: 9
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Bottom Gear – 16/20 Inactive (1997447)

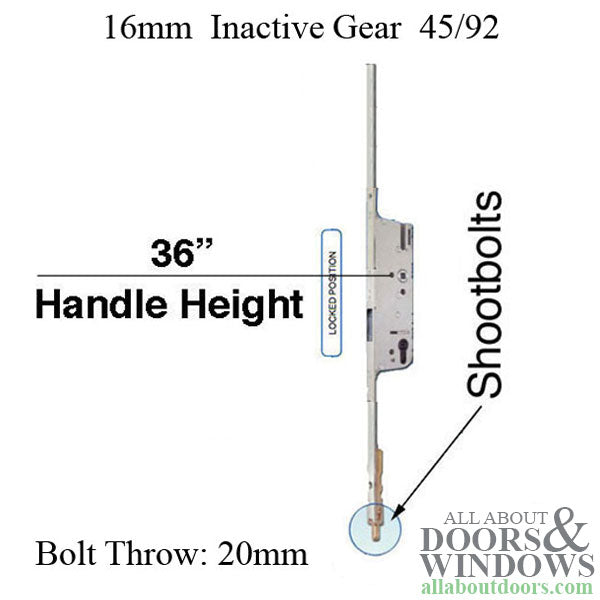

This Hoppe Bottom Gear is designed for the 16/20 Inactive version of 2-piece multipoint lock systems. It features an attached shootbolt with a 25/32 inch (20mm) throw, making it suitable for inactive door applications where shootbolt security is required.

This bottom gear is specifically designed for doors with a standard 36 inch (914mm) handle height. As part of a 2-piece system, you will need to purchase a top extension and cover plate separately to complete the inactive shootbolt assembly.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Handle Height: 36 inches (914mm)
  • Shootbolt Throw: 25/32 inches (20mm)
  • Number of Screws: 9
  • Type: Bottom Gear with shootbolt attached
  • Version: 16/20 Inactive

Notes

  • Part of 2-piece multipoint lock system
  • Requires 1 top extension and 1 cover plate to complete inactive shootbolt setup
  • Designed for standard 36 inch handle height configurations

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What additional parts do I need to complete the inactive shootbolt assembly?

You will need 1 top extension and 1 cover plate to complete the inactive shootbolt setup with this bottom gear.

What handle height is this bottom gear designed for?

This bottom gear is designed for doors with a standard 36 inch handle height.

What is the shootbolt throw on this bottom gear?

The shootbolt throw is 25/32 inches (20mm).
