Hoppe Upper Extension for HLS2000 – 16mm Faceplate, 48.28" Length

SKU: 12002264

$71.01 - $71.01

$71.01

$71.01 - $71.01

$71.01

Application: HLS2000 Tongue Upper Extension
Faceplate Width: 5/8" (16mm)

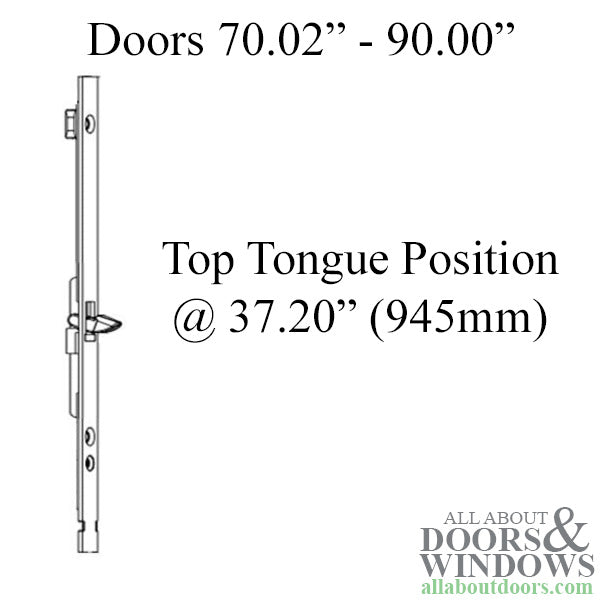

Top Tongue Position: 37.20" (945mm)
Extension Length: 48.28" (1226mm)
Overall Door Height: 70.02" to 90.00" (2007-2286mm)
Maximum Cutoff: 10.98" (279mm)
Material: Stainless Steel
Number of Screws: 5
Compatible only with the HLS2000 Series multipoint lock
Does not include bottom assembly with gearbox

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS2000 Top Extension (12002264)

This Hoppe upper extension is designed specifically for the HLS2000 multipoint lock system. It provides the top tongue mechanism for securing the upper portion of your door. Please note that this is the top extension only and does not include the bottom assembly with gearbox.

The extension features a stainless steel construction for durability and corrosion resistance. It can accommodate doors ranging from 70.02 to 90.00 inches (2007-2286mm) in overall height. When both upper and lower assemblies are connected, the system fits doors from 79.02 to 90.00 inches tall with a 36-inch handle height.

Technical Information

Faceplate Width: 5/8 inch (16mm)
Top Tongue Position: 37.20 inches (945mm)
Extension Length: 48.28 inches (1226mm)
Overall Door Height Range: 70.02 to 90.00 inches (2007-2286mm)
Maximum Cutoff: 10.98 inches (279mm)
Material: Stainless Steel
Number of Screws: 5

Notes

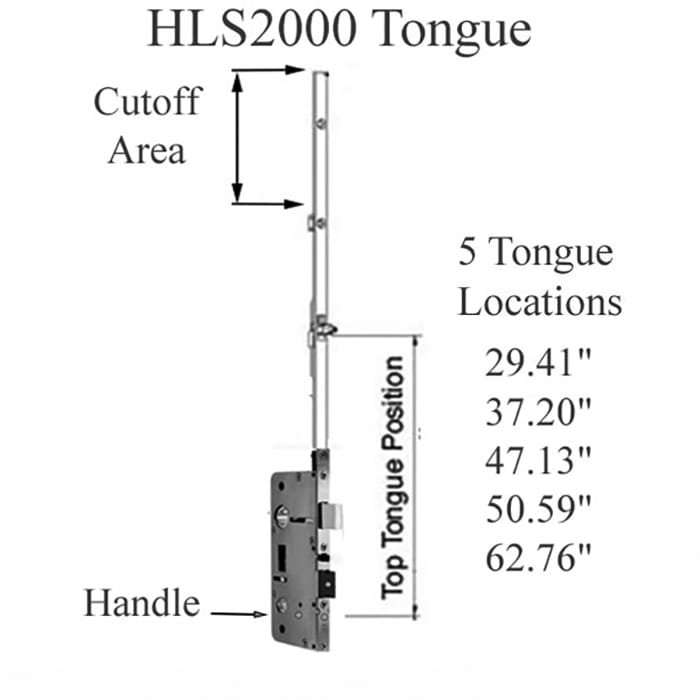

The top may be cut a maximum of 10.98 inches to adjust for different door heights
Compatible only with the Hoppe HLS2000 multipoint lock series

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this extension work with other Hoppe multipoint locks?

No, this upper extension is compatible only with the Hoppe HLS2000 series multipoint lock. It will not fit other Hoppe lock systems.

Can I cut this extension to fit my door?

Yes, the top may be cut a maximum of 10.98 inches (279mm) to adjust for different door heights.

Does this include everything I need for my HLS2000 lock?

No, this is the upper extension only. It does not include the bottom assembly with gearbox, which must be purchased separately.
