Hoppe HLS2000 Upper Extension – 16mm Faceplate, 66.28" Length

SKU: 12002252

$177.42 - $177.42

$177.42

$177.42 - $177.42

$177.42

Application: HLS2000 Tongue Upper Extension
Faceplate Width: 5/8" (16mm)
Top Tongue Position: 50.59" (1285mm)
Extension Length: 66.28" (1683mm)
Door Height Range: 92.02" to 108" (2337-2743mm)
Maximum Cutoff: 15.98" (406mm)
Material: Stainless Steel
Number of Screws: 7
Compatible only with HLS2000 Series multipoint locks
Does not include bottom assembly with gearbox
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS2000 Upper Extension (12002252)

This Hoppe top extension is designed specifically for the HLS2000 multipoint lock series. It serves as the upper extension component and does not include the bottom assembly with gearbox, which must be purchased separately.

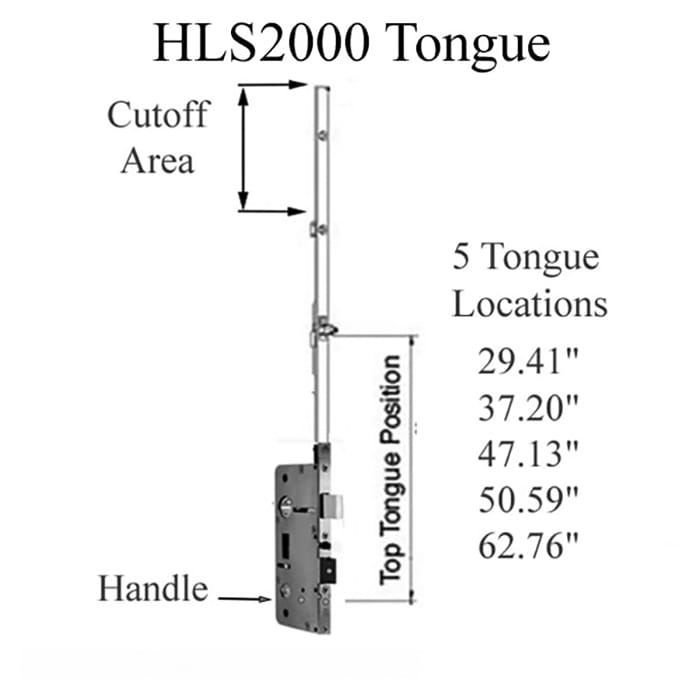

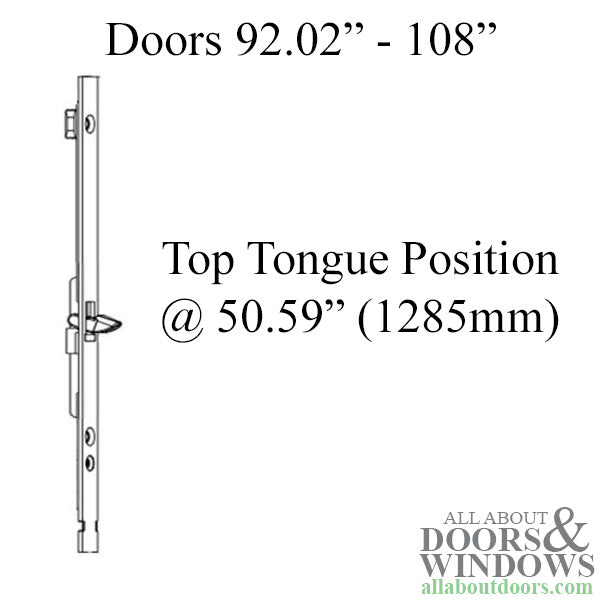

The extension features a 5/8 inch (16mm) faceplate width and measures 66.28 inches (1683mm) in total length. The top tongue is positioned at 50.59 inches (1285mm) from the bottom of the extension. This component accommodates doors ranging from 92.02 to 108 inches (2337-2743mm) in overall height when paired with the lower assembly.

For installation flexibility, the top of this extension can be cut up to a maximum of 15.98 inches (406mm) to adjust for different door heights. When both upper and lower assemblies are connected, the system fits doors from 92.02 to 108 inches tall with a 36 inch handle height.

Technical Information

Application: HLS2000 Tongue Upper Extension
Faceplate Width: 5/8 inch (16mm)
Top Tongue Position: 50.59 inches (1285mm)
Extension Length: 66.28 inches (1683mm)
Door Height Range: 92.02 to 108 inches (2337-2743mm)
Maximum Cutoff: 15.98 inches (406mm)
Material: Stainless Steel
Number of Screws: 7

Notes

Compatible only with the Hoppe HLS2000 multipoint lock series
Does not include bottom assembly with gearbox
When paired with lower assembly, fits doors 92.02-108 inches tall with 36 inch handle height

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door heights does this upper extension fit?

When paired with the lower assembly, this extension fits doors from 92.02 to 108 inches tall with a 36 inch handle height.

Can I cut this extension to fit my door?

Yes, the top of this extension can be cut up to a maximum of 15.98 inches to adjust for different door heights.

Does this include the complete multipoint lock system?

No, this is only the upper extension. The bottom assembly with gearbox must be purchased separately and is only compatible with the Hoppe HLS2000 series.
