Hoppe Upper Extension for HLS2000 – 16mm Faceplate, 54.27" Length

SKU: 11972750

$116.06 - $116.06

$116.06

$116.06 - $116.06

$116.06

Application: HLS2000 Tongue Upper Extension
Faceplate Width: 5/8" (16mm)
Top Tongue Position: 47.13" (1197mm)
Extension Length: 54.27" (1378mm)
Door Height Range: 88.12" to 95.99" (2238-2438mm)
Maximum Cutoff: 7.87" (200mm)

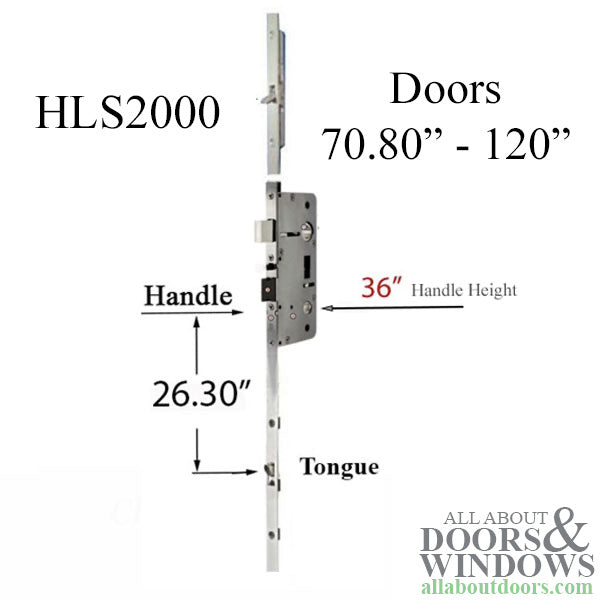

Handle Height: 36" (914mm) when paired with lower assembly
Material: Stainless Steel
Number of Screws: 6
Compatible only with HLS2000 Series multipoint locks
Does not include bottom assembly with gearbox
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS2000 Upper Extension (11972750)

This Hoppe upper extension is designed specifically for the HLS2000 series multipoint lock system. It provides the top locking mechanism for taller doors, working in conjunction with the lower assembly and gearbox (sold separately) to create a complete multipoint locking solution.

The extension measures 54.27 inches in overall length with a top tongue position at 47.13 inches. It features a 5/8-inch (16mm) wide stainless steel faceplate and includes 6 mounting screws. When paired with the corresponding lower assembly, this extension accommodates doors ranging from 88.12 to 95.99 inches tall with a 36-inch handle height.

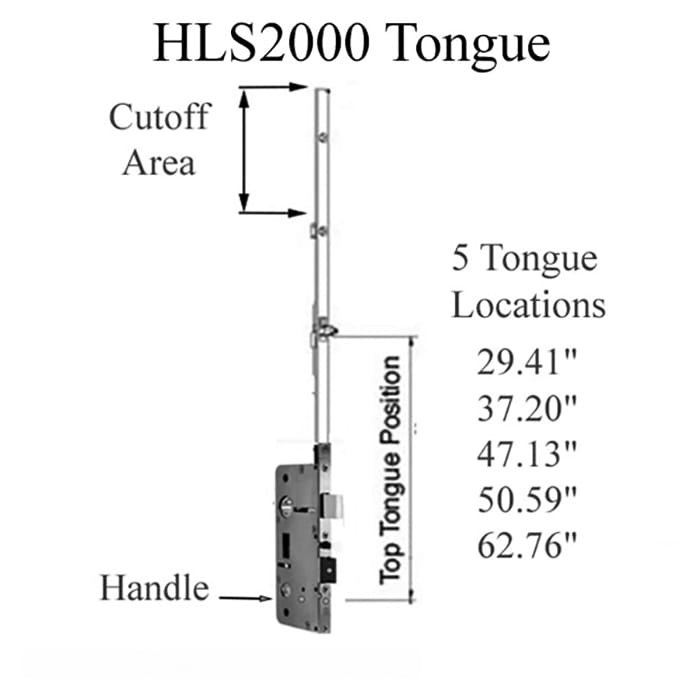

For doors on the shorter end of the compatible range, the top of the extension can be cut down by up to 7.87 inches to achieve the proper fit.

Technical Information

Faceplate Width: 5/8 inch (16mm)
Top Tongue Position: 47.13 inches (1197mm)
Extension Length: 54.27 inches (1378mm)
Compatible Door Height: 88.12 to 95.99 inches (2238-2438mm)
Maximum Cutoff: 7.87 inches (200mm)
Handle Height: 36 inches (when used with lower assembly)
Material: Stainless Steel
Mounting Screws: 6

Notes

This upper extension is compatible only with Hoppe HLS2000 series multipoint locks
Does not include the bottom assembly with gearbox
Both upper and lower assemblies are required for complete door coverage

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this extension include the gearbox?

No, this is the upper extension only. The bottom assembly with gearbox must be purchased separately.

What door heights does this extension fit?

When paired with the lower assembly, this extension fits doors from 88.12 to 95.99 inches tall with a 36-inch handle height.

Can I cut this extension to fit a shorter door?

Yes, the top of the extension can be cut by up to 7.87 inches to accommodate different door heights within the compatible range.
