20mm HOPPE Top Shootbolt Extensions for HLS9000 Multipoint Locks

Hoppe 20mm Top Shootbolt Extensions for HLS9000 Multipoint Locks

The HLS9000 series from Hoppe represents one of the most widely installed European-style multipoint lock systems in North America. When the upper shootbolt mechanism needs replacement or when building a custom multipoint assembly, finding the correct extension with the right faceplate width is essential. MPLocks carries these 20mm top shootbolt extensions alongside operational guides to help homeowners and professionals maintain their multipoint door systems properly. These components integrate seamlessly with existing HLS9000 hardware, ensuring continued security and smooth operation.

Stainless Steel Construction for Long-Term Durability

Each Hoppe top shootbolt extension is manufactured from stainless steel, providing excellent resistance to corrosion and wear. This material choice is particularly important for entry door applications where the hardware faces temperature fluctuations, humidity, and daily use. The included mounting screws ensure a secure fit within the door edge, and the 21.65 inch length accommodates most standard door heights while offering the flexibility to trim up to 3.94 inches for custom sizing requirements.

Complete Your HLS9000 Shootbolt System

Top extensions work in conjunction with the main lock case and bottom gear to create a complete multipoint locking system. The shootbolt design engages into strike plates at the top of the door frame, distributing the locking force across multiple points for enhanced security. This collection also includes operational stickers in both left-hand and right-hand configurations, providing clear English-language instructions for proper lock operation directly on the door surface.

• Hoppe Shootbolt Multipoint Lock Systems
• HLS9000 20mm Shootbolt Complete Assemblies
• Hoppe Shootbolt Strike Plates

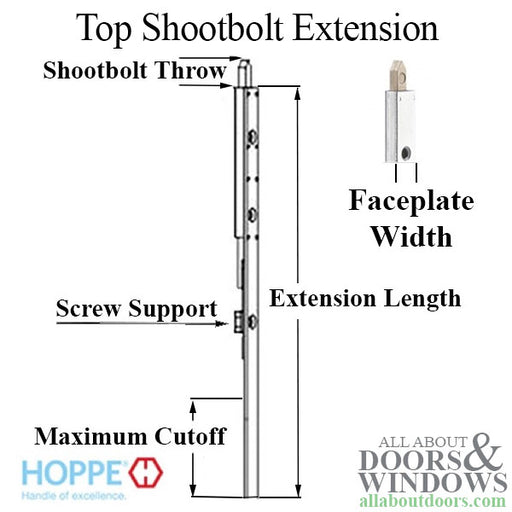

Measuring and Sizing Your Top Extension

Before ordering, confirm your existing lock system uses a 20mm (3/4 inch) wide faceplate—this measurement is taken across the metal strip visible on the door edge. The 20mm width is distinct from the narrower 16mm faceplate found on other HLS9000 configurations, and mixing widths will prevent proper installation. If your door requires a shorter extension, these units can be field-cut from the top end, but always measure twice before trimming to ensure the shootbolt still reaches the frame strike properly.

Need help confirming whether this extension matches your existing Hoppe multipoint system? Call our team at (816) 221-6543 to speak with a specialist who can review your door specifications. You can also use our free Multipoint Lock Identifier to submit details about your current hardware for expert review and replacement recommendations.
