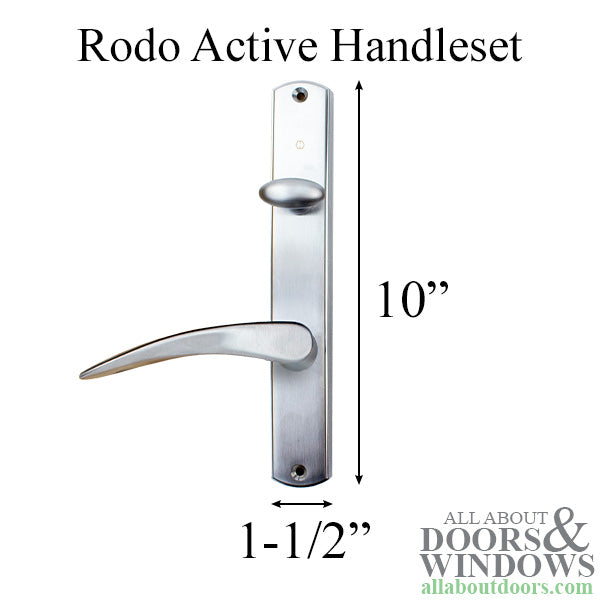

Hoppe Rodo Active Handle Set for 2-1/4" Doors – Offset Lock, Brushed Chrome

Hoppe Rodo Active Handle Set for 2-1/4" Doors – Offset Lock, Brushed Chrome

SKU 3048721

$371.79 - $371.79
$371.79
$371.79 - $371.79
$371.79
  • Door Thickness: 2-1/4" (57mm)
  • Cylinder Type: American cylinder (Schlage 5-pin SC1)
  • Tailpiece: 1-13/16" (46.5mm) and 3" (76.5mm)
  • Spindle Diameter: 5/16" (8mm)
  • Short Spindle: 2-1/2" (62.5mm)
  • Long Spindle: 3" (76.25mm)
  • Cylinder Height: 1-1/16" (27mm)
  • Cylinder Retainer Pin: 7:00 position
  • Screw Length: 2-3/4" (70mm)
  • Finish: Brushed Chrome (F41-R)

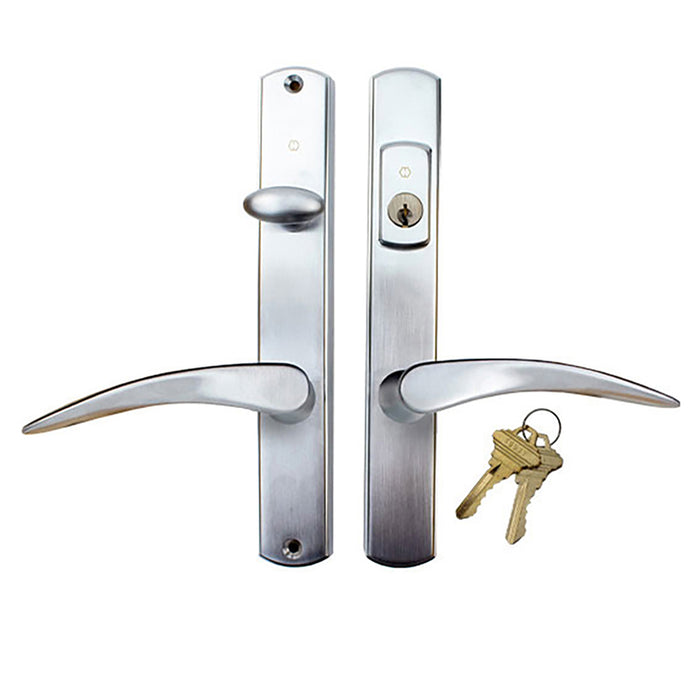

  • Complete active handle set with key/M-knob configuration
  • Offset shafts: 8x62.5mm and 8x76.25mm
  • Compatible with Kawneer 2.25" offset doors
  • Uses HOPPE quick-fit connection
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Rodo Active Handle Set – Brushed Chrome (3048721)

This Hoppe Rodo HLS7 complete active handle set is designed for 2-1/4 inch thick doors with offset multipoint locks. It features a key/M-knob configuration with lever swing door handles on both sides, utilizing HOPPE's quick-fit connection system for easy installation.

The handle set is specifically compatible with Kawneer 2.25 inch offset doors and uses a standard American cylinder (Schlage 5-pin SC1) with a 46.5mm tailpiece. The offset shaft design includes two spindles: one at 8x62.5mm and one at 8x76.25mm, allowing for proper alignment with offset lock configurations.

Technical Information

  • Door Thickness: 2-1/4 inches (57mm)
  • Tailpiece Options: 1-13/16 inches (46.5mm) and 3 inches (76.5mm)
  • Spindle Diameter: 5/16 inches (8mm)
  • Short Spindle Length: 2-1/2 inches (62.5mm)
  • Long Spindle Length: 3 inches (76.25mm)
  • Cylinder Type: American cylinder (Schlage 5-pin SC1)
  • Cylinder Height: 1-1/16 inches (27mm)
  • Cylinder Retainer Pin Position: 7:00
  • Screw Length: 2-3/4 inches (70mm)
  • Finish: Brushed Chrome Resista (F41-R)
  • Original Manufacturer SKU: M1603/2167NZS/KM

Notes

  • Lock may be centered in door or offset
  • Full cylinder configuration with 90 degrees turn
  • Keyed alike option
  • Includes gasket

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder type does this handle set use?

This handle set uses a standard American cylinder (Schlage 5-pin SC1) with a 46.5mm tailpiece.

Can this lock be installed centered or offset in the door?

Yes, the lock may be installed either centered in the door or in an offset position.

What door thickness is this handle set designed for?

This handle set is designed for 2-1/4 inch (57mm) thick doors, specifically compatible with Kawneer 2.25 inch offset doors.
