Hoppe Inactive Door Lower Assembly – 35mm Backset, 36" Handle Height

Hoppe Inactive Door Lower Assembly – 35mm Backset, 36" Handle Height

SKU: 2074564

$213.62 - $213.62
$213.62
$213.62 - $213.62
$213.62
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Shootbolt Throw: 3/4" (20mm)
  • Application: Secondary inactive door 2-point lock
  • Has hole for deadbolt but not spring latch
  • Requires minimum 3/4" wide astragal
  • Lower assembly only – upper extension required to complete lock
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Inactive Lower Assembly – 35mm Backset (2074564)

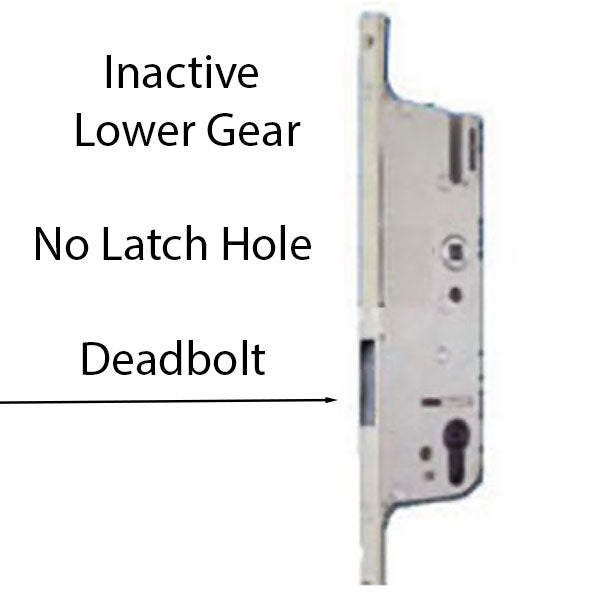

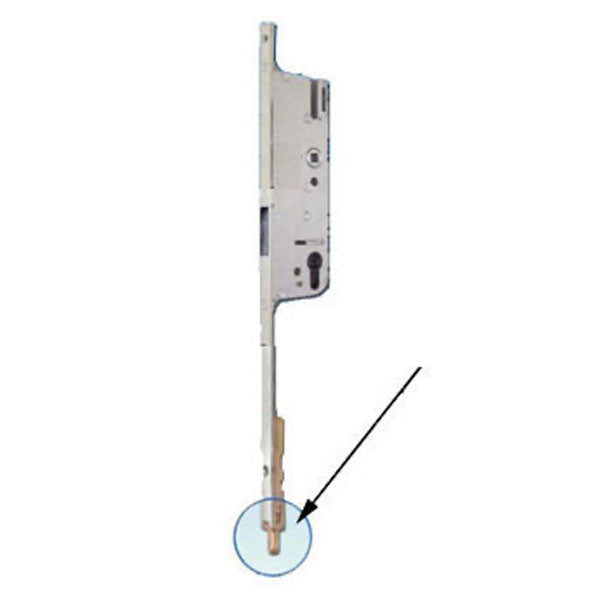

This Hoppe inactive/passive door lower assembly is designed for secondary inactive doors in a 2-point locking system. The assembly features a 1-3/8 inch gear mechanism with a bottom shootbolt for secure multi-point locking.

The inactive assembly includes a hole for a deadbolt but does not accommodate a spring latch, making it specifically suited for the passive side of double door configurations. This lock requires a minimum 3/4 inch wide astragal for proper installation.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Shootbolt Throw: 3/4 inch (20mm)
  • Application: Secondary inactive door 2-point lock

Notes

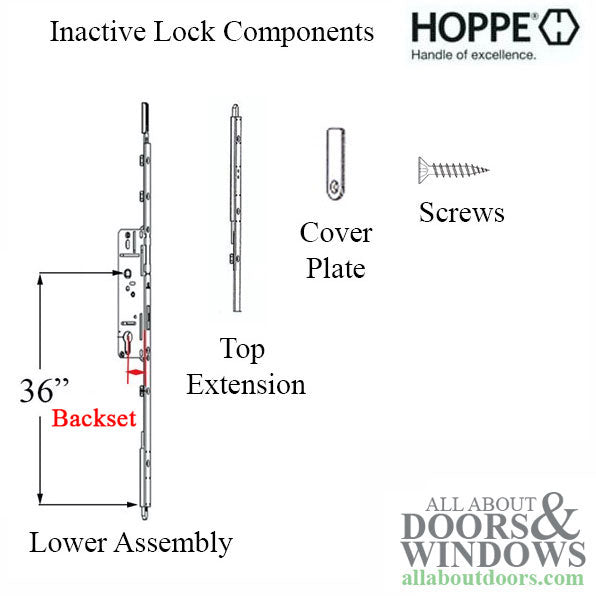

  • This is the lower assembly only – an upper extension is required to complete the lock
  • Upper extensions are available in assorted lengths to match your door panel height

Related Parts

  • 2875118 - 5/8 inch wide cover plate for connection
  • 8785695 - 1-3/8 inch (35mm) stainless steel installation screw
  • 2024962 - Brass socket strike for 1 inch throw shootbolt

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Do I need additional parts to complete this lock?

Yes, this is the lower assembly only. You will need an upper extension to complete the 2-point lock system. Upper extensions are available in various lengths to match your door height.

What is the difference between an inactive and active door assembly?

The inactive assembly is designed for the secondary door in a double door configuration. It has a hole for a deadbolt but not a spring latch, as the active door handles the primary latching function.

What size astragal do I need for this lock?

This lock requires a minimum 3/4 inch wide astragal for proper installation.
