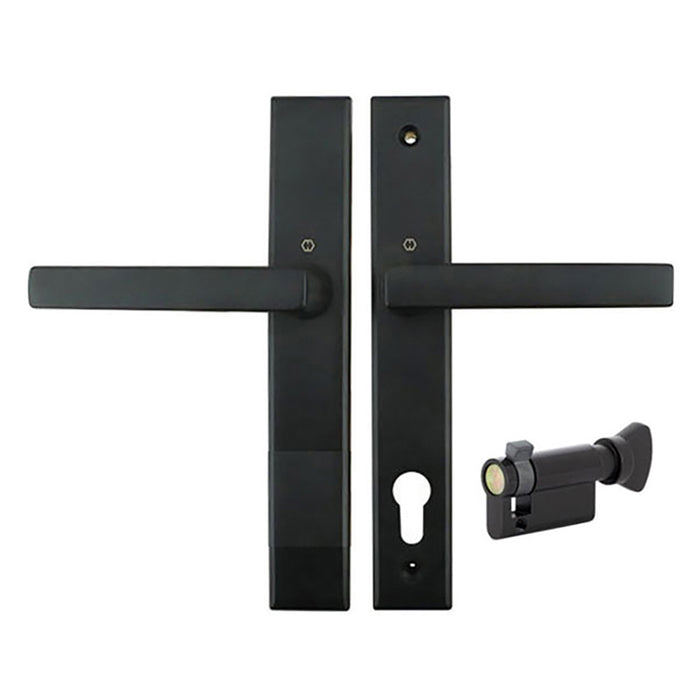

Hoppe Dallas Inactive Handleset – 92mm PZ, Matte Black

Hoppe Dallas Inactive Handleset – 92mm PZ, Matte Black

SKU 11687855

$259.86 - $259.86
$259.86
$259.86 - $259.86
$259.86
  • PZ: 92mm (3-5/8")
  • Cylinder: 40.5/10mm with V-Knob
  • Function: Inactive (half cylinder)
  • Door Thickness: Fits 2-1/4" (57mm) or 2-3/8" (60mm) doors
  • Spindle: 5/16" x 5-1/2" (8mm x 140mm)
  • Escutcheon Plate: 9-7/16" x 1-1/2" (240mm x 38mm)
  • Screw Hole Centers: 8-5/8" (219mm)
  • Finish: Matte Black (F9714M)
  • Material: Brass
  • Style: Contemporary / Modern
  • Dallas Quick-Fit lever handles use spring tension – no set-screw required
  • Special removal tool included with handleset
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Dallas Inactive Handleset – 92mm PZ, Matte Black (11687855)

The Hoppe Dallas Inactive Handleset is designed for multipoint lock doors requiring an inactive or secondary handle. This contemporary-style handleset features the M1643 lever on the 2161N back plate, finished in Matte Black (F9714M). The Dallas Series is known for its straight, modern lines that provide a sleek, contemporary aesthetic to any entryway.

This inactive handleset includes a 40.5/10mm cylinder with V-Knob, making it suitable for doors where keyed entry is not required on this side. The handle-to-cylinder PZ measurement is 92mm (3-5/8 inches), which is a common European standard for multipoint lock systems.

The Dallas Quick-Fit lever handles feature a unique spring tension mounting system rather than traditional set-screws. A special removal tool is included with the handleset for installation and removal. The lever handle has a hole in the shaft designed for this tool – not for a set-screw. This handleset uses a dedicated Dallas spindle measuring 5/16 x 5-1/2 inches (8mm x 140mm).

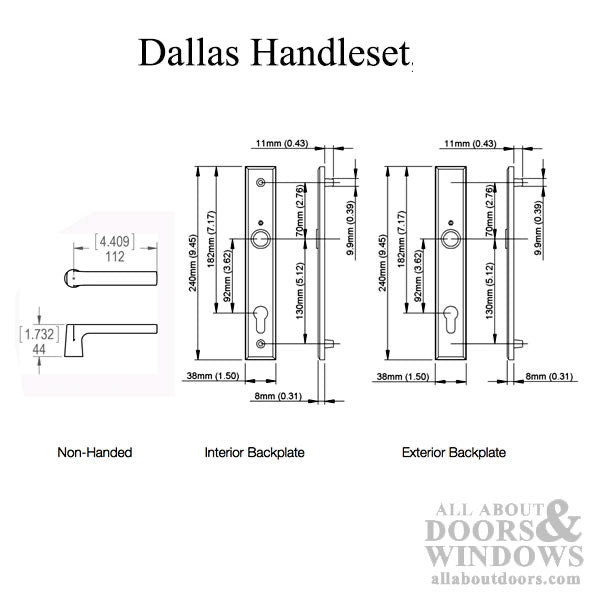

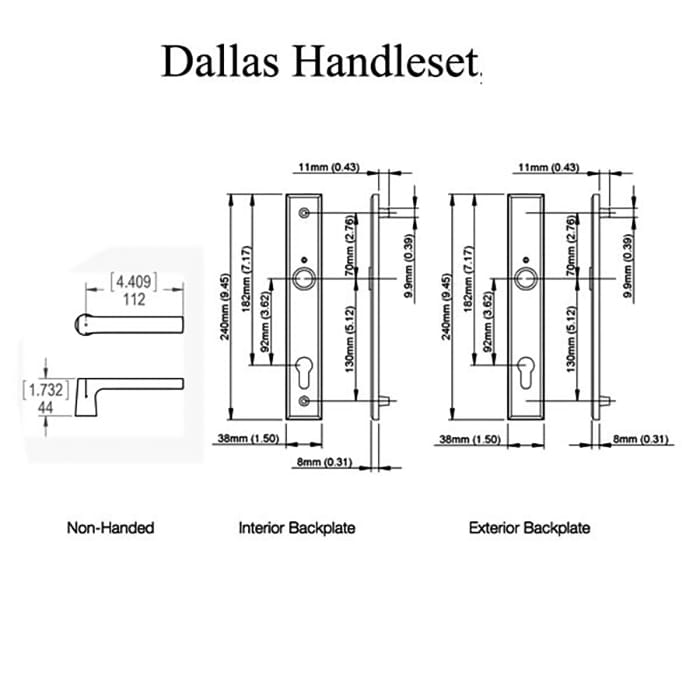

Technical Information

  • Lever Model: M1643
  • Back Plate Model: 2161N
  • PZ (Handle to Cylinder Center): 92mm (3-5/8 inches)

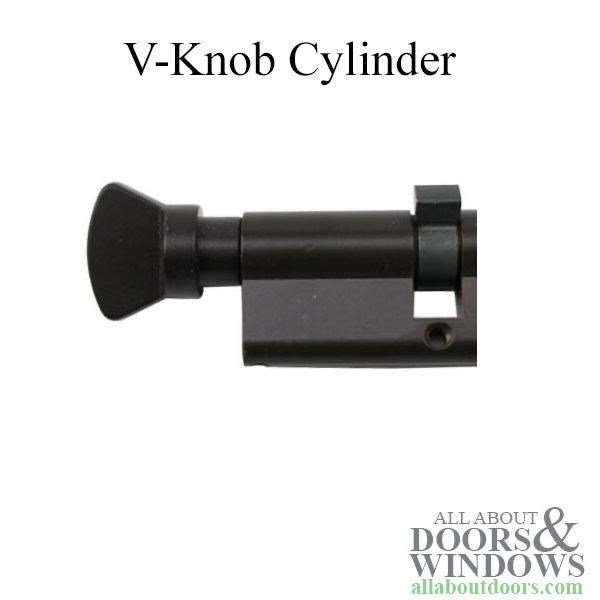

  • Cylinder: 40.5/10mm with V-Knob
  • Spindle: 8mm x 140mm (5/16 x 5-1/2 inches)
  • Door Thickness: 2-1/4 or 2-3/8 inches (57mm or 60mm)
  • Escutcheon Plate Length: 9-7/16 inches (240mm)
  • Escutcheon Plate Width: 1-1/2 inches (38mm)
  • Screw Hole Centers: 8-5/8 inches (219mm)
  • Material: Brass
  • Finish: Matte Black (F9714M)

Notes

  • Dallas Series also available in Polished Brass, Satin Nickel, and Dark Bronze Metallic
  • Available functions include Active with keyed cylinder, Inactive with half cylinder, and Dummy Fixed Pair
  • Dallas handlesets use a unique spindle not interchangeable with other Hoppe series

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ, which is a common European standard measurement.

How do I remove the Dallas lever handle?

Dallas Quick-Fit levers use spring tension instead of set-screws. Use the special removal tool included with the handleset – insert it into the hole in the lever shaft to release the spring tension.

What is the difference between active and inactive handlesets?

An active handleset includes a full keyed cylinder for locking and unlocking from the outside. An inactive handleset has a half cylinder or V-Knob and is typically used on the secondary door of a double-door entry.
