Hoppe Verona Active Handleset Trim for Offset Multipoint Lock – 92mm PZ, Brushed Stainless Steel

Hoppe Verona Active Handleset Trim for Offset Multipoint Lock – 92mm PZ, Brushed Stainless Steel

SKU 11501790

$461.77 - $461.77
$461.77
$461.77 - $461.77
$461.77
  • PZ: 92mm (3-5/8")
  • Door Thickness: 2-1/4" (57mm)
  • Escutcheon Plate: 9" x 1-3/4" (230mm x 44mm), radius top
  • Lever Projection: 2-3/8" (60mm)
  • Screw Spacing: Top to bottom 7-7/8" (200mm)
  • Cylinder: Euro profile, special size 3-1/2" (90mm) total length
  • Cylinder Breakdown: Thumb side 2-3/16" (55mm), Key side 1-5/16" (35mm)
  • Material: Stainless Steel
  • Finish: Brushed Stainless Steel
  • For offset multipoint locks (mortise lock offset to outside, not centered)
  • Includes 3 installation screws (4M5 x 65mm)
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Verona Active Handleset – 92mm PZ, Brushed SS (11501790)

The Hoppe Verona E1800F/353/KE active handleset trim is designed for 2-1/4 inch thick doors equipped with offset multipoint locks. This handleset features elegant radius-top escutcheon plates and the popular Verona lever design in a durable brushed stainless steel finish.

This is a special configuration designed for doors where the mortise lock is offset to the outside rather than centered. The handleset accommodates a euro profile cylinder with a special size requirement: 3-1/2 inches (90mm) total length, with 2-3/16 inches (55mm) on the thumb turn side and 1-5/16 inches (35mm) on the key side.

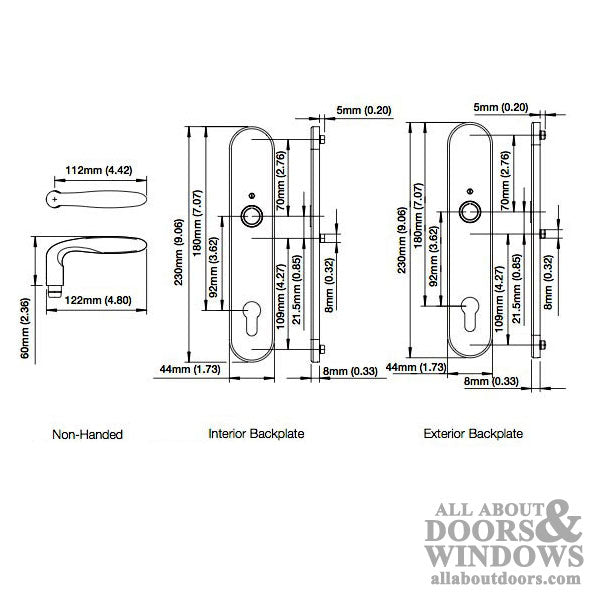

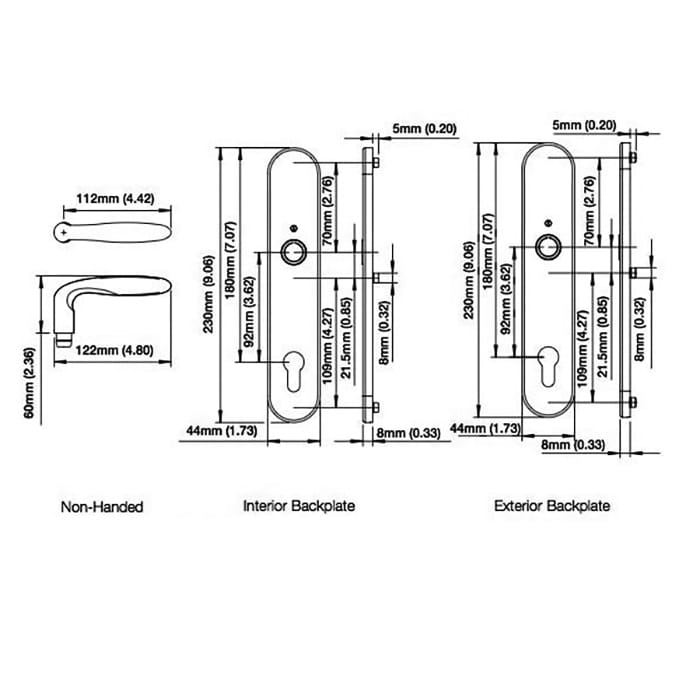

Technical Information

  • Model: E1800F/353/KE
  • PZ (Center to Center): 3-5/8 inches (92mm)
  • Door Thickness: 2-1/4 inches (57mm)
  • Escutcheon Plate Length: 9 inches (230mm)
  • Escutcheon Plate Width: 1-3/4 inches (44mm)
  • Plate Thickness: 5/16 inch (8mm)
  • Lever Projection: 2-3/8 inches (60mm)
  • Top Screw to Handle: 2-3/4 inches (70mm)
  • Bottom Screw Hole to Center Screw: 4-1/4 inches (109mm)
  • Top Screw to Bottom Screw: 7-7/8 inches (200mm)
  • Cylinder Type: Euro profile, special size
  • Cylinder Length: 3-1/2 inches (90mm)
  • Material: Stainless Steel
  • Finish: Brushed Stainless Steel
  • Installation Screws: 3 - 4M5 x 65mm (included)

Notes

  • Designed for offset multipoint locks where the mortise lock is offset to the outside, not centered in the door
  • Passivated finish treatment makes the surface inactive or less reactive for enhanced durability

Related Parts

  • 3122337 - Cover Plate with Cylinder Hole, Stainless Steel
  • 3280941 - Verona Levers, Brushed Stainless Steel (passivated)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ measurement mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

Why does this handleset require a special cylinder size?

This handleset is designed for offset multipoint locks where the mortise lock is not centered in the door. The special 90mm cylinder (55mm thumb side, 35mm key side) accommodates this offset configuration.

What type of cylinder does this handleset use?

This handleset uses a euro profile cylinder in a special size: 3-1/2 inches (90mm) total length, with 2-3/16 inches on the thumb turn side and 1-5/16 inches on the key side.
