HOPPE 16mm Manual Two-Roller Bottom Gear — Euro Multipoint Lock Part

HOPPE HLS9000 Manual Two Roller Bottom Gear Replacement Parts

The HOPPE 16mm manual two roller bottom gear serves as the foundation of many European-style multipoint locking systems found on residential entry doors throughout North America. These bottom gear assemblies integrate the lockbox with a lower extension featuring one roller, designed to work in tandem with a single-roller top extension for complete door security. MPLocks carries these precision-engineered components in multiple backset configurations to match your existing door preparation, ensuring you can restore full functionality to your multipoint system without costly door modifications.

Manual Lift-to-Lock Operation for Reliable Security

These HOPPE bottom gear assemblies feature manual operation, meaning the lever must be lifted to engage the rollers into the strike plate. Once the rollers are extended, turning the thumbturn or key secures them in the locked position. This two-step engagement provides positive confirmation that your door is fully secured. The manual design is preferred in many applications for its tactile feedback and proven reliability compared to automatic-locking mechanisms.

Available in 35mm and 45mm Backset Configurations

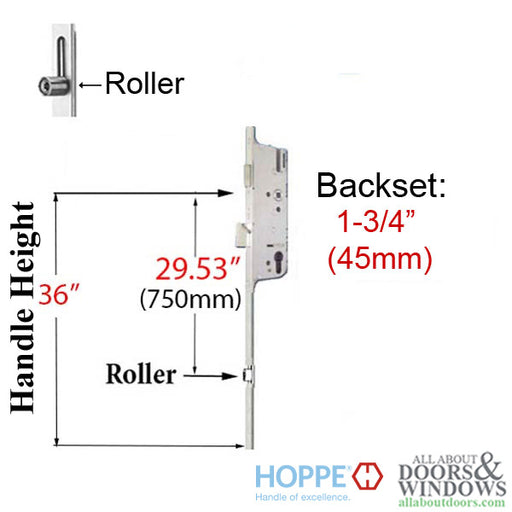

Selecting the correct backset is essential for proper installation and operation. This collection includes bottom gear units in both 1-3/8 inch (35mm) and 1-3/4 inch (45mm) backset measurements to accommodate different door preparations. The 5/8 inch (16mm) faceplate width is standard across all units, and the 36-inch handle height positioning matches most residential door applications. Each unit specifies the exact roller position and deadbolt throw dimensions for precise replacement matching.

• HOPPE Roller Multipoint Lock Hardware
• HOPPE 16mm Auto Two Roller Bottom Gear
• HOPPE 16mm Two Roller Top Extensions

Measuring for the Correct Bottom Gear Replacement

Before ordering, measure your existing bottom gear's backset from the edge of the door to the center of the keyhole or thumbturn. Verify the faceplate width matches the 16mm specification, and note the handle height from the bottom of the faceplate to the spindle center. If your current lock uses automatic engagement rather than manual lift-to-lock operation, you may need a different bottom gear series. Taking photos of your existing hardware and noting any part numbers stamped on the faceplate will help confirm compatibility.

Finding the right bottom gear for your HOPPE multipoint system is straightforward when you have the correct measurements. If you need help confirming compatibility or identifying your lock, call our team at (816) 221-6543 to speak with an expert, or submit your lock details through our free Multipoint Lock Identifier for personalized recommendations.
