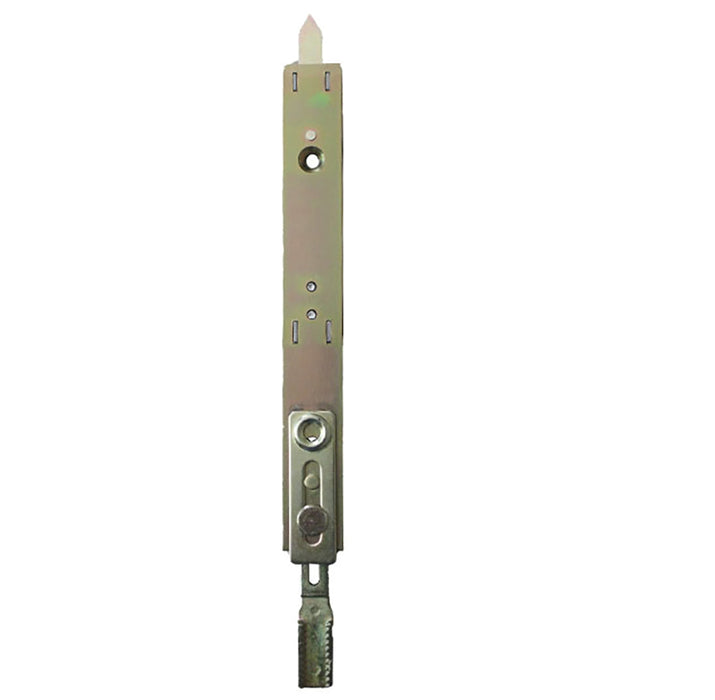

Upper Shootbolt Extension Tip for Multipoint Locks – 20mm Faceplate, Yellow Dichromate

Upper Shootbolt Extension Tip for Multipoint Locks – 20mm Faceplate, Yellow Dichromate

SKU: G-17567-SB

$14.95 - $14.95
$14.95
$14.95 - $14.95
$14.95
  • Type: Upper Shootbolt Extension Tip for Multipoint Locks
  • Faceplate Width: 13/16" (20mm)
  • Faceplate Length: 6-1/4" (158.8mm)
  • Finish: Yellow Dichromate (YDI)
  • Application: Active or Inactive Door
  • Replaces old style G-U multipoint lock shootbolt tips
  • Compatible with Superior Door and similar applications
  • Some shootbolts marked with E16744
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Upper Shootbolt Extension Tip – 20mm Faceplate (G-17567-SB)

This upper shootbolt extension tip is designed as a replacement for old style G-U multipoint locks. It features a yellow dichromate finish and is compatible with Superior Door systems and other doors using the original G-U multipoint lock configuration.

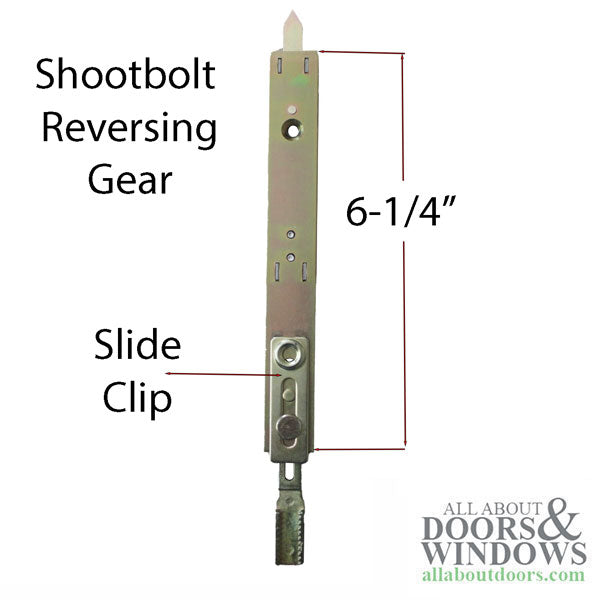

The shootbolt tip operates with a reversing gear mechanism that extends the tip when the bottom receptacle with serrated teeth is pulled down. This design ensures reliable engagement with the door frame for secure locking.

Stamped With

  • Some shootbolts marked: E16744

Technical Information

  • Faceplate Width: 13/16 inches (20mm)
  • Faceplate Length: 6-1/4 inches (158.8mm)
  • Finish: Yellow Dichromate (YDI)
  • Application: Active or Inactive Door

Notes

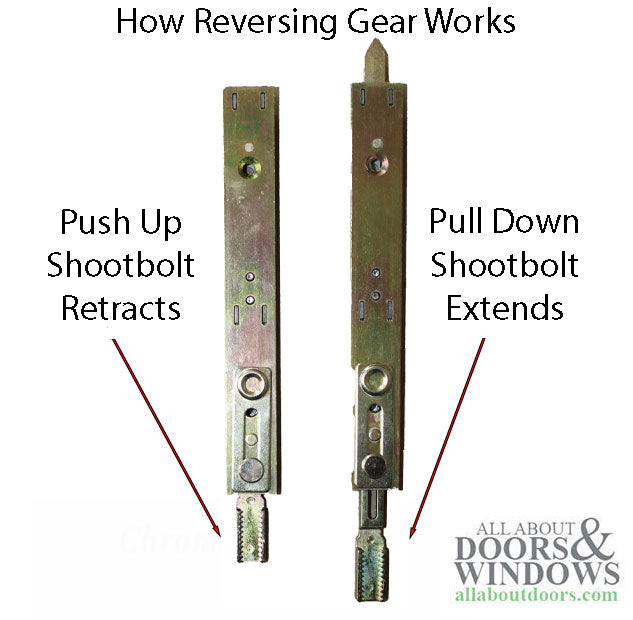

  • A reversing gear extends the shootbolt tip when the bottom receptacle with serrated teeth is pulled down
  • This shootbolt tip extension should replace any old style G-U multipoint locks

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How does the shootbolt extension tip operate?

The shootbolt tip uses a reversing gear mechanism that extends the tip when the bottom receptacle with serrated teeth is pulled down.

Will this fit my old G-U multipoint lock?

This shootbolt tip extension is designed to replace old style G-U multipoint locks and is compatible with Superior Door and similar applications.

What does the yellow dichromate finish mean?

Yellow dichromate is a corrosion-resistant zinc plating that provides durability and a distinctive gold-yellow appearance, commonly used on older G-U hardware.
