GU Multipoint Lock with Shootbolts – 50mm Backset, 92mm PZ, 35" Handle Height

GU Multipoint Lock with Shootbolts – 50mm Backset, 92mm PZ, 35" Handle Height

SKU G-17567-LC

$235.00 - $235.00
$235.00
$235.00 - $235.00
$235.00
  • PZ: 92mm (3-5/8")
  • Backset: 50mm (2")
  • Faceplate Width: 20mm (3/4")
  • Handle Height: 35" (889mm)
  • Overall Length: 74-3/4" (1899mm)
  • Fits Doors Up To: 81" (2057mm)
  • Cylinder Type: American
  • Faceplate Color: Yellow Dichromate (YDI)
  • Application: Active door, 3-point lock with shootbolts
  • Stamped: G.2C250 (on some locks)
  • Replaces old-style GU multipoint locks on Superior Doors and others
  • Will NOT replace new-style GU locks
  • Reuse existing screws – screws not included
Currently out of stock. Expecting stock availability by end the end of the month (September).
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU 20/50/92 Multipoint Lock with Shootbolts (G-17567-LC)

This aftermarket multipoint lock is designed as a direct replacement for old-style GU multipoint locks found on Superior Doors and similar applications. Featuring a 3-point locking system with shootbolts, this active door lock provides reliable security for your entry door.

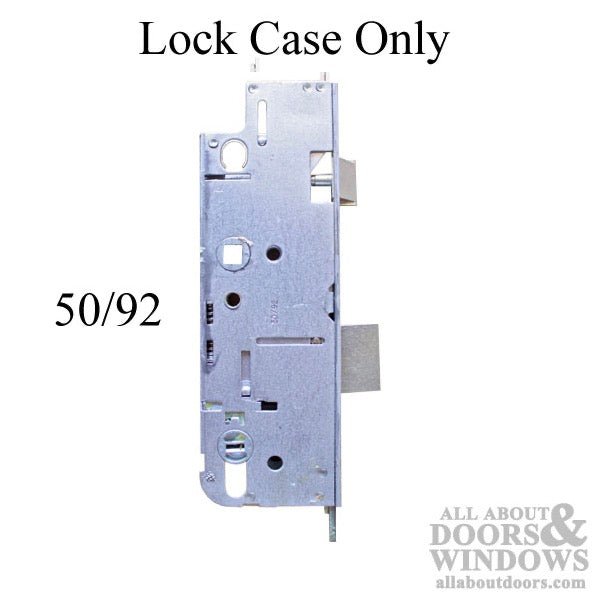

The lock case has a 50mm (2 inch) backset and 92mm PZ spacing, with a 20mm (3/4 inch) faceplate width. The overall length is 74-3/4 inches, making it suitable for doors up to 81 inches tall. The handle height measures 35 inches from the bottom of the faceplate.

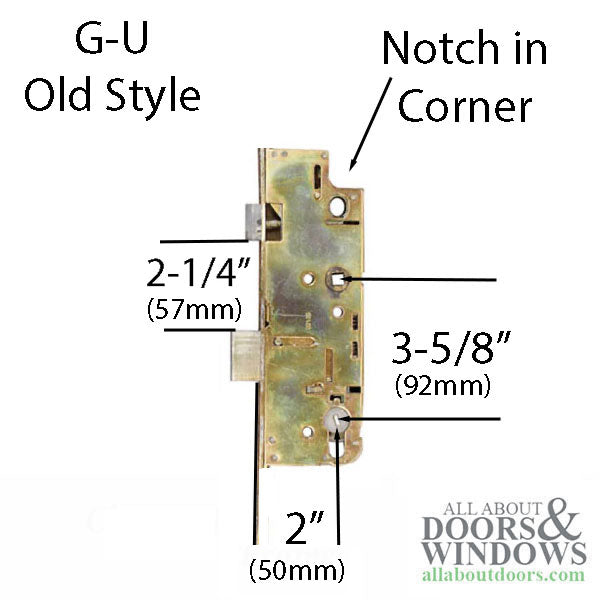

This lock uses an American cylinder and features a yellow dichromate (YDI) finish on the faceplate. Please note that this lock case is only compatible with old-style GU multipoint locks and will NOT work with new-style GU locks. Check the additional images to confirm your lock style before ordering.

Stamped With

  • G.2C250 (on some locks)

Technical Information

  • PZ (Handle to Cylinder Center): 92mm
  • Backset: 50mm (2 inches)
  • Faceplate Width: 20mm (3/4 inch)
  • Handle Height: 35 inches (889mm)
  • Overall Length: 74-3/4 inches (1899mm)
  • Maximum Door Height: 81 inches (2057mm)
  • Cylinder Type: American
  • Faceplate Finish: Yellow Dichromate (YDI)
  • Lock Points: 3-point with shootbolts

Notes

  • Aftermarket replacement for old-style GU multipoint locks
  • Compatible with Superior Doors and similar applications
  • Will NOT replace new-style GU locks – verify your lock style before ordering
  • Screws not included – reuse your existing hardware

Replaces / Replaced by

  • Old-style GU multipoint locks (2 inch backset version)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

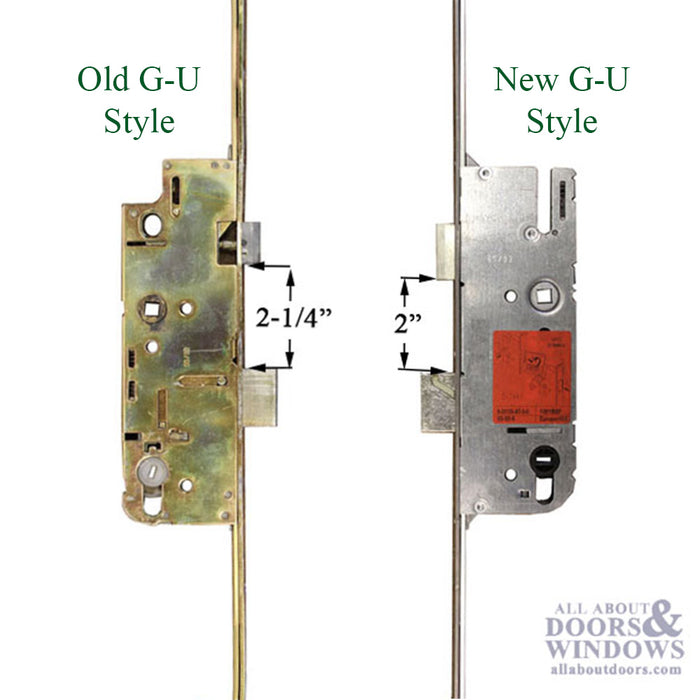

How do I know if I have an old-style or new-style GU lock?

Check the additional product images to compare your existing lock. The old-style locks have a different internal mechanism and faceplate design than the new-style versions.

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ measurement.

Are mounting screws included with this lock?

No, screws are not included. You should reuse your existing screws from the old lock being replaced.
