GU Ferco Middle Extension with Roller Pin – 16mm Faceplate, 500mm Length

GU Ferco Middle Extension with Roller Pin – 16mm Faceplate, 500mm Length

SKU G-16790-06-0-FG

$22.08 - $22.08
$22.08
$22.08 - $22.08
$22.08
  • Faceplate Width: 5/8" (16mm)
  • Extension Length: 19-5/8" (500mm)
  • Maximum Cutoff: 10" (250mm)
  • Finish: Ferguard Silver
  • Features roller pin for secure engagement
  • For doors greater than 81" (2060mm)
  • Doors over 101" (2565mm) require two extensions
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Ferco Middle Extension with Roller Pin (G-16790-06-0)

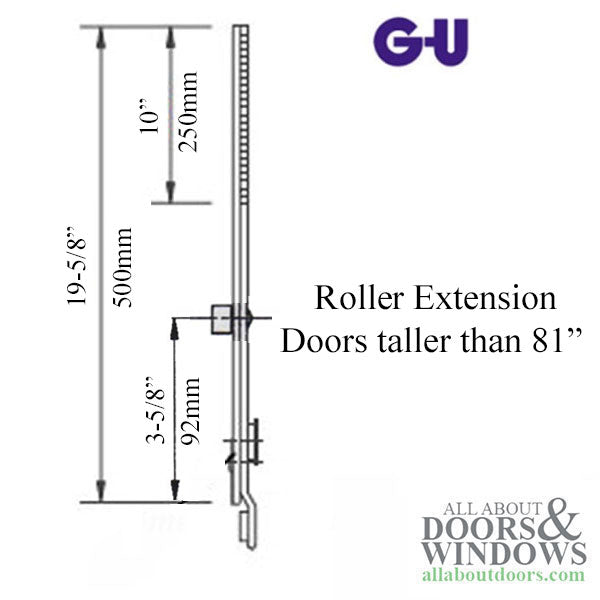

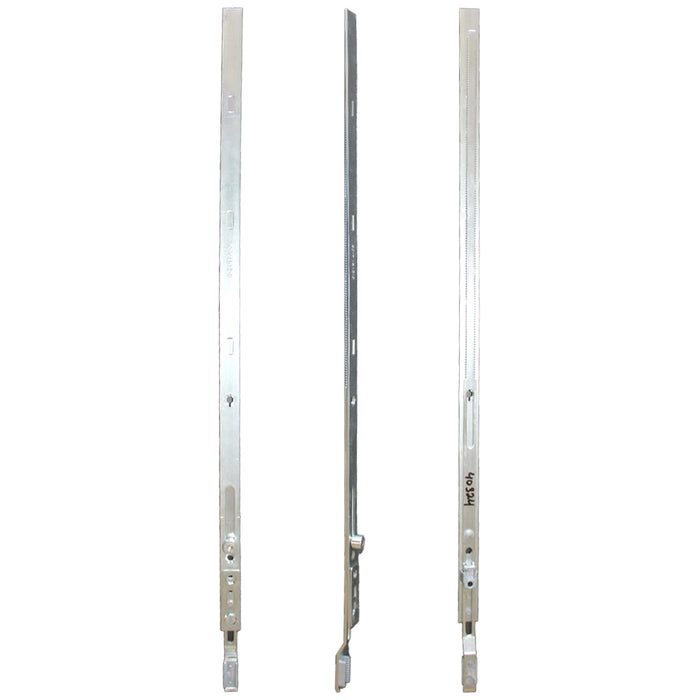

This GU Ferco middle extension with roller pin is designed for multipoint lock systems on doors greater than 81 inches in height. The extension features a Ferguard Silver finish and includes a roller pin for reliable locking engagement.

The extension measures 19-5/8 inches (500mm) in length with a maximum cutoff allowance of 10 inches (250mm), giving you flexibility during installation. The 5/8 inch (16mm) faceplate width matches standard GU Ferco multipoint lock systems.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Extension Length: 19-5/8 inches (500mm)
  • Maximum Cutoff: 10 inches (250mm)
  • Finish: Ferguard Silver

Notes

  • For doors greater than 81 inches (2060mm) in height
  • Basic Gear 1900mm + top shootbolt 160mm = 2060mm (81.10 inches)
  • Extension 500mm + 2060mm standard = 2560mm (100.787 inches)
  • Doors over 101 inches require two extensions

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door height requires this extension?

This middle extension is designed for doors greater than 81 inches in height. The standard basic gear plus top shootbolt covers doors up to 81 inches.

How many extensions do I need for doors over 101 inches?

Doors over 101 inches in height require two extensions to provide adequate coverage for the multipoint lock system.

How much can I cut off this extension during installation?

The maximum cutoff allowance is 10 inches (250mm), allowing flexibility to fit your specific door height requirements.
