GU Cremona Shootbolt 2-Point Mortise Lock for Passive Doors – 55mm Backset, 92mm PZ

GU Cremona Shootbolt 2-Point Mortise Lock for Passive Doors – 55mm Backset, 92mm PZ

SKU 6-UI270-55-0-SS

$265.47 - $265.47
$265.47
$265.47 - $265.47
$265.47
  • PZ: 92mm
  • Backset: 2-3/16" (55mm)
  • Handle Height: 35" (889mm)
  • Length: 74.80" (1900mm)
  • Faceplate Width: 16mm
  • Key Position: Below handle
  • Finish: Stainless Steel
  • Cylinder Type: American
  • 2-point mortise lock with fixed bottom shootbolt for passive doors
  • Lock case may be stamped with 55/92
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

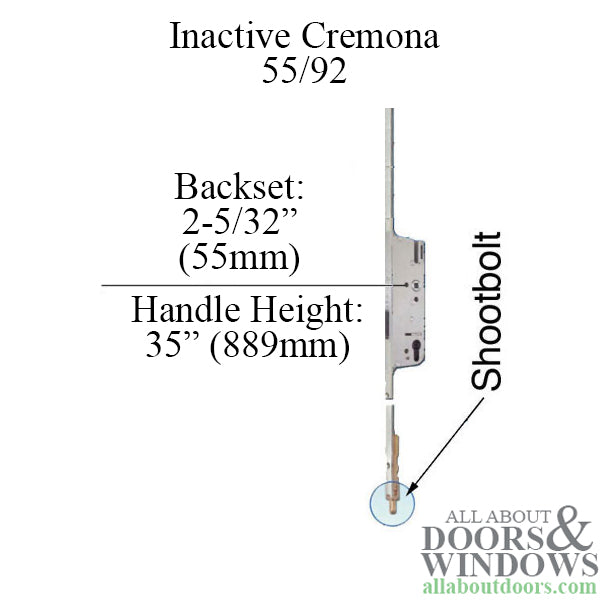

GU Cremona Shootbolt Lock – 55/92, SS (6-UI270-55-0-SS)

This GU Cremona Shootbolt is a 2-point mortise lock designed for passive doors with a fixed bottom shootbolt. It provides secure locking at two points along the door edge, making it ideal for multipoint door systems where the passive leaf needs reliable engagement.

The lock features a 55mm backset and 92mm PZ (handle center to cylinder center), with the key positioned below the handle. The handle height measures 35 inches (889mm) from the bottom of the faceplate, and the total length is 74.80 inches (1900mm). The 16mm faceplate width fits standard European-style door preparations.

Finished in stainless steel for durability and corrosion resistance, this lock uses an American-type cylinder for keying.

Stamped With

  • Lock case may be stamped with 55/92

Technical Information

  • PZ: 92mm
  • Backset: 55mm (2-3/16 inches)
  • Handle Height: 35 inches (889mm)
  • Overall Length: 74.80 inches (1900mm)
  • Faceplate Width: 16mm
  • Key Position: Below handle
  • Cylinder Type: American
  • Locking Points: 2
  • Door Type: Passive door

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does 55/92 mean on this lock?

The 55/92 refers to the backset (55mm) and PZ measurement (92mm). The PZ is the distance from the center of the handle to the center of the key cylinder.

What is a passive door?

A passive door is the fixed or stationary leaf in a double door system. It typically remains closed and latches into the frame or floor, while the active door is used for regular entry and exit.

What cylinder type does this lock require?

This lock uses an American-type cylinder, which is the standard cylinder format used in North American door hardware.
