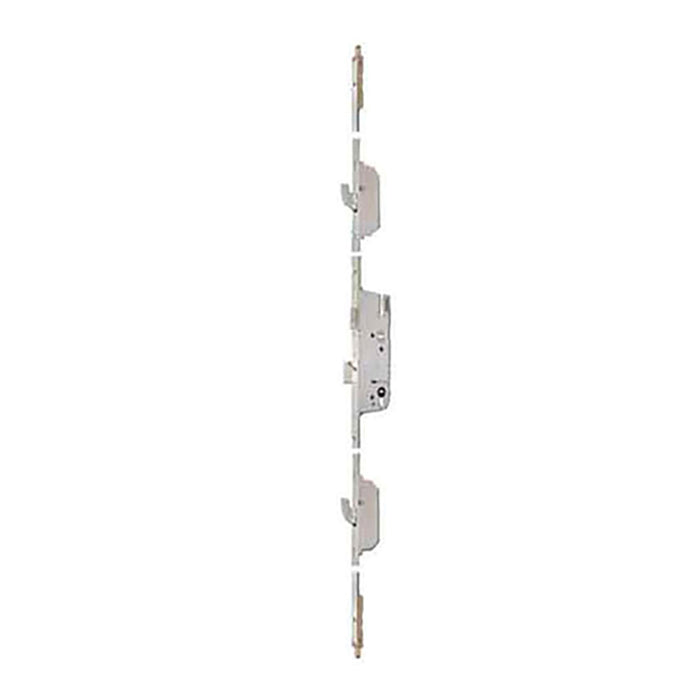

G-U/Ferco Active Multipoint Lock Kit – 30mm Backset, 92mm PZ, 35" Handle Height

G-U/Ferco Active Multipoint Lock Kit – 30mm Backset, 92mm PZ, 35" Handle Height

SKU 6-UA416-30-0-8-KIT

$295.00 - $295.00
$295.00
$295.00 - $295.00
$295.00
  • PZ: 3-5/8" (92mm)
  • Backset: 1-3/16" (30mm)
  • Handle Height: 35" (889mm)
  • Faceplate Width: 5/8" (16mm)
  • Overall Length: 79-1/4" (2060mm) – can be cut for shorter doors
  • Handle to Top Hook: 22-3/8" (568mm) center to center
  • Handle to Bottom Hook: 25-15/16" (659mm) center to center
  • Cylinder Type: American cylinder with flat tailpiece
  • Lock Body Style: Europa – key below handle
  • Faceplate Finish: Stainless Steel
  • Kit Includes: 2 Rhino hook-bolts, 2 shoot-bolts, 1 deadbolt, 20 stainless steel screws
  • Fits door panels up to 90" (2286mm) tall
  • Priced and sold as a kit
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

G-U/Ferco Active Multipoint Lock Kit – 30/92 (6-UA416-30-0-8-KIT)

This G-U/Ferco active multipoint lock kit provides a complete locking solution for multipoint door systems. The Europa-style lock body features key below handle configuration and is designed for doors up to 90 inches tall. For taller door panels, extensions can be purchased separately.

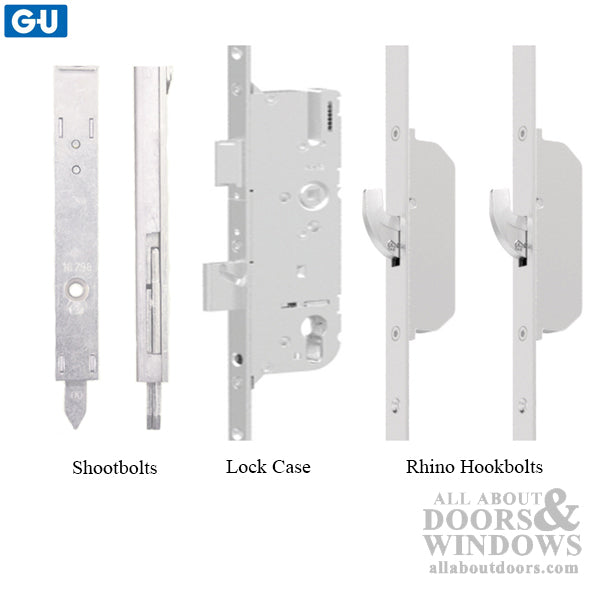

The kit includes everything needed for installation: 2 Rhino hook-bolts, 2 shoot-bolts, 1 deadbolt, and 20 stainless steel screws. The gear can be cut to accommodate shorter door heights, offering flexibility for various door sizes.

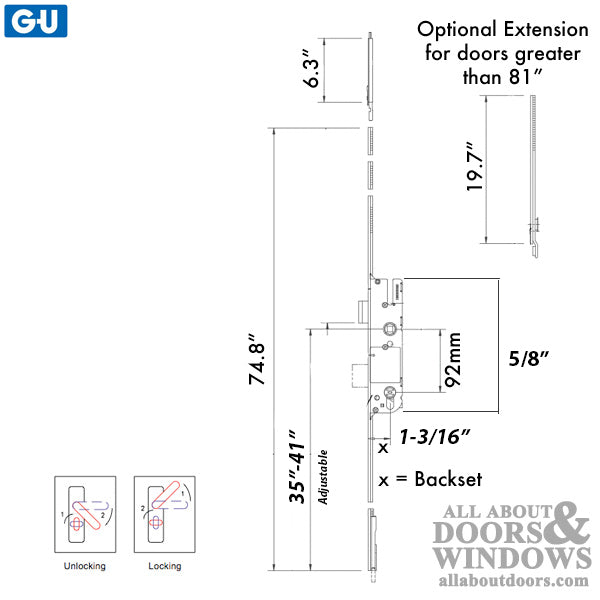

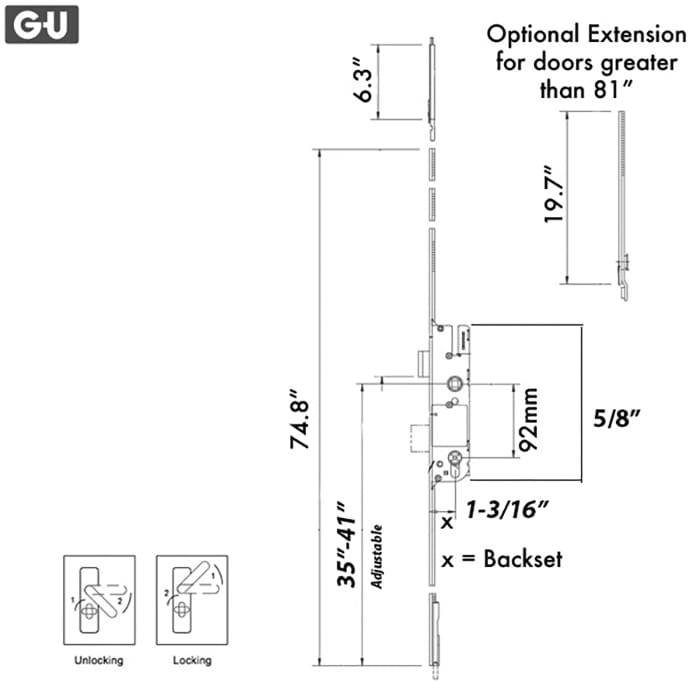

Technical Information

  • PZ (Handle Center to Cylinder Center): 3-5/8 inches (92mm)
  • Backset: 1-3/16 inches (30mm)
  • Handle Height: 35 inches (889mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Overall Length: 79-1/4 inches (2060mm)
  • Handle to Top Hook: 22-3/8 inches (568mm) – measured center to center
  • Handle to Bottom Hook: 25-15/16 inches (659mm) – measured center to center
  • Cylinder Type: American cylinder with flat tailpiece
  • Lock Body Style: Europa – key below handle
  • Faceplate Finish: Stainless Steel

Notes

  • Fits door panels up to 90 inches tall
  • For door panels greater than 90 inches, extensions can be purchased separately – contact our office for ordering information
  • Gear can be cut to accommodate shorter door heights

Priced and sold as a kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is included in this multipoint lock kit?

The kit includes 2 Rhino hook-bolts, 2 shoot-bolts, 1 deadbolt, and 20 stainless steel screws for complete installation.

Can this lock be used on doors taller than 90 inches?

The kit fits doors up to 90 inches tall. For taller doors, extensions can be purchased separately by contacting our office.

What type of cylinder does this lock use?

This lock uses an American cylinder with a flat tailpiece, with the key positioned below the handle (Europa style).
