GU Rhino Hook Bolt Multipoint Lock – 50mm Backset, 92mm PZ, Silver Ferguard

GU Rhino Hook Bolt Multipoint Lock – 50mm Backset, 92mm PZ, Silver Ferguard

SKU 6-UA400-50-1-FG

$317.14 - $317.14
$317.14
$317.14 - $317.14
$317.14

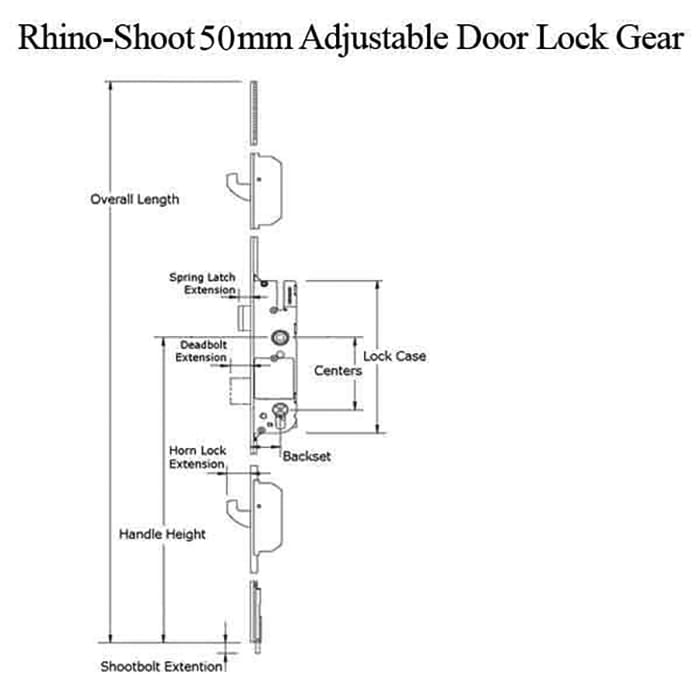

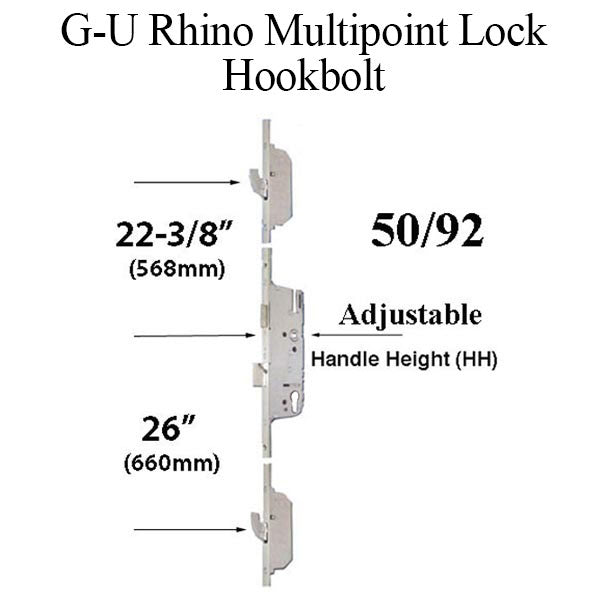

  • PZ (Handle to Cylinder Center): 3-5/8" (92mm)
  • Backset: 2" (50mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Finish: Silver Ferguard
  • Spindle: 5/16" (8mm) Square
  • Handle Height: Adjustable up to 41" (1041mm), 35" (889mm) standard
  • Overall Length: 90" (2286mm)
  • Cylinder Version: Euro (American available)
  • Configuration: 3-point lock, expandable to 5-point with shootbolt extensions
  • Compatible with Europa 3, 4, or 5-point lock systems
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Rhino Hook Bolt Lock – 50/92, Ferguard (6-UA400-50-1-FG)

The GU Rhino Hook Bolt is a versatile multipoint lock designed for Europa 3, 4, or 5-point lock systems. This 3-point lock can be upgraded to a 5-point configuration by adding shootbolt extensions, providing enhanced security for your entry door.

Featuring a 2-inch (50mm) backset and 3-5/8-inch (92mm) PZ measurement, this lock body accommodates standard Euro profile cylinders, with American cylinder options available. The 5/8-inch (16mm) wide faceplate comes in a durable Silver Ferguard finish for corrosion resistance.

The handle height is adjustable up to 41 inches, with a standard setting of 35 inches (889mm). The overall length of 90 inches (2286mm) makes this suitable for full-height door applications. The lock uses a 5/16-inch (8mm) square spindle for handle operation.

Technical Information

  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Backset: 2 inches (50mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Faceplate Finish: Silver Ferguard
  • Spindle Size: 5/16 inches (8mm) Square
  • Handle Height: Adjustable up to 41 inches, 35 inches (889mm) standard
  • Overall Length: 90 inches (2286mm)
  • Cylinder Type: Euro profile (American available)
  • Lock Points: 3-point (expandable to 5-point)

Notes

  • Compatible with Europa 3, 4, or 5-point lock systems
  • Shootbolt extensions sold separately for 5-point configuration

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this 3-point lock be converted to a 5-point lock?

Yes, this GU Rhino Hook Bolt can be upgraded from a 3-point to a 5-point lock by adding shootbolt extensions, which are sold separately.

What cylinder type does this lock use?

This lock is designed for Euro profile cylinders as standard, but American cylinder versions are also available.

What does PZ measurement mean?

PZ refers to the distance from the center of the handle spindle hole to the center of the cylinder keyhole. This lock has a 92mm (3-5/8 inch) PZ measurement.
