GU Monolock Single Point Mortise Lock – 45mm Backset, 92mm PZ, Silver

SKU 6-C4873-45-0-SS

$125.24 - $125.24

$125.24

$125.24 - $125.24

$125.24

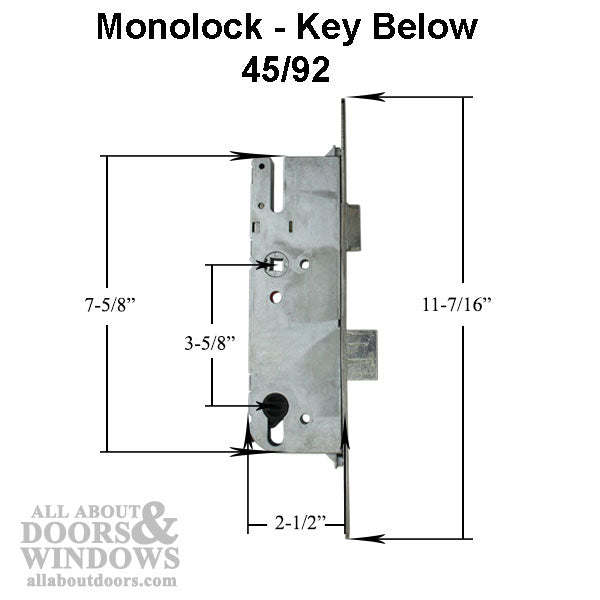

PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)
Faceplate Finish: Silver
Deadbolt Throw: 1" (25.4mm)

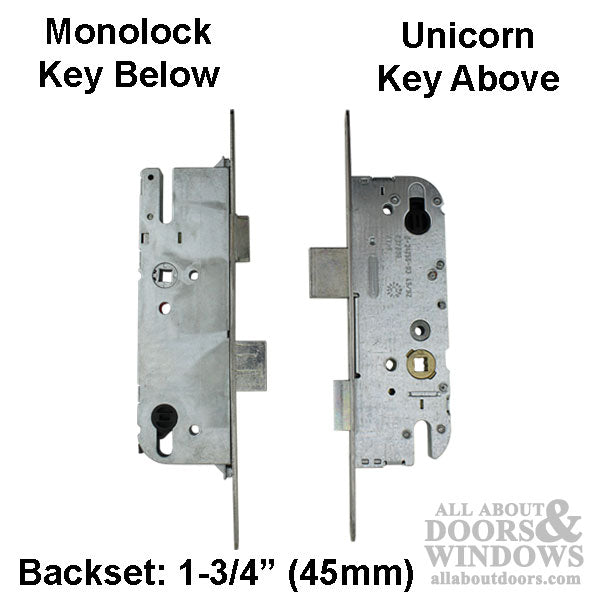

Handle Position: Key below handle (Europa)
Handle Height: Typically used with 35" (889mm) handle height
Cylinder Type: American cylinder system with 90° turn
Spindle Size: 8mm square

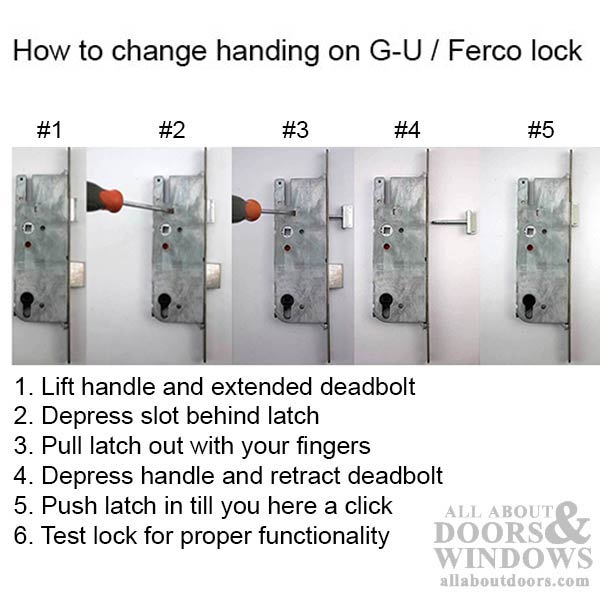

Non-handed design with easily reversible latch
Heavy duty mortise construction with reinforced lever return spring
Priced and sold each

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

GU Monolock Single Point Lock – 45/92, Silver (6-C4873-45-0-SS)

This GU Monolock single point mortise lock is designed for interior and exterior door applications. Part of the Europa Monolock series, this lock gear features a 1-3/4 inch (45mm) backset and 92mm PZ (handle to cylinder spacing), making it suitable for standard door configurations.

The lock operates with an American cylinder system requiring a 90-degree turn of the key or thumbturn. The deadbolt is positioned above the lever (US design), and the lever controls the release of both the deadbolt and latch. To lock the door, raise the handle, then use the key or thumbturn to secure the handles and keep the door locked.

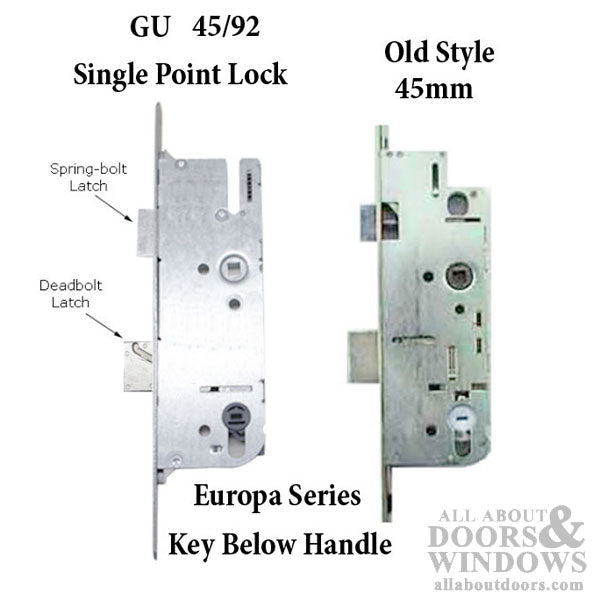

This unit includes only the spring latch and deadbolt mechanisms. It cannot be used to repair a multipoint lock system and will not replace older lock cases with different configurations.

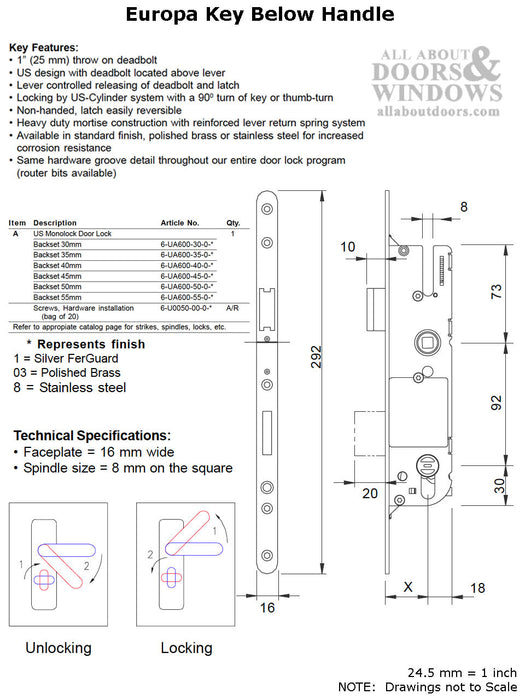

Technical Information

Series: Europa - Monolock
PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Silver
Deadbolt Throw: 1 inch (25.4mm)
Handle Position: Key below handle (Europa)
Handle Height: 35 inches (889mm) typical
Cylinder Type: American cylinder, 90° turn
Spindle Size: 8mm square
Handing: Non-handed, latch easily reversible

Notes

This lock cannot be used to repair a multipoint lock system
Will not replace older lock cases with slightly different designs
Contains only spring latch and deadbolt - no additional locking devices
Also available in stainless steel and polished brass finishes
Available in backsets: 35mm, 40mm, 45mm, 50mm, and 55mm
Router bits available for hardware groove detail

Related Parts

6-UA600-30-0-1 - GU Monolock, 30mm Backset
6-UA600-35-0-1 - GU Monolock, 35mm Backset
6-UA600-40-0-1 - GU Monolock, 40mm Backset
6-UA600-45-0-1 - GU Monolock, 45mm Backset
6-UA600-50-0-1 - GU Monolock, 50mm Backset
6-UA600-55-0-1 - GU Monolock, 55mm Backset

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used on both left and right-hand doors?

Yes, this lock is non-handed and the latch can be easily reversed to accommodate either door swing direction.

Can this lock replace my multipoint lock system?

No, this single point mortise lock cannot be used to repair or replace a multipoint lock system. It only includes a spring latch and deadbolt.

How do I lock the door with this system?

Raise the handle to extend the deadbolt, then use the key or thumbturn to secure the handles and keep the door locked.
