GU Monolock Single Point Lock – 35mm Backset, 92mm PZ, Silver

SKU 6-C4873-35-0-SS

$139.64 - $139.64

$139.64

$139.64 - $139.64

$139.64

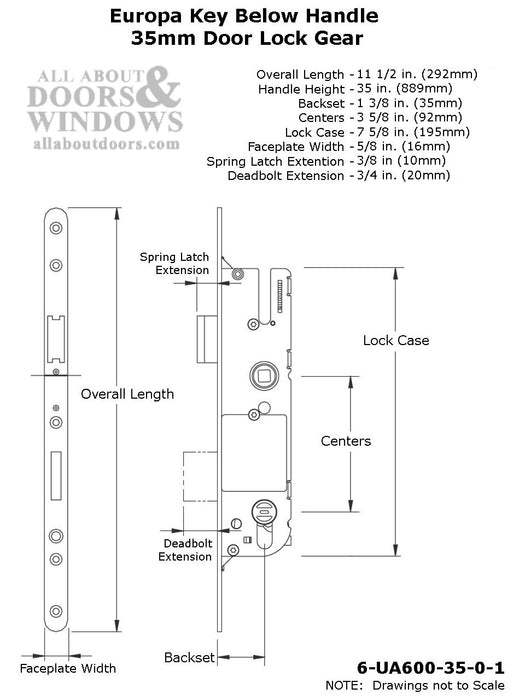

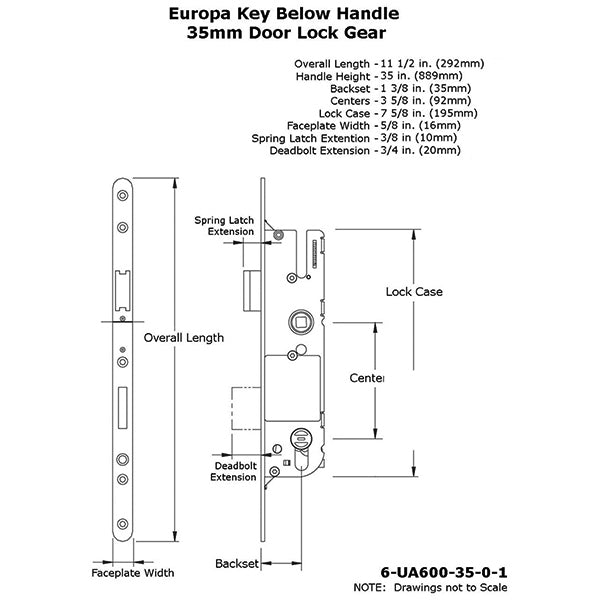

PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Faceplate Finish: Silver
Handle Position: Key below handle (Europa style)
Handle Height: Typically used with 35" (889mm) handle height
Deadbolt Throw: 1" (25.4mm)
Cylinder Type: American cylinder system with 90° turn
Spindle Size: 8mm square

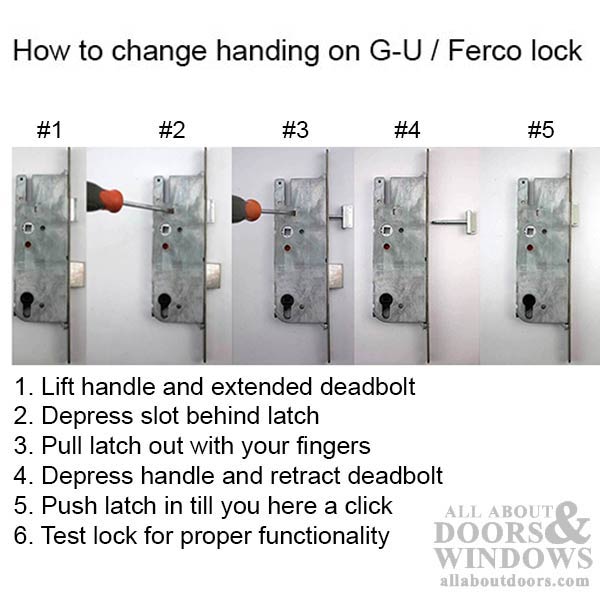

Non-handed design with easily reversible latch
Heavy-duty mortise construction
Sold individually

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

GU Monolock Single Point Lock – 35/92, Silver (6-C4873-35-0-SS)

The GU Monolock is a versatile single point mortise lock designed for both interior and exterior door applications. This Europa series lock features a 1-3/8 inch (35mm) backset and 92mm PZ (handle to cylinder spacing), making it compatible with standard door preparations used in GU multipoint locking systems.

Built with heavy-duty mortise construction, this lock includes a reinforced lever return spring system for long-lasting performance. The American cylinder system operates with a 90-degree turn of the key or thumbturn, and the 1-inch deadbolt throw provides reliable security. The non-handed design allows for easy installation on either left or right-hand doors, with a latch that can be quickly reversed.

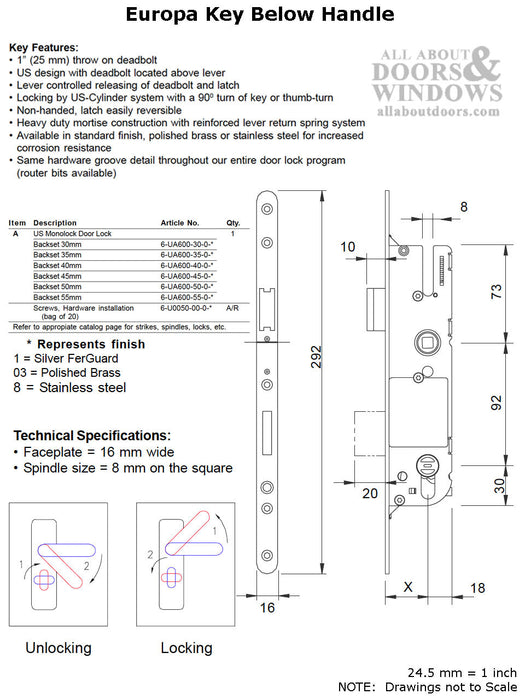

Technical Information

Series: Europa - Monolock
PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Backset: 1-3/8 inches (35mm)
Faceplate Width: 5/8 inches (16mm)
Faceplate Finish: Silver
Handle Position: Key below handle (Europa)
Handle Height: Typically 35 inches (889mm)
Deadbolt Throw: 1 inch (25.4mm)
Cylinder Type: American cylinder with 90° turn
Spindle Size: 8mm square

Notes

This locking system is also available with backsets of 35mm, 40mm, 45mm, 50mm, and 55mm
Also available in stainless steel and polished brass finishes
Uses the same routing and mortising dimensions as GU multipoint locking systems
Compatible with Schlage "C" keyway systems
Non-handed with easily reversible latch

Related Parts

6-UA600-30-0-1 - Monolock Door Lock, 30mm Backset, Stainless Steel
6-UA600-35-0-1 - Monolock Door Lock, 35mm Backset, Stainless Steel
6-UA600-40-0-1 - Monolock Door Lock, 40mm Backset, Stainless Steel
6-UA600-45-0-1 - Monolock Door Lock, 45mm Backset, Stainless Steel
6-UA600-50-0-1 - Monolock Door Lock, 50mm Backset, Stainless Steel
6-UA600-55-0-1 - Monolock Door Lock, 55mm Backset, Stainless Steel

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be installed on either a left or right-hand door?

Yes, this lock is non-handed with an easily reversible latch, so it can be installed on either left or right-hand doors without modification.

What does PZ mean on a door lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This lock has a 92mm PZ measurement.

What cylinder type does this lock use?

This lock uses an American cylinder system compatible with Schlage "C" keyway systems, operating with a 90-degree turn of the key or thumbturn.
