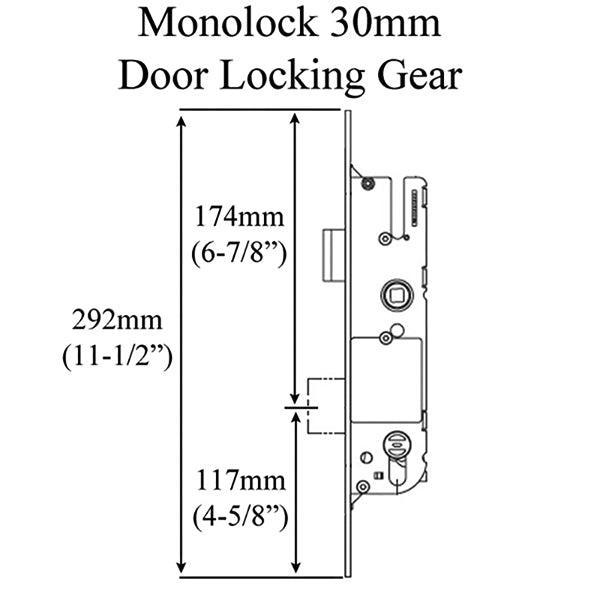

GU Monolock Single Point Lock – 30mm Backset, 92mm PZ, Stainless Steel

SKU: 6-C4873-30-0-SS

$148.43 - $148.43

$148.43

$148.43 - $148.43

$148.43

PZ (Handle to Cylinder): 3-5/8" (92mm)
Backset: 1-3/16" (30mm)
Faceplate Width: 5/8" (16mm)
Faceplate Finish: Stainless Steel
Handle Height: Typically used with 35" (889mm)
Key Position: Below handle (Europa style)
Cylinder Type: American cylinder with 90° turn
Deadbolt Throw: 1" (25.4mm)
Spindle Size: 8mm square
Handing: Reversible (non-handed)
Operation: Lift handle to extend deadbolt, then use key or thumbturn to lock
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

GU Monolock 30/92, Stainless Steel (6-C4873-30-0-SS)

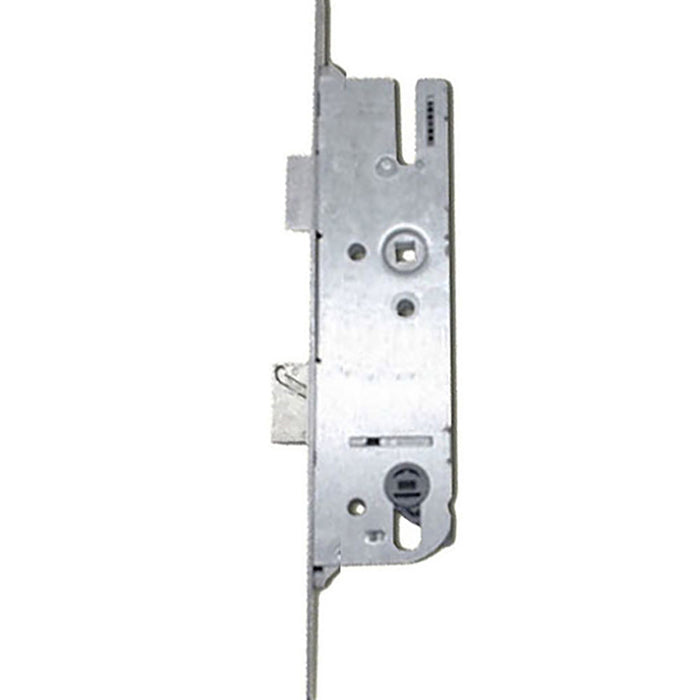

The GU Monolock is a single point mortise lock system designed for both interior and exterior door applications. This Europa series lock features a 30mm backset and 92mm PZ (handle to cylinder spacing), making it suitable for doors requiring a compact backset configuration.

This lock operates with an American cylinder system using a 90-degree turn of the key or thumbturn. The key position is located below the handle in the Europa configuration. To lock the door, lift the handle to extend the deadbolt, then use the key or thumbturn to secure it in place.

The Monolock shares the same routing and mortising dimensions as GU multi-point locking systems, allowing for consistent installation across different lock types. The heavy-duty mortise construction includes a reinforced lever return spring system for reliable long-term operation.

Technical Information

Series: Europa - Monolock
PZ (Handle to Cylinder): 92mm (3-5/8 inches)
Backset: 30mm (1-3/16 inches)
Faceplate Width: 16mm (5/8 inch)
Faceplate Finish: Stainless Steel
Handle Height: Typically 889mm (35 inches)
Deadbolt Throw: 25.4mm (1 inch)
Spindle Size: 8mm square
Cylinder Type: American cylinder (90° turn)
Handing: Reversible

Notes

Also available with backsets of 35mm, 40mm, 45mm, 50mm, and 55mm
Compatible with Schlage "C" keyway systems
Same hardware groove detail as GU multi-point lock program

Related Parts

6-UA600-35-0-8 - Monolock Door Lock, 35mm Backset
6-UA600-40-0-8 - Monolock Door Lock, 40mm Backset
6-UA600-45-0-8 - Monolock Door Lock, 45mm Backset
6-UA600-50-0-8 - Monolock Door Lock, 50mm Backset
6-UA600-55-0-8 - Monolock Door Lock, 55mm Backset

How to Rehand the Latch

Lift handle to extend deadbolt
Depress slot behind latch and pull latch out
Depress handle to retract deadbolt latch
Rotate latch and push back in until you hear a click
Test lock to verify proper function before installation

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I lock the door with this GU Monolock?

Lift the handle to extend the deadbolt, then use the key or thumbturn to keep it locked in place.

Can I reverse the handing on this lock?

Yes, the latch is easily reversible. Depress the slot behind the latch, pull it out, rotate it, and push it back in until it clicks.

What cylinder type does this lock use?

This lock uses an American cylinder system with a 90-degree turn, compatible with Schlage C keyway systems.
