GU Secury Automatic Multipoint Lock for 8' Doors – 55mm Backset, 92mm PZ, Stainless Steel

GU Secury Automatic Multipoint Lock – 55/92, SS (6-40526-06-R-SS)

The GU Secury Automatic is a European Profile cylinder, gear-driven multipoint lock designed for modern door applications. This lock operates with a key or thumb turn to lock and unlock the door, eliminating the need for lever handles. It is an excellent choice for pivot doors, electronic access systems, smart locks, or motorized door applications where a clean, modern aesthetic is desired.

One of the key advantages of the Secury Automatic is its automatic latch engagement. Every time the door closes, the top and bottom latches extend 3/4 inch (20mm) to secure the door without requiring a second operation to engage the multipoints. This keeps the door in proper alignment and provides consistent security with minimal effort.

To fully lock the door, simply turn the key or thumb turn 180 degrees to extend the deadbolt. To open, turn the exterior key or interior thumb turn – a 180-degree turn retracts the deadbolt, and an additional 180 degrees retracts the latches.

Technical Information

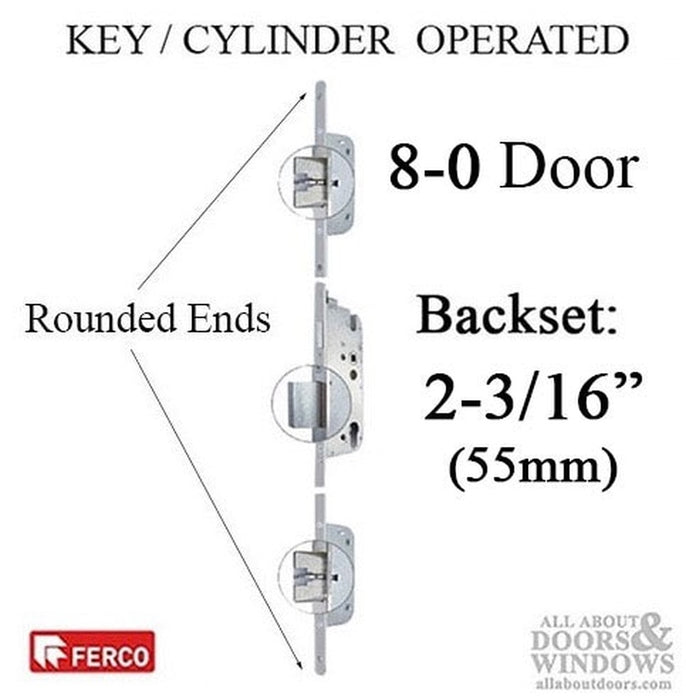

• Backset: 2-3/16 inches (55mm)
• PZ (Cylinder to Spindle): 3-5/8 inches (92mm)
• Faceplate Width: 5/8 inch (16mm)
• Handle Height: 41-5/16 inches (1050mm) – croppable for shorter heights
• Deadbolt Throw: 3/4 inch (20mm)
• Spindle Hub: 5/16 inch (8mm)
• Bottom Latchbolt Position: 23-5/16 inches (592mm)
• Upper Latchbolt Position: 41-1/2 inches (1054mm)
• Overall Length: Fits 8 feet 0 inch doors
• Material: 304 Stainless Steel
• Optional Backsets: 1-3/8 inches (35mm), 1-3/4 inches (45mm), 1-9/16 inches (55mm), 2-9/16 inches (65mm)

Notes

• Bluetooth devices are compatible with Danalock Smart Lock components
• A temporary blue American adapter insert is included in the profile cylinder hole for shipping and construction purposes – remove prior to operation
• Optional push/pull bars and accessories are available separately

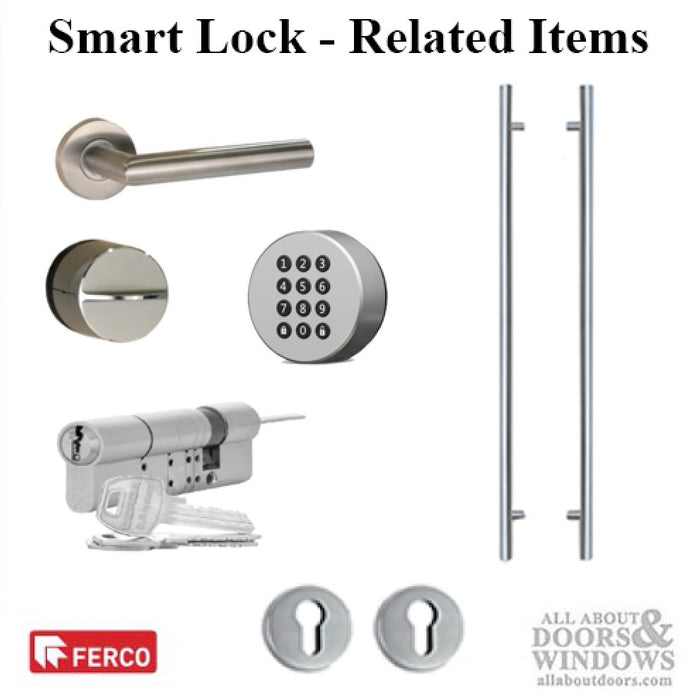

Related Parts

• K-C8153-01-0-0 – Set Motor Secury Automatic Universal
• K-C5560-20-4-BLPC – GU Secure Connect 200
• K-C0340-08-P-8B – Double Pull Bars, Round, 31-1/2 inches (800mm)
• K-C0340-12-P-8B – Double Pull Bars, Round, 47-1/4 inches (1200mm)
• K-C0340-18-P-8B – Double Pull Bars, Round, 70-7/8 inches (1800mm)
• K-C0345-08-P-8B – Double Pull Bars, Round 45° Offset, 800mm
• K-C0345-12-P-8B – Double Pull Bars, Round 45° Offset, 1200mm
• K-C0345-18-P-8B – Double Pull Bars, Round 45° Offset, 1800mm
• K-C0350-12-P-8B – Double Pull Bars, Rectangular, 1200mm
• 6-C0531-00-0-8B – Interior Caps for Pull Bars (1)
• K-C0960-00-0-8B – Support Plates for Pull Bars (4)

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.
