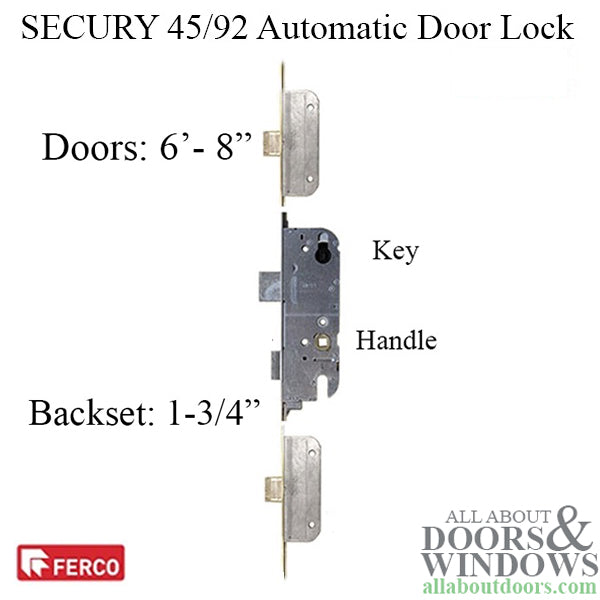

GU Secury 3-Point Automatic Multipoint Lock for 6' 8" Doors – 45mm Backset, 92mm PZ

SKU: 6-35856-01-R-SS

$510.76 - $510.76

$510.76

$510.76 - $510.76

$510.76

PZ: 3-5/8" (92mm)
Backset: 1-3/4" (45mm)
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25mm)
Cylinder Position: Key above lever
Cylinder Type: American (uses flat tailpiece)
Material: Stainless steel

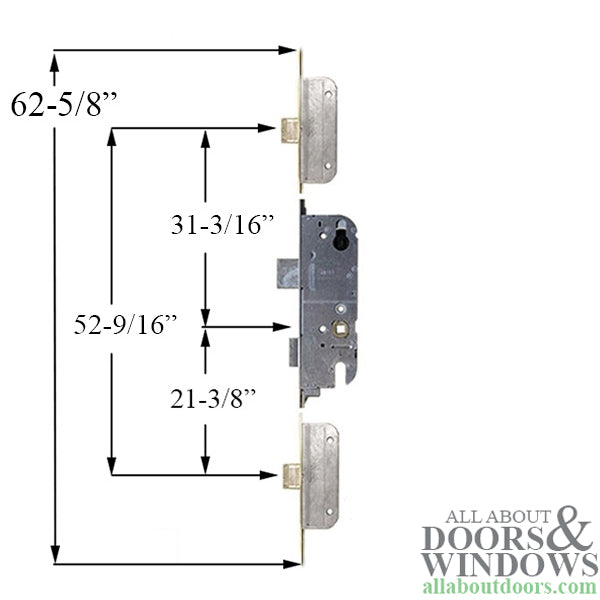

Overall Length: 62-5/8" (1591mm) for 6' 8" doors
Upper Latchbolt Position: 31-3/16" (792mm)
Lower Latchbolt Position: 21-3/8" (543mm)
Handle Height: Adjustable (36" recommended)
Spindle Hub: 5/16" (8mm) square
Extension End: Radius, rounded end
Non-handed, latch easily reversible
Automatic latchbolts throw 20mm when door closes
For use with lever handle sets

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

GU Secury 3-Point Automatic Lock – 45/92, 6' 8" Door (6-35856-01-R-SS)

This GU Ferco Secury 3-point automatic multipoint lock provides enhanced security and convenience for 6 foot 8 inch doors. The lock features automatic latching technology—simply close the door and the latchbolts instantly engage at 20mm projection, securing against forced entry.

When you turn the key or thumb-turn, the deadbolt engages and locks the top and bottom latchbolts, converting the system into a 3-deadbolt configuration. This heavy-duty mortise construction includes a reinforced lever return spring system for long-lasting performance.

The lock operates with an American cylinder (using a flat tailpiece) positioned above the lever, requiring just a 90-degree turn of the key to lock. The handle height is adjustable, with 36 inches recommended for standard installations. The non-handed design allows the latch to be easily reversed for left or right-hand doors.

Technical Information

Backset: 1-3/4 inches (45mm)
PZ (Handle to Cylinder): 3-5/8 inches (92mm)
Faceplate Width: 5/8 inches (16mm)
Overall Length: 62-5/8 inches (1591mm)
Upper Latchbolt Position: 31-3/16 inches (792mm)
Lower Latchbolt Position: 21-3/8 inches (543mm)
Deadbolt Throw: 1 inch (25mm)
Latchbolt Projection: 3/4 inches (20mm)
Spindle Hub: 5/16 inches (8mm) square
Material: Stainless steel
Cylinder Type: American (flat tailpiece)
Cylinder Position: Key above lever
Extension End: Radius, rounded

Notes

Non-handed design with easily reversible latch
Handle height is adjustable (36 inches recommended)
Automatic latchbolts project from 10mm to 20mm to help prevent air infiltration and protect the door panel from warping
Deadbolt includes babysitting function
No lifting of handle required to engage locking points
Same hardware groove detail throughout the GU door lock program (jig, router base, and bits available)

Related Parts

6-33479-04-0-8B - Extension with additional lock point for doors taller than 8 feet

For use with lever handle sets (American cylinder above handle).

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does 'automatic latching' mean on this lock?

When you close the door, the latchbolts automatically engage and project 20mm, securing the door without needing to lift the handle or turn the key.

Can this lock be used on left-hand or right-hand doors?

Yes, this lock is non-handed and the latch can be easily reversed to work with either left-hand or right-hand doors.

What type of cylinder does this lock use?

This lock uses an American cylinder with a flat tailpiece, positioned above the lever handle.
