GU New Breed 3-Point Multipoint Lock – 45mm Backset, 92mm PZ, Key Above Lever

GU New Breed 3-Point Multipoint Lock – 45mm Backset, 92mm PZ, Key Above Lever

SKU 6-33974-01-R-SS

$291.04 - $291.04
$291.04
$291.04 - $291.04
$291.04
  • PZ: 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Faceplate Width: 16mm (5/8")
  • Faceplate Length: 81-1/4" (2063mm) overall
  • Handle Height: 35" (889mm)
  • Key Position: Above lever
  • Lock Style: New Breed with automatic latch bolts
  • Material: Stainless steel
  • Handle to Top Latch Bolt: 31-1/4" (793mm)
  • Handle to Bottom Latch Bolt: 21-3/8" (543mm)
  • Croppable: Yes – bottom can be cut 9-1/2", top can be cut 10-1/2"
  • 3-point lock with automatic top and bottom latch bolts
  • Can be rehanded in the field
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU New Breed 3-Point Lock – 45/92, Key Above (6-33974-01-R)

This GU active New Breed multipoint lock is a 3-point locking system featuring automatic latch bolts on both the top and bottom. When the door closes, the latch bolts automatically extend to hold the door in place. The door is not fully secured until you throw the thumbturn or key to engage the locked position. This design eliminates the need to lift the lever when locking.

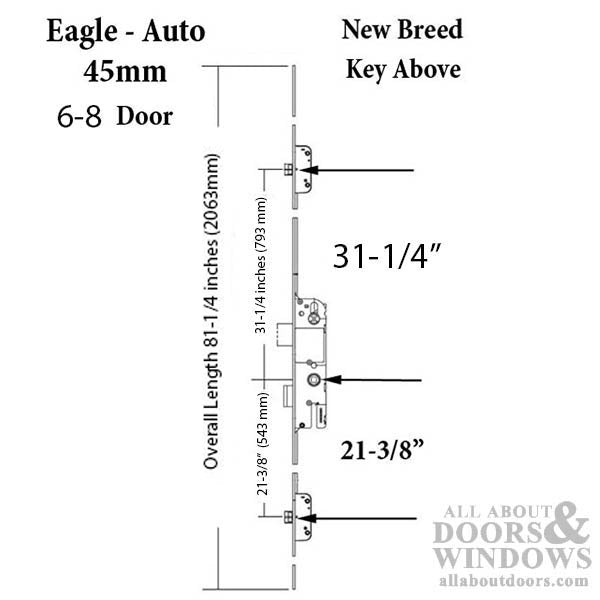

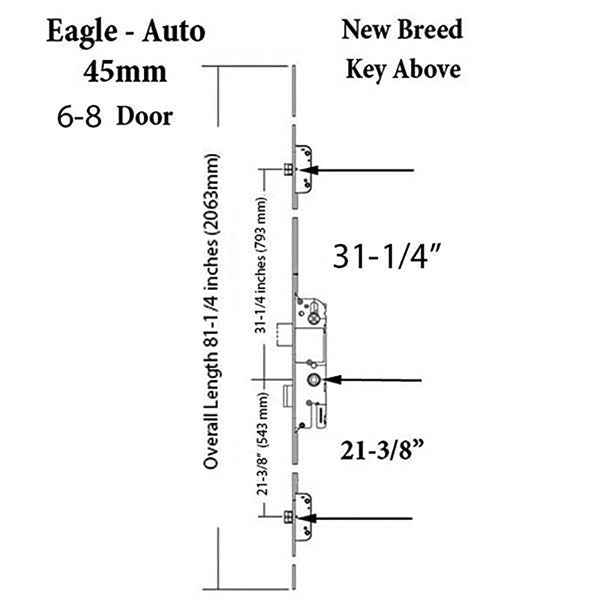

The lock body features a 45mm (1-3/4 inch) backset and 92mm (3-5/8 inch) PZ measurement. The stainless steel faceplate is 16mm (5/8 inch) wide with an overall length of 81-1/4 inches (2063mm). The faceplate is croppable – you can cut up to 9-1/2 inches from the bottom and 10-1/2 inches from the top to fit your door.

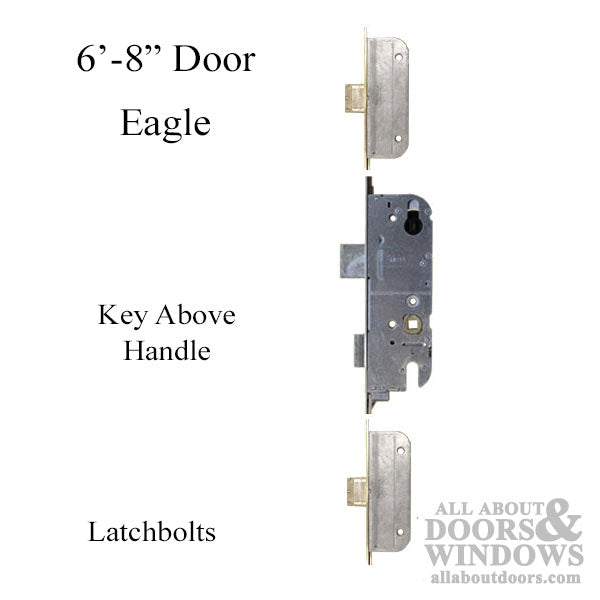

The key cylinder is positioned above the lever handle. Standard handle height is 35 inches (889mm) from the bottom of the faceplate. The top latch bolt is located 31-1/4 inches (793mm) above the handle, and the bottom latch bolt is 21-3/8 inches (543mm) below the handle.

Technical Information

  • Lock Body Style: New Breed - Key Above Handle
  • Backset: 45mm (1-3/4 inches)
  • PZ: 92mm (3-5/8 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Faceplate Length: 81-1/4 inches (2063mm)
  • Handle Height: 35 inches (889mm)
  • Handle to Top Latch Bolt: 31-1/4 inches (793mm)
  • Handle to Bottom Latch Bolt: 21-3/8 inches (543mm)
  • Material: Stainless Steel
  • Locking Points: 3-point (center latch plus top and bottom latch bolts)

Notes

  • Faceplate can be cropped: bottom up to 9-1/2 inches, top up to 10-1/2 inches
  • Lock can be rehanded in the field
  • To change handing on center latch: Remove 3 T-25 star screws from faceplate and flip latch
  • To change handing on top and bottom latches: Insert 3/16 inch hex screwdriver into hole on backside of latch, unscrew counterclockwise, remove latch, spin around and reattach
  • Always test lock before installing

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Do I need to lift the lever to lock this door?

No, this GU New Breed lock has automatic latch bolts that engage when the door closes. Simply turn the thumbturn or key to secure the lock – no lever lifting required.

Can I change the handing on this lock?

Yes, this lock can be rehanded in the field. The center latch requires removing 3 T-25 screws and flipping it. The top and bottom latches are changed using a 3/16 inch hex screwdriver to remove, rotate, and reattach each latch.

Can I cut this lock to fit my door?

Yes, the faceplate is croppable. You can cut up to 9-1/2 inches from the bottom and 10-1/2 inches from the top to fit your specific door height.
