GU Cremona Europa Tripact Multipoint Lock – 50mm Backset, 70mm PZ

SKU: 6-33524-05-0-FG

$442.24 - $442.24

$442.24

$442.24 - $442.24

$442.24

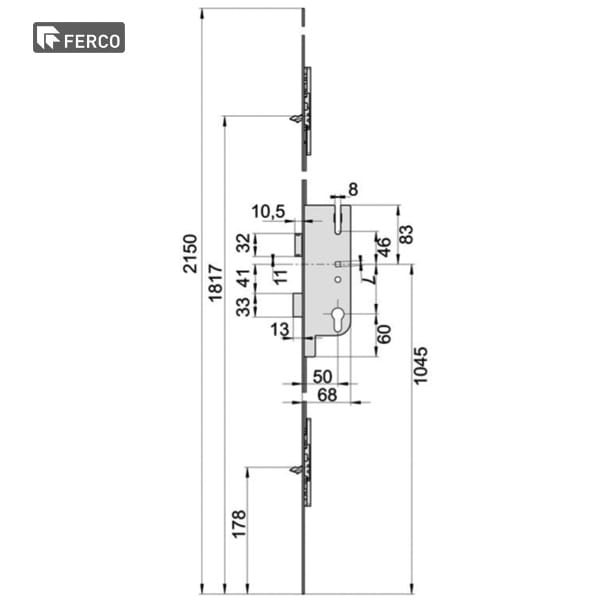

PZ: 2-3/4" (70mm) – Special Size
Backset: 2" (50mm)
Faceplate Width: 3/4" (20mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 41-1/8" (1045mm) – Croppable
Top Tongue Position: 34-3/8" (876.5mm)
Bottom Tongue Position: 35-5/16" (897.5mm)
Overall Length: 84-5/8" (2150mm)
Spindle Diameter: 1/4" (7mm)
Lock Version: Euro

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

GU Cremona Europa Tripact Multipoint Lock – 50/70 (6-33524-05-0-FG)

This GU Ferco Cremona Europa Tripact 50/70 S2 multipoint lock is designed for European-style door applications. It features a special size 70mm PZ (handle to cylinder center) and 50mm backset configuration, making it suitable for specific door preparations that require this unique spacing.

The lock body has a 3/4-inch (20mm) faceplate width and delivers a 1-inch (25.4mm) deadbolt throw for secure locking. The handle height is positioned at 41-1/8 inches (1045mm) from the bottom of the faceplate and can be cropped to fit your door requirements.

Technical Information

Lock Version: Euro
Backset: 2 inches (50mm)
PZ (Handle to Cylinder): 2-3/4 inches (70mm) – Special Size
Faceplate Width: 3/4 inch (20mm)
Deadbolt Throw: 1 inch (25.4mm)
Spindle Diameter: 1/4 inch (7mm)
Handle Height: 41-1/8 inches (1045mm) – Croppable
Top Tongue Position: 34-3/8 inches (876.5mm)
Bottom Tongue Position: 35-5/16 inches (897.5mm)
Overall Length: 84-5/8 inches (2150mm)
Original Manufacturer SKU: 6-33524-05-0-1

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does 'croppable handle height' mean?

The handle height of 41-1/8 inches can be trimmed or cut down to fit doors with different handle positioning requirements.

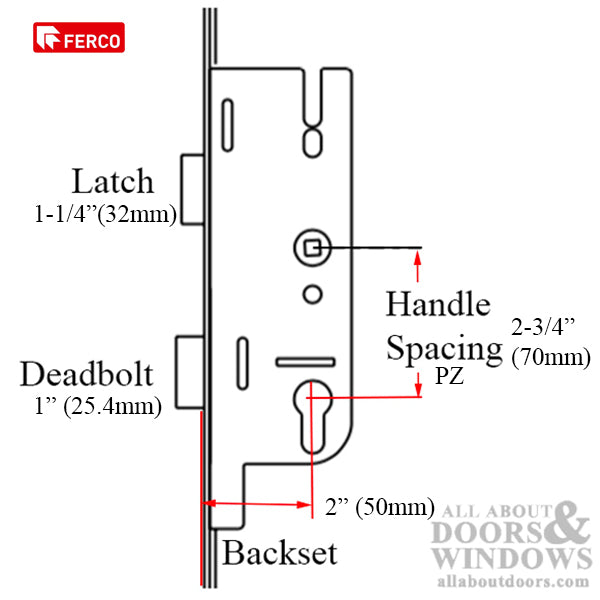

What is the PZ measurement and why is 70mm considered special?

PZ is the distance from the center of the handle spindle to the center of the cylinder keyhole. The 70mm PZ is considered a special size because most standard multipoint locks use 92mm PZ.

What type of cylinder does this lock use?

This lock uses a Euro profile cylinder, which is the standard cylinder type for European-style multipoint locks.
