GU Europa 750mm Tripact Extension with Tongue – 16mm Faceplate, Black

GU Europa 750mm Tripact Extension with Tongue – 16mm Faceplate, Black

SKU 6-33279-05-0-BL

Sold out
$232.55 - $232.55
$232.55
$232.55 - $232.55
$232.55
  • Status: Discontinued – replaced by 6-33279-07-0-BL
  • Series: GU Europa Tripact
  • Key Position: Below lever
  • Faceplate Width: 5/8" (16mm)
  • Overall Faceplate Length: 29-1/2" (750mm)
  • Top Tongue Position: 9" (229mm) from bottom of faceplate
  • Adjustable Height Range: 16" to 22-3/8" from first tongue
  • Color/Finish: Black
  • Adds 1 additional tongue locking point for taller doors
  • Stand-alone extension – no serrated teeth for stacking additional extensions
  • Height adjustable by cutting top extension
Discontinued and no longer available
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Europa 750mm Tripact Extension – Black (6-33279-05-0-BL)

This item has been discontinued. Please see the replacement part 6-33279-07-0-BL.

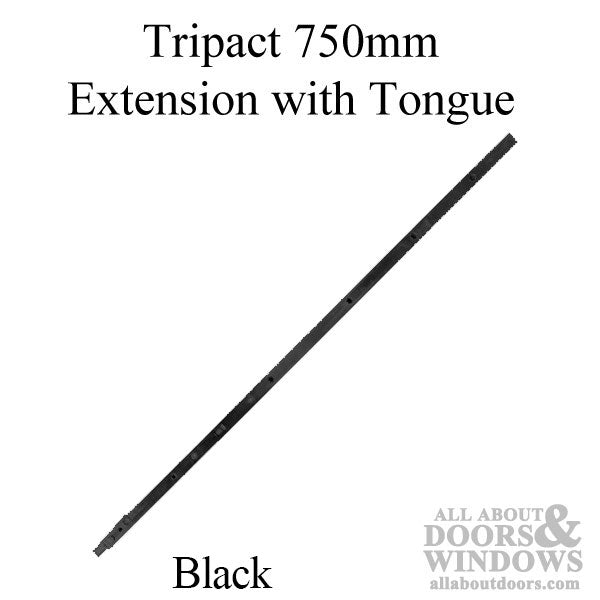

This GU Europa 750mm Tripact Extension with Tongue Locking Point adds one additional tongue locking point for taller doors. Designed for use with the Tripact Europa Series multipoint lock systems, this extension features a key-below-lever configuration.

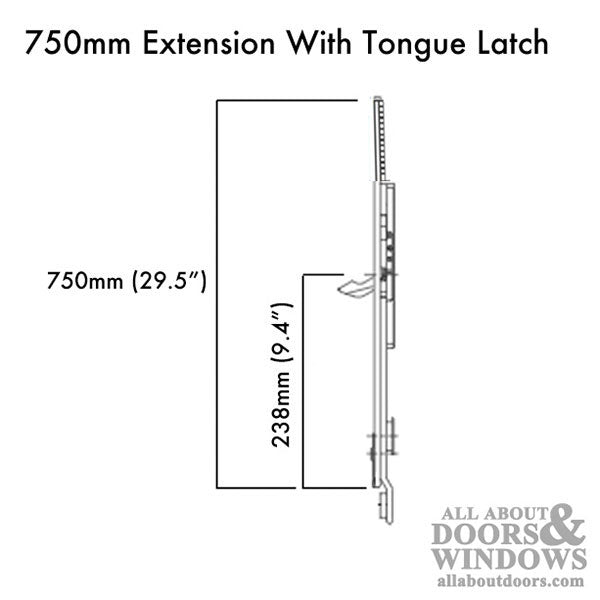

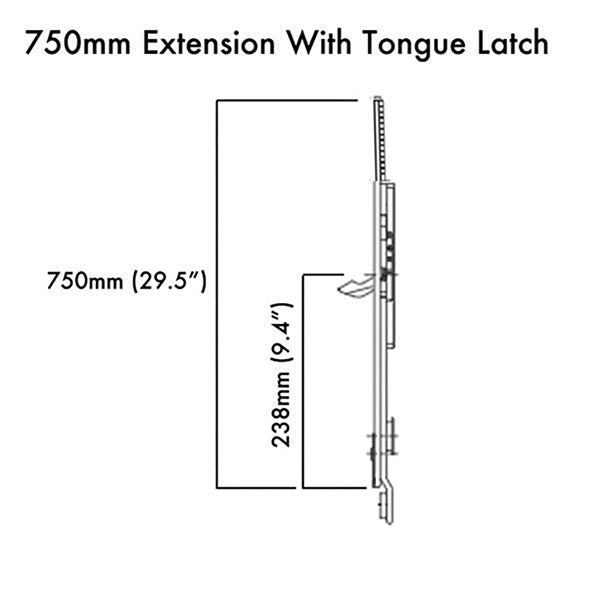

The extension has a 5/8 inch (16mm) faceplate width and an overall faceplate length of 29-1/2 inches (750mm). The top tongue is positioned 9 inches (229mm) from the bottom of the faceplate. Height is adjustable by cutting the top extension, with a minimum distance of 16 inches and maximum distance of 22-3/8 inches from the first tongue.

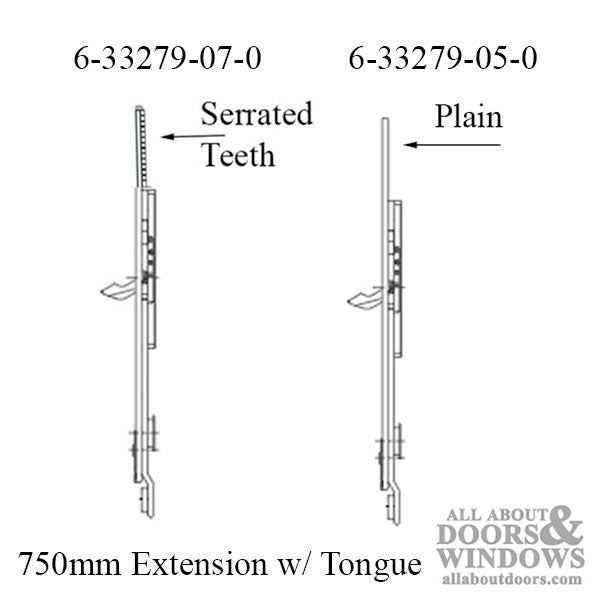

This is a stand-alone extension with no serrated teeth at the top, meaning additional extensions cannot be stacked above it. If you need the tongue positioned higher on the door, you will need a plain extension combined with an additional tongue component.

Technical Information

  • Faceplate Width: 5/8 inch (16mm)
  • Overall Faceplate Length: 29-1/2 inches (750mm)
  • Top Tongue Position: 9 inches (229mm) from bottom of faceplate
  • Minimum Distance from First Tongue: 16 inches
  • Maximum Distance from First Tongue: 22-3/8 inches
  • Color/Finish: Black

Notes

  • Extensions come plain or with locking point for Roller, Tongue, or Hook versions
  • No serrated teeth – cannot stack additional extensions on top

Replaces / Replaced by

  • Replaced by 6-33279-07-0-BL

Related Parts

  • G-16790-05-0-1R – 500mm Extension NO Lock Point (Standard)
  • 6-33279-05-0-1 – 750mm Extension with Locking Point
  • 6-33279-07-0 – 750mm Extension with Locking Point & Serrated Teeth

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I stack additional extensions on top of this one?

No, this extension has no serrated teeth at the top, so additional extensions cannot be added above it. It is a stand-alone extension.

How do I adjust the height of this extension?

The height is adjustable by cutting the top of the extension. The adjustable range is 16 inches minimum to 22-3/8 inches maximum from the first tongue.

What if I need the tongue positioned higher on my door?

If you need the tongue higher, you will need to use a plain extension combined with an additional tongue component rather than this stand-alone unit.
