GU Cremona Europa Inactive 2-Point Door Lock – 50mm Backset, 92mm PZ

GU Cremona Europa Inactive 2-Point Door Lock – 50mm Backset, 92mm PZ

SKU 6-33270-02-0-FG

$221.42 - $221.42
$221.42
$221.42 - $221.42
$221.42

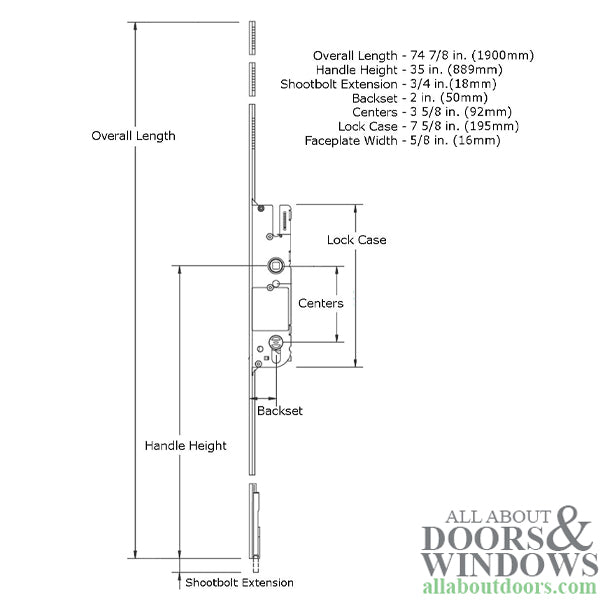

  • PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
  • Backset: 2" (50mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Finish: Silver FerGuard
  • Handle Height: Typically 35" (889mm)
  • Handle Position: Key below handle (Europa style)
  • Cylinder Type: American cylinder system with 90° turn
  • Spindle Size: 8mm square

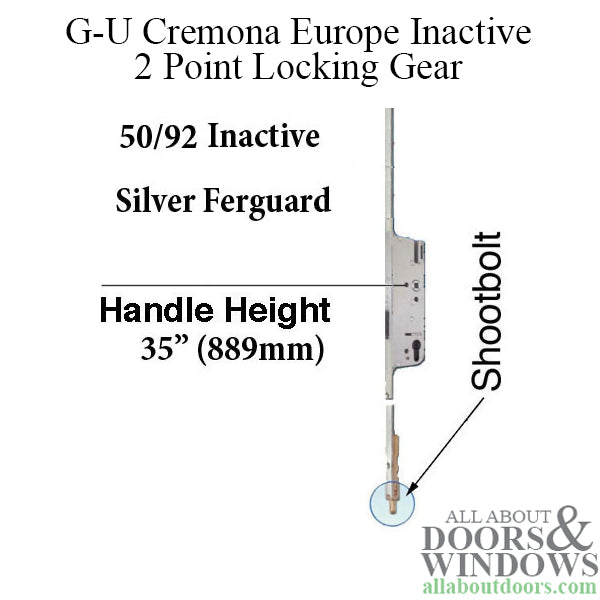

  • 2-point locking with top and bottom shootbolts
  • Non-handed design with easily reversible latch
  • Requires an astragal for proper installation
  • Top shootbolt sold separately
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Cremona Europa Inactive 2-Point Lock – 50/92 (6-33270-02-0-FG)

This GU Cremona Europa inactive/passive 2-point door locking gear is designed for double door applications where one panel remains stationary. The system provides secure locking through shootbolts that engage vertically at both the top and bottom of the door panel, offering excellent security and protection against door panel warping.

This lock body features a 2-inch (50mm) backset and 3-5/8 inch (92mm) PZ spacing (handle to cylinder center). The 5/8 inch (16mm) wide faceplate comes in a Silver FerGuard finish. The Europa configuration positions the key cylinder below the handle, and the system uses an American cylinder with a 90-degree turn for locking via key or thumbturn.

Please note that this is the inactive/passive lock body only. The top shootbolt must be purchased separately. This lock requires an astragal for proper installation. The active door's deadbolt can only engage when the inactive door is closed and its shootbolts are engaged.

Technical Information

  • Series: Europa - Cremona
  • Function: Inactive/Passive 2-Point Locking
  • PZ (Centers): 3-5/8 inches (92mm)
  • Backset: 2 inches (50mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Faceplate Finish: Silver FerGuard
  • Handle Height: 35 inches (889mm) typical
  • Spindle Size: 8mm square
  • Cylinder Type: American cylinder (Schlage "C" keyway compatible)
  • Original Manufacturer SKU: 6-33270-02-0-FG

Notes

  • Non-handed design with easily reversible latch
  • Heavy duty mortise construction with reinforced lever return spring
  • Height adjustable locking system
  • Extensions available for taller doors
  • Requires an astragal for installation
  • Active door deadbolt only engages when inactive shootbolts are locked

Related Parts

  • G-16798-02-0-1 - Reversing Gear/Top Shootbolt
  • G-16790-06-0-1 - 500mm Extension with Lock Point
  • G-16790-05-0-1 - 500mm Extension without Lock Point
  • 9-29525-00-0-0 - Brass Sleeve (10mm I.D.)
  • 9-34442-00-0-0 - Brass Sleeve (12mm I.D.)

How to Identify a Multipoint Door Lock

  • Check for manufacturer stamp on the lock strip
  • Measure the width of the lock strip
  • Measure the backset
  • Measure the center points (PZ)
  • Identify locking types on the strip (mushroom, deadbolt, hook, etc.)
  • Count the number of locking points
  • Note the lock color (silver, stainless steel, etc.)
  • Determine door material (UPVC, aluminum, composite, or wood)

Sold individually. Top shootbolt sold separately.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between active and inactive multipoint locks?

The inactive (passive) lock is installed on the stationary door panel of a double door system. It engages shootbolts into the frame when the handle is lifted, allowing the active door's deadbolt to lock into the inactive lock's receiver.

Why does this lock require an astragal?

An astragal is the vertical strip between double doors that provides a surface for the inactive door's shootbolts and the active door's deadbolt to engage, creating a secure seal between the two door panels.

What cylinder type does this lock use?

This lock uses an American cylinder system compatible with Schlage "C" keyway, requiring a 90-degree turn of the key or thumbturn to lock.
