GU Cremona 3 Point Lock Gear with Bottom Shootbolt – 35mm Backset, 92mm PZ, Black

GU Cremona 3 Point Lock Gear with Bottom Shootbolt – 35mm Backset, 92mm PZ, Black

SKU 6-33244-01-0-SS

$220.58 - $220.58
$220.58
$220.58 - $220.58
$220.58
  • PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Finish: Black
  • Handle Position: Key below handle (Europa)
  • Handle Height: 35" (889mm)
  • Cylinder Type: American cylinder
  • Spindle Size: 8mm square
  • Series: Europa - Cremona 3 Point
  • Includes: Bottom shootbolt attached
  • Does Not Include: Top shootbolt or middle extension (required for doors greater than 81")
  • Top shootbolt and middle extension sold separately
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

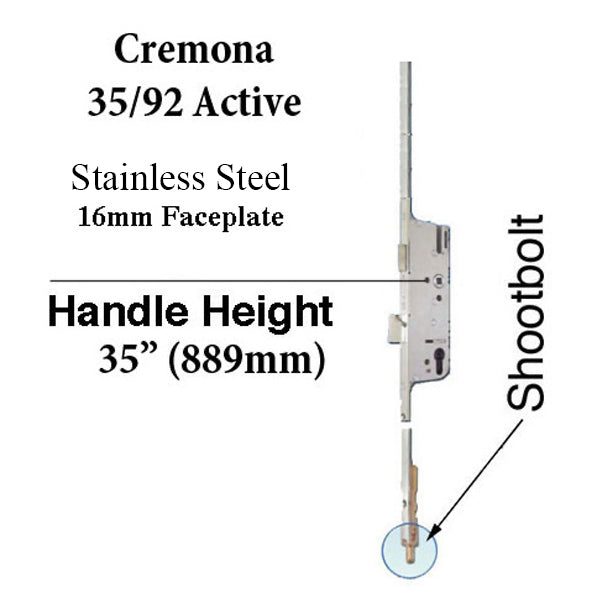

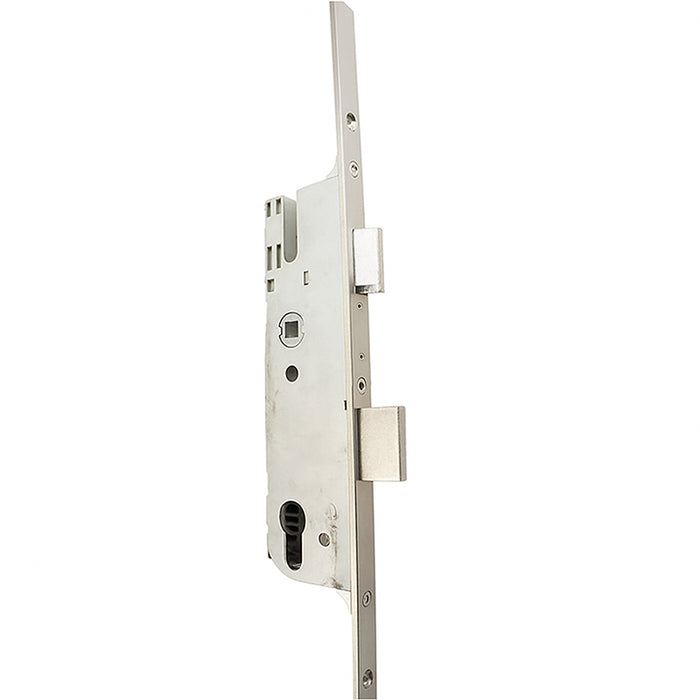

GU Cremona 3 Point Lock Gear – 35/92, Black (6-33244-01-0-SS)

This GU Cremona 3 Point Door Locking Gear is designed for multipoint door applications and comes with the bottom shootbolt attached. The shootbolt function locks vertically at both the top and bottom of the door panel for enhanced security.

This is the active gear only. For doors greater than 81 inches in height, you will also need to purchase the top shootbolt and middle extension separately to complete the installation.

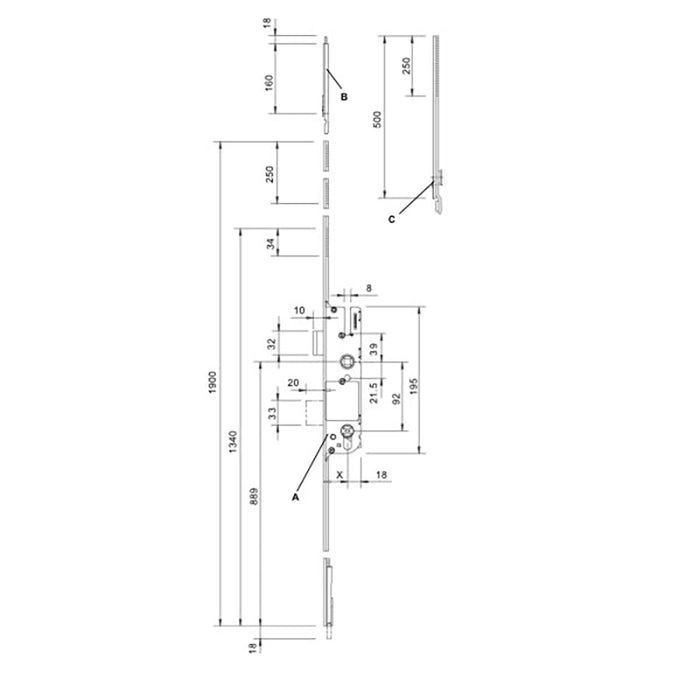

Technical Information

  • Series: Europa - Cremona 3 Point
  • PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inches (16mm)
  • Faceplate Finish: Black
  • Handle Position: Key below handle (Europa)
  • Handle Height: 35 inches (889mm)
  • Cylinder Type: American cylinder
  • Spindle Size: 8mm square

Notes

  • Also available in stainless steel finish
  • Top shootbolt required for full functionality
  • Middle extension required for doors greater than 81 inches

Sold as active gear only. Top shootbolt and middle extension sold separately.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What additional parts do I need for doors taller than 81 inches?

For doors greater than 81 inches, you will need to purchase the top shootbolt and middle extension separately in addition to this active gear.

What does 'key below handle' mean?

This refers to the Europa configuration where the cylinder (keyhole) is positioned below the door handle, which is a common European-style multipoint lock setup.

What cylinder type does this lock use?

This lock uses an American cylinder, which is the standard cylinder type used in North American door hardware.
