GU Ferco Cremona 3-Point Locking Gear with Bottom Shootbolt – 35mm Backset, 92mm PZ

GU Ferco Cremona 3-Point Locking Gear with Bottom Shootbolt – 35mm Backset, 92mm PZ

SKU 6-33244-01-0-FG

$234.84 - $234.84
$234.84
$234.84 - $234.84
$234.84
  • PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 35" (889mm)
  • Cylinder Type: American Cylinder
  • Handle Position: Key below handle (Europa)
  • Spindle Size: 8mm square
  • Faceplate Finish: Silver Fergard (also available in Black, Stainless Steel)
  • Series: Europa - Cremona 3 Point
  • Function: Shootbolt locks vertically at top and bottom of door panel
  • Active gear only with bottom shootbolt attached
  • Requires top shootbolt and middle extension for doors greater than 81" (sold separately)
  • Sold as active gear only
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

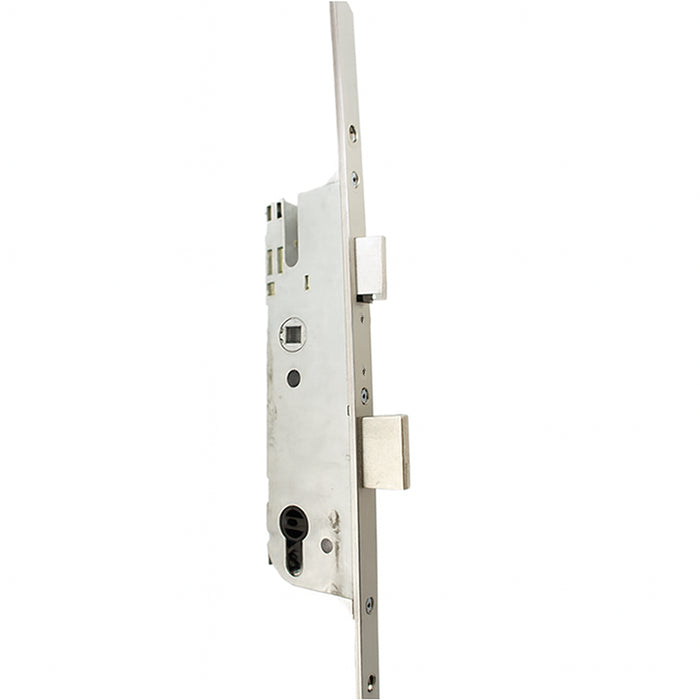

GU Ferco Cremona 3-Point Gear – 35/92, Bottom Shootbolt (6-33244-01-0-FG)

This GU Ferco Cremona 3-point door locking gear features an attached bottom shootbolt and is designed for multipoint door systems. The Europa series configuration places the key cylinder below the handle, using an American cylinder type.

This is the active gear component only. For doors greater than 81 inches in height, you will need to purchase the top shootbolt and middle extension separately. The shootbolt function locks vertically at both the top and bottom of the door panel for enhanced security.

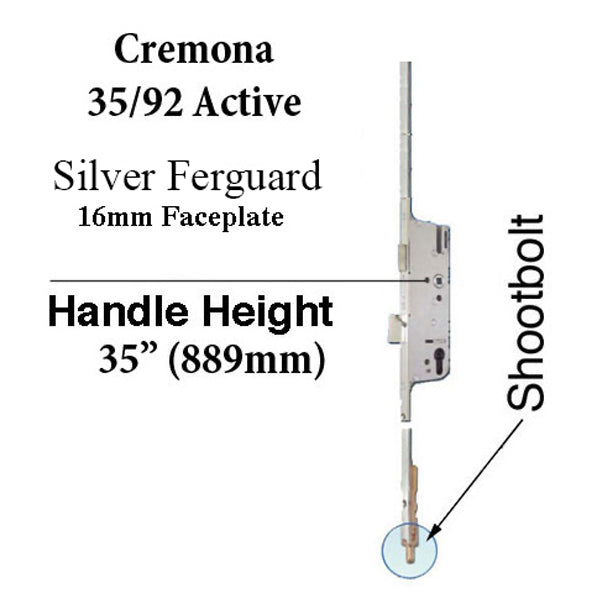

The gear has a 1-3/8 inch (35mm) backset with a 3-5/8 inch (92mm) PZ measurement (handle center to cylinder center). It features a 5/8 inch (16mm) wide faceplate in Silver Fergard finish, with Black and Stainless Steel finishes also available. Standard handle height is 35 inches (889mm) with an 8mm square spindle.

Stamped With

  • G-U 9-49555-01-0-1
  • G2405635/92
  • 6146521182

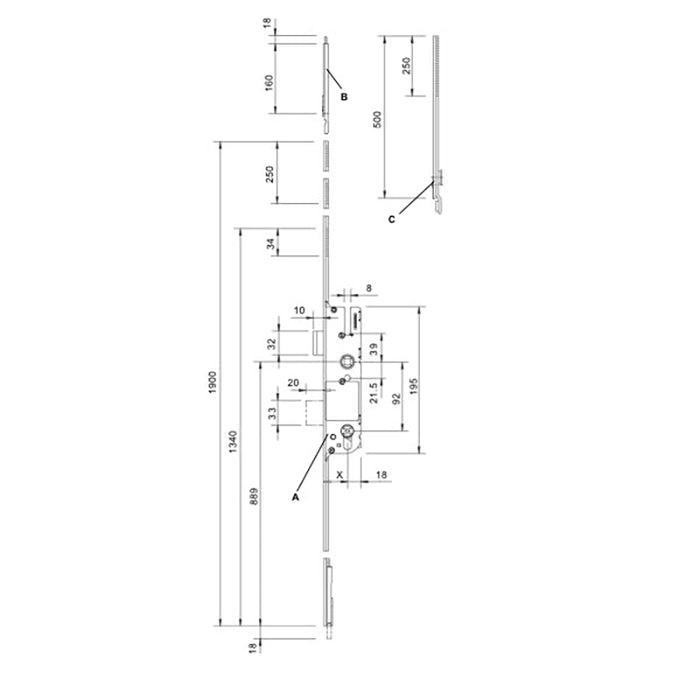

Technical Information

  • PZ (Handle to Cylinder Spacing): 92mm (3-5/8 inches)
  • Backset: 35mm (1-3/8 inches)
  • Faceplate Width: 16mm (5/8 inch)
  • Handle Height: 889mm (35 inches)
  • Spindle Size: 8mm square
  • Cylinder Type: American Cylinder
  • Handle Position: Key below handle (Europa)
  • Faceplate Finish: Silver Fergard
  • Series: Europa - Cremona 3 Point

Notes

  • Sticker marking: 6-33105-AQ-0-01811CESEC U. 35/92/8 GD-Zn
  • Top shootbolt and middle extension required for doors over 81 inches
  • Also available in Black and Stainless Steel faceplate finishes

Sold as active gear only with bottom shootbolt. Top shootbolt and middle extension sold separately.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What additional parts do I need for doors taller than 81 inches?

For doors greater than 81 inches, you will need to purchase the top shootbolt and middle extension separately in addition to this active gear.

What does 'key below handle' mean?

This Europa series configuration positions the key cylinder below the door handle, which is a common European-style multipoint lock layout.

What cylinder type does this lock use?

This lock uses an American cylinder type, which is the standard cylinder format used in North American door hardware.
