KFV Multipoint Lock – 45mm Backset, 92mm PZ, 2 Hooks

KFV Multipoint Lock – 45mm Backset, 92mm PZ, 2 Hooks

SKU 4991260

$65.00 - $65.00
$65.00
$65.00 - $65.00
$65.00
  • PZ: 3-5/8" (92mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 0.787" (20mm)
  • Faceplate Length: 85.43" (2170mm)
  • Deadbolt Throw: 0.63" (16mm)
  • Roundbolt Throw: 0.787" (20mm)
  • Top Hook Position: 28-3/16" (716mm)
  • Bottom Hook Position: 30-1/2" (775mm)
  • Lock Type: Euro Profile Cylinder (key or thumbturn operated)
  • Configuration: 2 hooks, 1 deadbolt, spring latch
  • Handing: Non-handed (springlatch can be reversed)
  • Can be cut down to make single point locks
  • Must be lubricated before installing
  • Condition: Old stock, over 10 years old, new but may show age; sold as-is, no returns
Currently Unavailable.
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

KFV Multipoint Lock – 45/92, 2 Hooks (4991260)

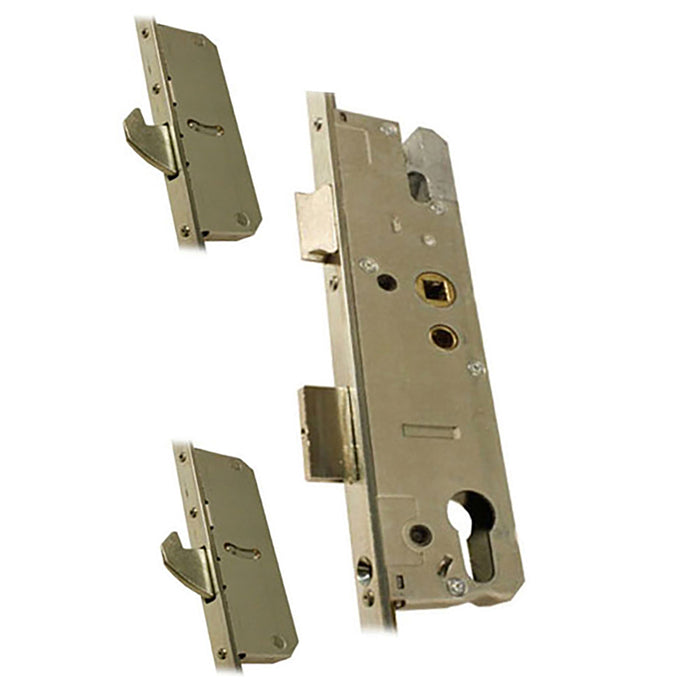

This KFV multipoint door lock features a 1-3/4 inch (45mm) backset and 3-5/8 inch (92mm) PZ measurement. The lock is lever operated and includes 2 hooks, 1 deadbolt, and a spring latch for secure door operation.

Designed for Euro profile cylinder operation, this lock works with either a key or thumbturn. The faceplate measures 0.787 inches (20mm) wide and 85.43 inches (2170mm) long, with riveted connections. The deadbolt throw is 0.63 inches (16mm) and the roundbolt throw is 0.787 inches (20mm).

Hook positions are located at 28-3/16 inches (716mm) for the top hook and 30-1/2 inches (775mm) for the bottom hook. This lock is non-handed, as the springlatch can be reversed by removing the screw and flipping the latch.

Stamped With

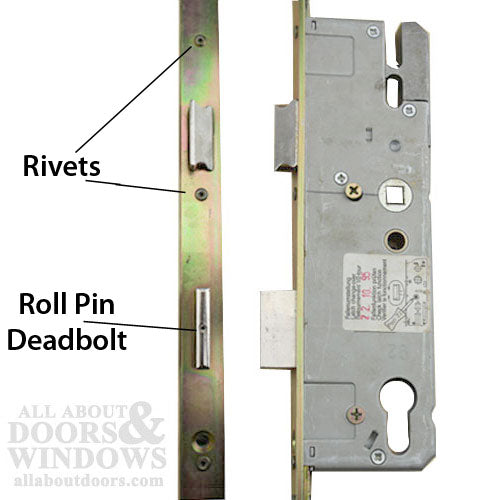

  • Deadbolt has pin in center (KFV identifying mark)

Technical Information

  • Lock Type: Euro Profile Cylinder
  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Faceplate Width: 0.787 inches (20mm)
  • Faceplate Length: 85.43 inches (2170mm)
  • Deadbolt Throw: 0.63 inches (16mm)
  • Roundbolt Throw: 0.787 inches (20mm)

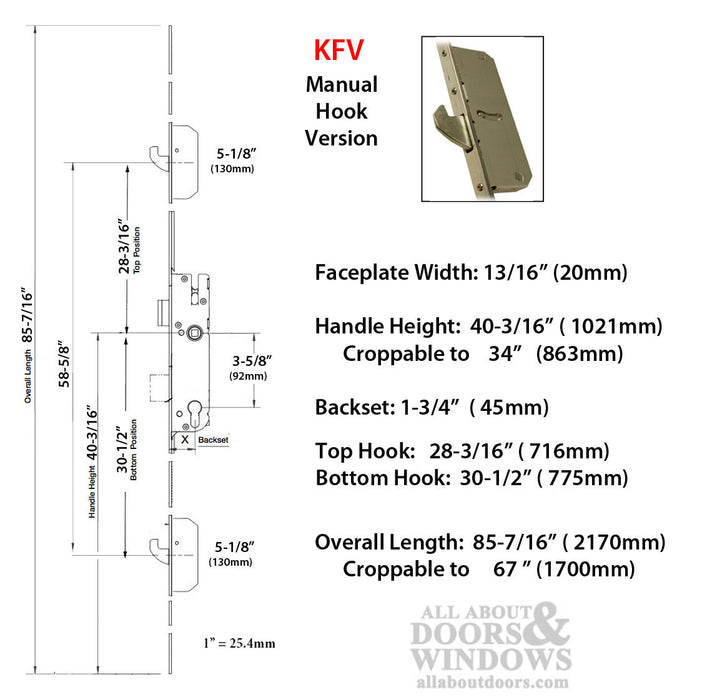

  • Top Hook Position: 28-3/16 inches (716mm)
  • Bottom Hook Position: 30-1/2 inches (775mm)
  • Configuration: 2 hooks, 1 deadbolt, spring latch
  • Handing: Non-handed (reversible springlatch)

Notes

  • Can be cut down to make single point locks
  • These locks are over 10 years old and are new but may show signs of age
  • Must be lubricated before installing
  • Faceplate is connected with rivets

Lock Operation

  • To Lock: Lift lever to extend 2 hooks, then use key or thumbturn to throw deadbolt and secure lock
  • To Unlock: Retract deadbolt with key or thumbturn, then depress lever to open door

This is discontinued old stock with limited inventory. Sold as-is with no returns. 3 or more available at $50 each plus shipping.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the key cylinder or thumbturn. On this lock, the PZ measurement is 92mm (3-5/8 inches).

Can this lock be used on left or right-handed doors?

Yes, this lock is non-handed. The springlatch can be reversed by removing the screw and flipping the latch to work on either door swing.

Can this multipoint lock be converted to a single point lock?

Yes, this lock can be cut down to create a single point lock if needed for your application.
