KFV Multipoint Lock – 45mm Backset, 92mm PZ, 20mm Faceplate

KFV Multipoint Lock – 45mm Backset, 92mm PZ, 20mm Faceplate

SKU 4991250

$180.00 - $180.00
$180.00
$180.00 - $180.00
$180.00
  • Backset: 1-3/4" (45mm)
  • PZ: 3-5/8" (92mm)
  • Faceplate Width: 20mm
  • Faceplate Length: 85.43" (2170mm)
  • Deadbolt Throw: 5/8" (16mm)
  • Bullet Roundbolt Throw: 25/32" (20mm)
  • Top Roundbolt Position: 28-3/4" (730mm)
  • Bottom Roundbolt Position: 29-15/16" (760mm)
  • Lock Type: Euro profile cylinder (key or thumbturn operated)
  • Locking Points: 2 bullet pins + 1 deadbolt
  • Handing: Non-handed (springlatch reversible)
  • Condition: New old stock, requires lubrication before installation
  • Sold individually – Discounted pricing available for 4+ units
Currently Unavailable
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

KFV Multipoint Lock – 45/92, 20mm Faceplate (4991250)

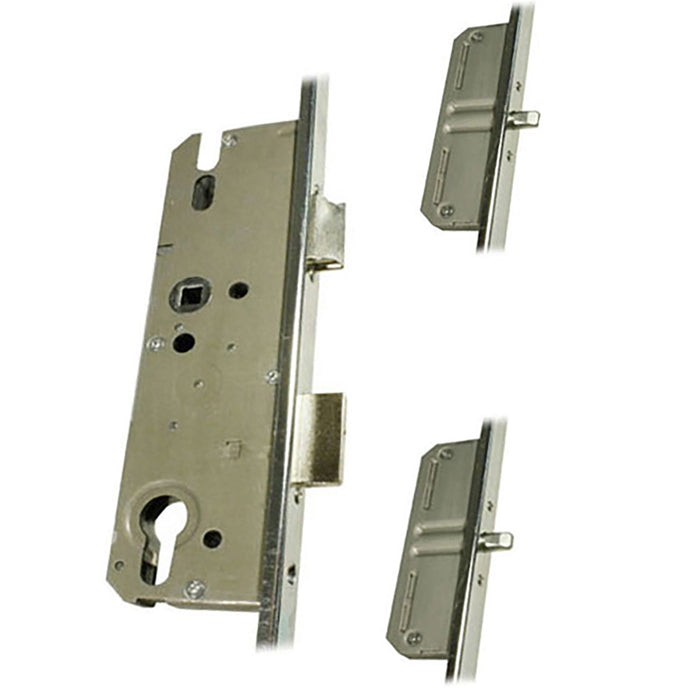

This KFV multipoint door lock features a 1-3/4 inch (45mm) backset and 92mm PZ (handle center to cylinder center). The lock operates with a lever-actuated system that extends two bullet pins when lifted, while the deadbolt is secured using a Euro profile cylinder with key or thumbturn operation.

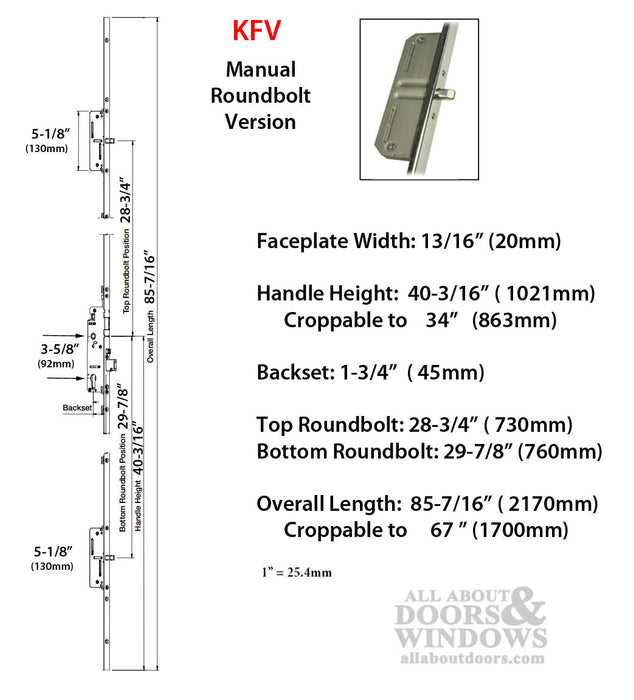

The faceplate measures 20mm wide and 85.43 inches (2170mm) in length, making this suitable for full-height door applications. The deadbolt throw is 5/8 inch (16mm), and the bullet roundbolts throw 25/32 inch (20mm). The top roundbolt is positioned at 28-3/4 inches (730mm) and the bottom roundbolt at 29-15/16 inches (760mm) from the handle center.

This lock is non-handed – the springlatch can be reversed by removing the screw and flipping the latch orientation. The faceplate is connected with rivets, and the deadbolt features a pin in the center as an identifying mark.

Technical Information

  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Faceplate Width: 20mm
  • Faceplate Length: 85.43 inches (2170mm)
  • Deadbolt Throw: 5/8 inch (16mm)
  • Bullet Roundbolt Throw: 25/32 inch (20mm)
  • Top Roundbolt Position: 28-3/4 inches (730mm)
  • Bottom Roundbolt Position: 29-15/16 inches (760mm)
  • Cylinder Type: Euro profile
  • Spring Latch: Yes

Notes

  • Old stock – over 10 years old but new/unused
  • Requires lubrication before installation due to extended storage
  • Can be cut down to create single point locks

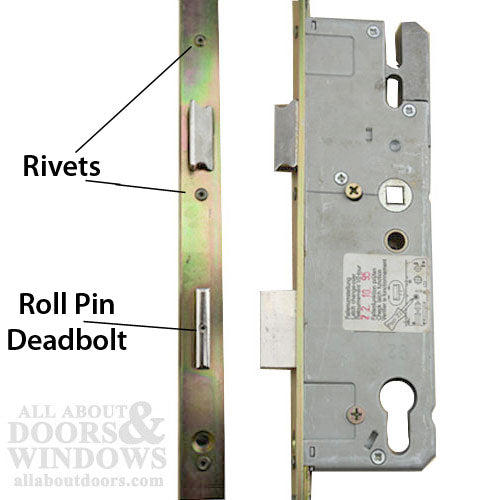

  • Identifying mark: Deadbolt has pin in center
  • Faceplate connected with rivets
  • Discontinued and limited to existing inventory
  • Non-returnable – please verify compatibility before ordering

Sold individually. Discounted pricing of $50 each available when purchasing 4 or more units (plus shipping).

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used on a left or right-hand door?

Yes, this lock is non-handed. The springlatch can be reversed by removing the screw and flipping the latch orientation.

What type of cylinder does this lock use?

This lock uses a Euro profile cylinder, which can be operated with a key or thumbturn.

Why does this lock need lubrication before installation?

This is new old stock that has been in storage for over 10 years. Lubrication ensures smooth operation of all moving parts.
