G-U/Ferco Rhino 5-Point Multipoint Lock Kit – 35mm Backset, 92mm PZ, Stainless Steel

G-U/Ferco Rhino 5-Point Multipoint Lock Kit – 35mm Backset, 92mm PZ, Stainless Steel

SKU 4990362-35-SS-KIT

$279.00 - $279.00
$279.00
$279.00 - $279.00
$279.00
  • PZ: 3-5/8" (92mm)
  • Backset: 35mm
  • Handle Height: 35" (889mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Finish: Stainless Steel
  • Overall Length: 79-1/4" (2060mm) – cropable for shorter heights
  • Lock Body Style: Europa (key below handle)
  • Cylinder Type: American cylinder with flat tail piece
  • 5-point locking system with 2 Rhino hookbolts, 2 shootbolts, and 1 deadbolt
  • Fits door panels up to 90" (2286mm) tall
  • Includes stainless steel screws to match faceplate
  • Priced and sold as a kit
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

G-U/Ferco Rhino 5-Point Lock Kit – 35/92, SS (4990362-35-SS-KIT)

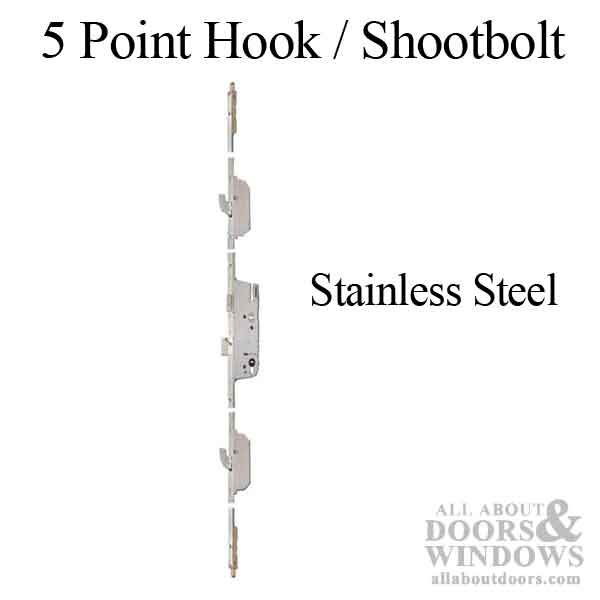

This G-U/Ferco Rhino active 5-point multipoint lock kit provides robust security for entry doors with its combination of 2 Rhino hookbolts, 2 shootbolts, and a deadbolt. Designed for door panels up to 90 inches tall, this lock system delivers reliable multi-point engagement along the full height of your door.

The lock features a 35mm backset and 92mm PZ (handle center to cylinder center) with a Europa-style lock body configuration where the key cylinder is positioned below the handle. The gear has an overall length of 79-1/4 inches but can be cropped to accommodate shorter door heights.

This kit uses an American cylinder with a flat tail piece and comes complete with stainless steel screws that match the stainless steel faceplate finish. For door panels taller than 90 inches, extensions are available separately.

Technical Information

  • Handle Height: 35 inches (889mm)
  • Backset: 35mm
  • PZ (Handle to Cylinder): 3-5/8 inches (92mm)
  • Overall Length: 79-1/4 inches (2060mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Handle to Top Hook: 22-38 inches (center to center)
  • Handle to Bottom Hook: 25-15/16 inches (center to center)
  • Cylinder Type: American cylinder with flat tail piece

Notes

  • Lock body style: Europa (key below handle)
  • Gear is cropable for shorter door heights
  • For doors taller than 90 inches, contact us for extension ordering information

Priced and sold as a kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder type does this G-U/Ferco lock use?

This lock uses an American cylinder with a flat tail piece.

Can this lock be shortened for doors under 90 inches?

Yes, the gear is cropable and can be cut down from its 79-1/4 inch maximum length to fit shorter door heights.

What is included in this lock kit?

The kit includes the main lock body with 2 Rhino hookbolts, 2 shootbolts, a deadbolt, and stainless steel screws to match the faceplate.
