Roto Multipoint Lock Gearbox – 35mm Backset, 92mm PZ, Alligator Teeth Style

SKU 40234-35

$146.14 - $146.14

$146.14

$146.14 - $146.14

$146.14

PZ: 92mm

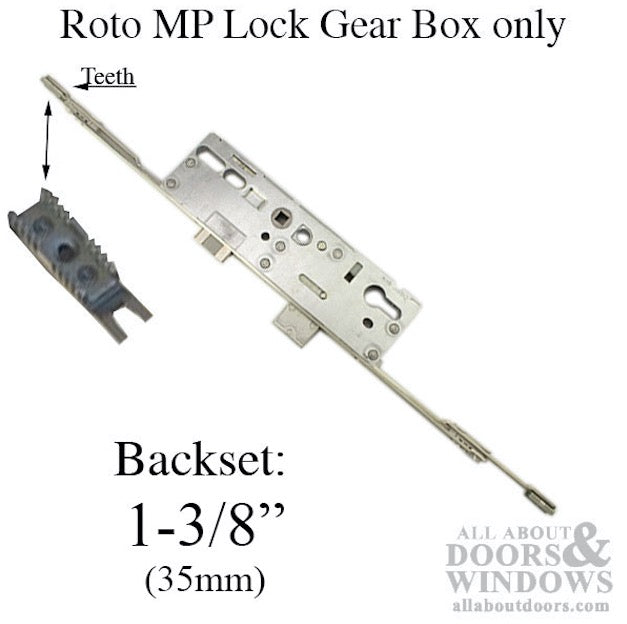

Backset: 1-3/8" (35mm)
Faceplate Width: 5/8" (16mm)
Faceplate Length: 15-3/4" (400mm)
Style: New style with alligator teeth (not compatible with older pin-style locks)
Stamped: "H 35/92 1113" and "Roto" on faceplate
Latch: Combination of metal and plastic, reversible handing
Operation: Lift handle to engage locking devices, turn cylinder to secure
Sold individually

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Roto Multipoint Lock Gearbox – 35/92 (40234-35)

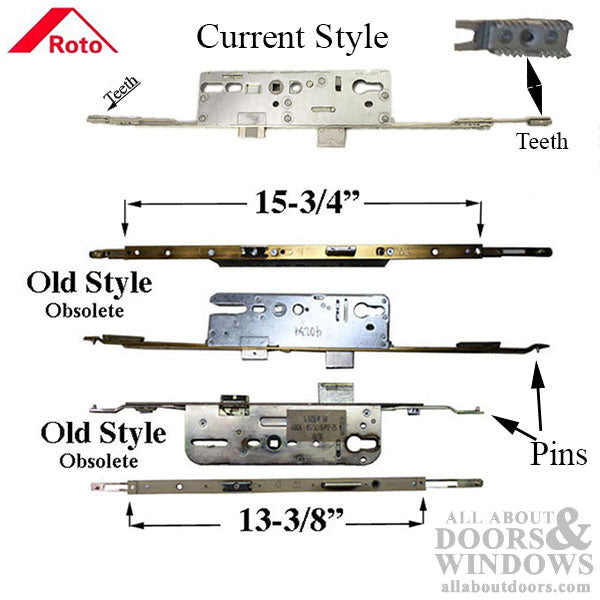

This Roto Multipoint Lock Gearbox is designed for use with current-style Roto multipoint locks. It features alligator teeth at the top and bottom for quick and secure attachment to upper and lower extensions. This new-style gearbox is not compatible with older Roto locks that use pins for connection.

The gearbox has a 1-3/8 inch (35mm) backset and 92mm PZ (handle center to cylinder center). The faceplate measures 5/8 inch (16mm) wide and 15-3/4 inches (400mm) long. The latch is a combination of metal and plastic construction.

Stamped With

"H 35/92 1113" on the lock body
"Roto" on the faceplate

Technical Information

PZ: 92mm
Backset: 35mm (1-3/8 inches)
Faceplate Width: 16mm (5/8 inch)
Faceplate Length: 400mm (15-3/4 inches)
Latch Material: Metal and plastic combination
Handing: Reversible

Notes

New style with alligator teeth on both ends

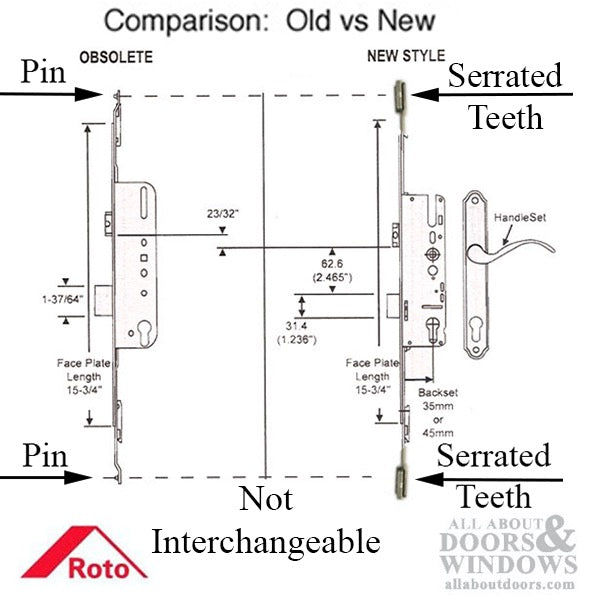

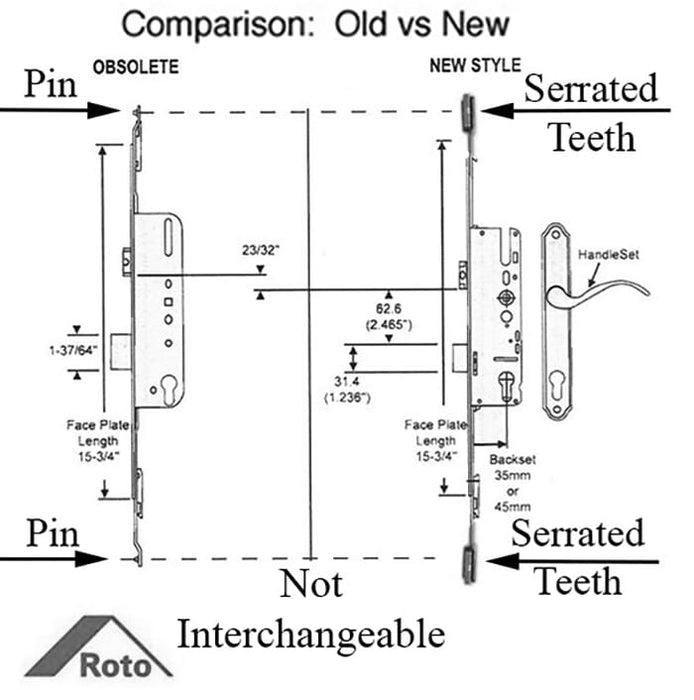

Not interchangeable with older pin-style Roto locks
Compare all features before ordering to ensure proper replacement

Operation

To Lock: Lift handle to engage locking devices and extend deadbolt. Turn cylinder thumb turn or key to secure door in locked position.

To Unlock: Turn cylinder thumb turn or key to unlock. Depress handle to retract deadbolt and unlock door.

To Change Latch Handing: Insert a small screwdriver into the round hole above the latch, push down on screwdriver handle, remove latch and reverse, then push back into the lock body.

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this gearbox is compatible with my Roto lock?

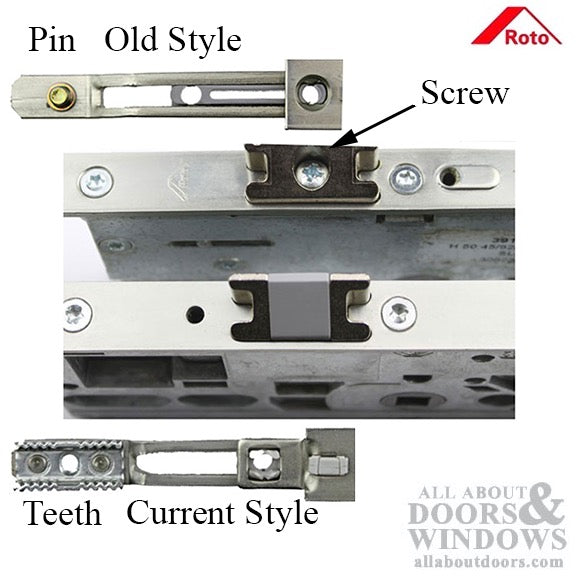

This gearbox features alligator teeth at the top and bottom for attachment. If your current lock uses pins instead of teeth for connection, this gearbox is not compatible with your older-style Roto lock.

Can I change the handing of the latch?

Yes, insert a small screwdriver into the round hole above the latch, push down on the handle, remove the latch, reverse it, and push it back into the lock body.

What does the 35/92 marking mean?

The 35 refers to the 35mm backset (distance from door edge to handle center), and 92 refers to the 92mm PZ (distance from handle center to cylinder center).
