G-U Multipoint Lock Case – 35mm Backset, 92mm PZ, Old Style

G-U Multipoint Lock Case – 35mm Backset, 92mm PZ, Old Style

SKU 40148

$135.00 - $135.00
$135.00
$135.00 - $135.00
$135.00
  • PZ: 3-5/8" (92mm)
  • Backset: 1-3/8" (35mm)
  • Spindle: 5/16" (8mm)
  • Cylinder Type: Euro profile cylinder
  • Operation: Lift lever
  • Lock case only – no faceplate included
  • Old style replacement – must match same size and shape lock case
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

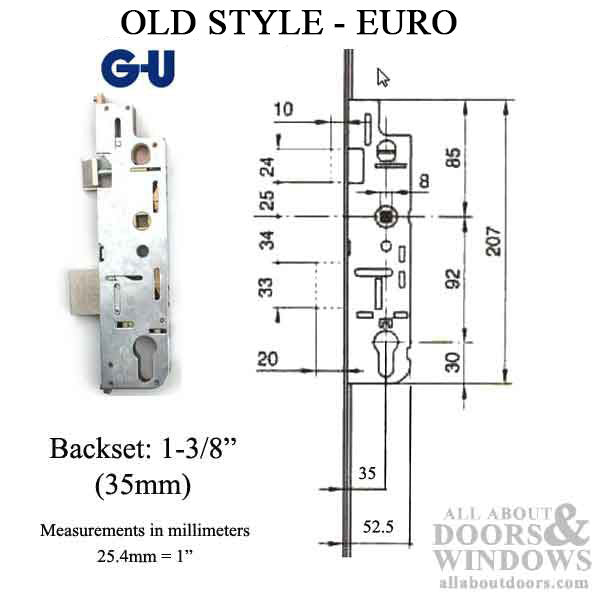

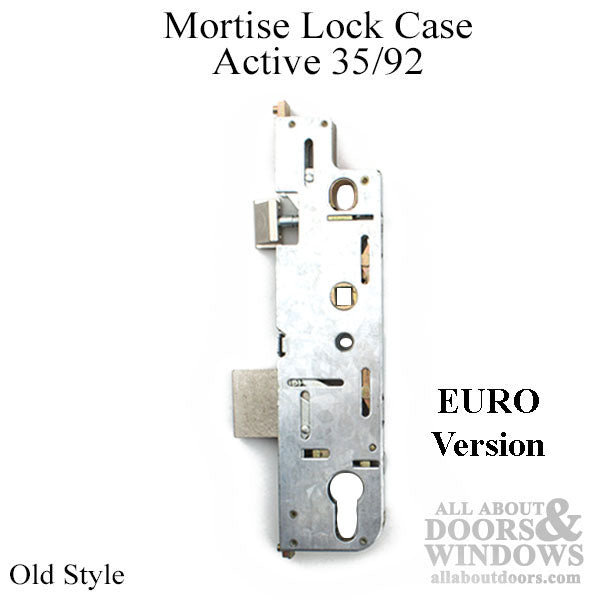

G-U Multipoint Lock Case – 35/92 (40148)

This G-U (Ferco) multipoint lock case is an old style replacement designed for Euro profile cylinder systems. It features a 1-3/8 inch (35mm) backset and 3-5/8 inch (92mm) PZ measurement, with a 5/16 inch (8mm) spindle and lift lever operation.

This is a lock case only – no faceplate is included. It is specifically designed to replace old style G-U multipoint lock cases and will only work on systems with the same size and shape lock case.

Technical Information

  • Lock Type: Euro profile cylinder
  • Backset: 1-3/8 inches (35mm)
  • Handle PZ: 3-5/8 inches (92mm)
  • Spindle: 5/16 inches (8mm)
  • Operation: Lift lever
  • Faceplate: None (lock case only)

Notes

  • This lock case is only compatible with old style G-U multipoint locks with matching size and shape
  • Available in 30mm or 35mm backset configurations

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this lock case will fit my door?

This old style G-U lock case only fits multipoint locks with the exact same size and shape lock case. Measure your existing lock case dimensions and compare to the 35mm backset and 92mm PZ specifications.

What type of cylinder does this lock use?

This lock case uses a Euro profile cylinder, which is a standard European-style cylinder commonly found in multipoint locking systems.

Does this include a faceplate?

No, this is a lock case only. The faceplate is not included and must be sourced separately if needed.
