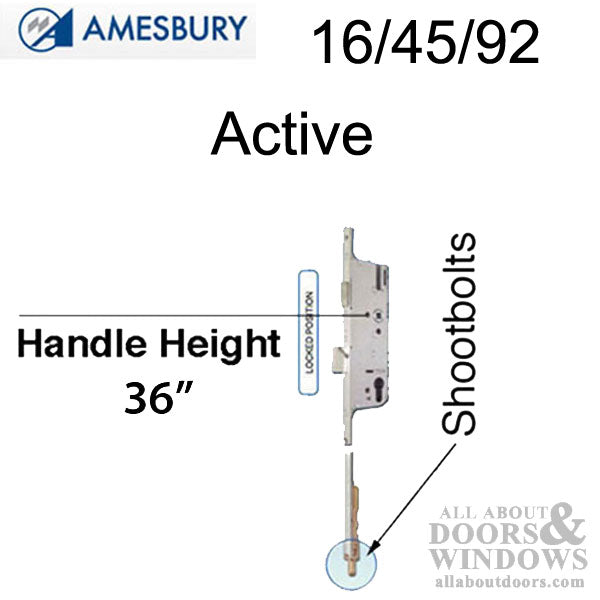

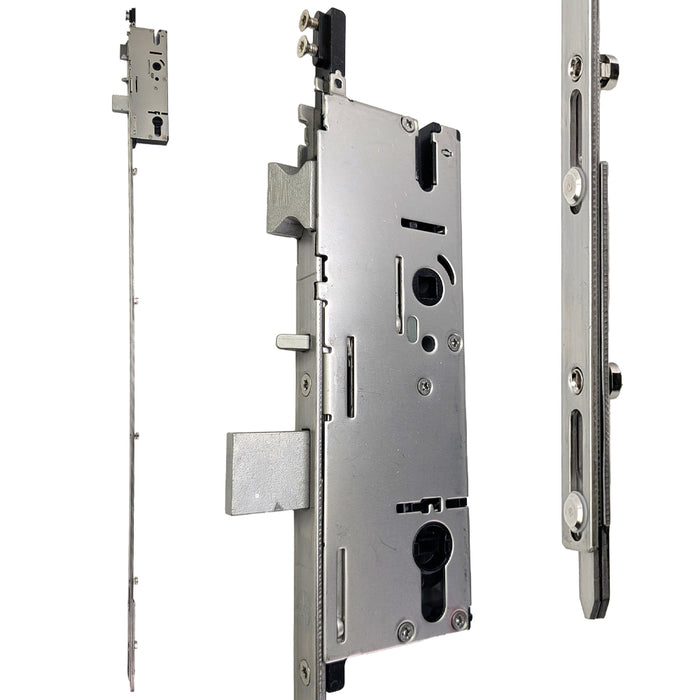

GU P2000 Active Lower Gear with Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height

GU P2000 Active Lower Gear with Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height

SKU 16-8145-2310

$297.38 - $297.38
$297.38
$297.38 - $297.38
$297.38
  • PZ: 92mm
  • Backset: 45mm (1.77")
  • Handle Height: 36" (914.4mm)
  • Faceplate Width: 16mm
  • Markings: Front LF2310 / Back LD2310
  • Active lower gear with shootbolt for P2000 multipoint systems
  • Used mostly as a 3-point locking system
  • When paired with appropriate upper extension and shoot tip, fits doors from 69" to 121.5" (1752.6mm to 3086.1mm)
  • Latch handing can be reversed in the field
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU P2000 Active Lower Gear with Shootbolt – 45/92, 36" HH (16-8145-2310)

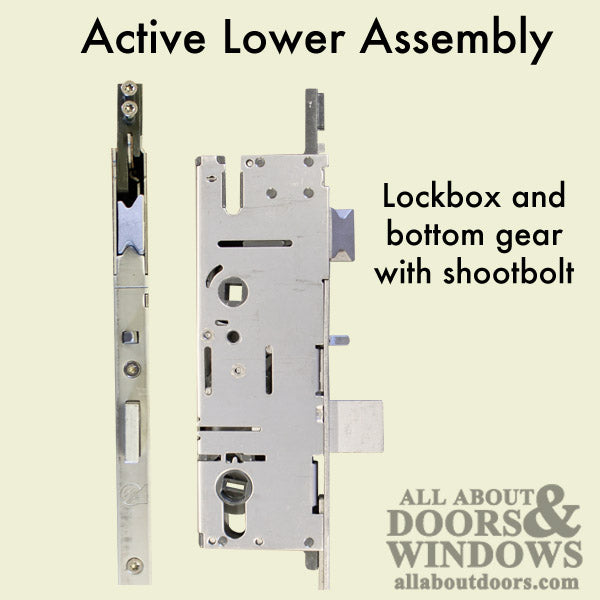

This GU P2000 active lower gear with shootbolt is designed for multipoint locking systems. It features a 45mm backset, 92mm PZ (handle center to cylinder center), and a 36-inch handle height. The 16mm faceplate width makes it compatible with standard P2000 door preparations.

This gear is primarily used as part of a 3-point locking system. When combined with the appropriate upper extension and shoot tip, it can accommodate doors ranging from 69 inches to 121.5 inches in height.

Stamped With

  • Front: LF2310
  • Back: LD2310

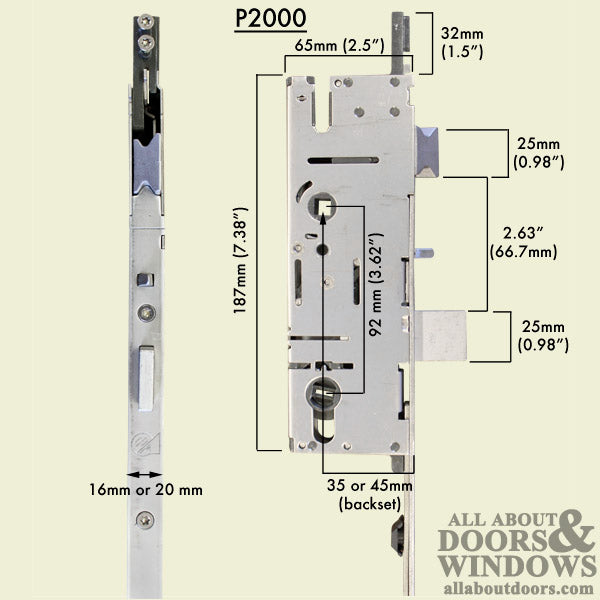

Technical Information

  • PZ: 92mm
  • Backset: 45mm (1.77 inches)
  • Handle Height: 36 inches (914.4mm)
  • Faceplate Width: 16mm
  • Door Height Range: 69 inches to 121.5 inches (with appropriate extensions)

Notes

  • When used with gears 8135-2310-81LA or 8145-2310-81-LA and shootbolt 5670-81, fits doors with panel length 69 inches minimum to 82.5 inches maximum with 36-inch handle height
  • Latch handing can be reversed: extend deadbolt, pull spring latch out, rotate to correct position, and check function before closing door

Related Parts

  • 8145-2310-81-LA – Bottom Gear with Shootbolt
  • 5670-81 – Top Shootbolt
  • 16-2094-UA – Middle Extension for 69" to 82.5" doors
  • 16-2095-UA – Middle Extension for 82" to 95.5" doors
  • 16-2096-UA – Middle Extension for 95" to 108.5" doors
  • 16-2097-UA – Middle Extension for 108" to 121.5" doors

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door heights does this gear fit?

When paired with the appropriate upper extension and shoot tip, this gear fits doors ranging from 69 inches to 121.5 inches in height.

Can the latch handing be reversed?

Yes. Extend the deadbolt, pull the spring latch out, rotate it to the correct position, and check the function before closing the door.

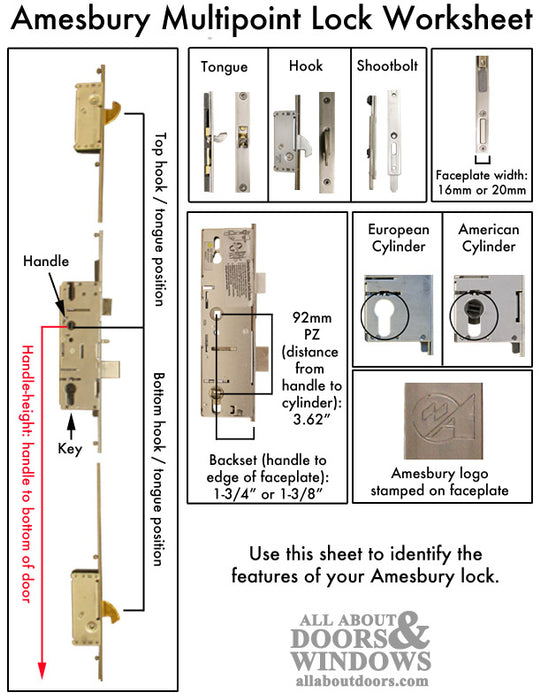

What does PZ mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This gear has a 92mm PZ measurement.
