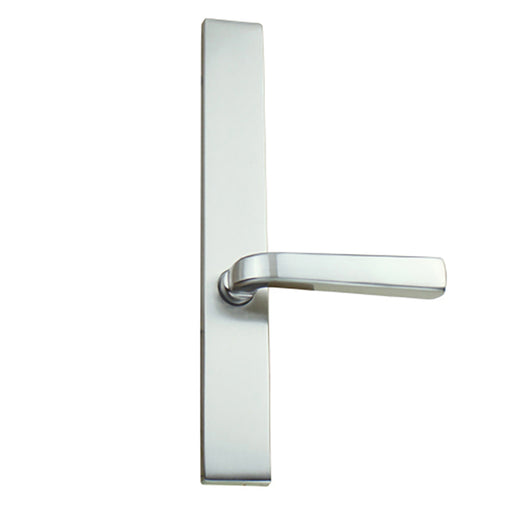

Emtek 7-9/16" Screw Holes Key Above Lever Handleset Trim

Emtek 7-9/16 Inch Screw Hole Handleset Trim for BiltBest, Hurd, and G-U Doors

Finding the right replacement handleset trim for multipoint lock systems requires precise measurements and brand compatibility knowledge. MPLocks carries Emtek Configuration #2 trim designed specifically for doors manufactured by BiltBest, G-U, Hurd (Energy Saver), and certain Andersen models. These handlesets feature a 7-9/16 inch center-to-center measurement between thru-bolt holes, combined with the key cylinder positioned above the lever—a configuration that matches the factory specifications for these door brands.

Precision Fit for American Cylinder Multipoint Systems

The 3-5/8 inch (92mm) lever-to-cylinder spacing on these Emtek trim sets accommodates American-style cylinders, which are standard on many domestic door brands. This configuration differs from European-style setups where the cylinder sits below the handle. The solid brass construction and quality finishes like medium bronze and satin nickel ensure these handlesets match both the durability and aesthetic standards of your original hardware while providing years of reliable operation.

Active and Dummy Configurations Available

Whether you need a fully functional keyed handleset for your primary entry or a dummy pair for decorative purposes on fixed panels, this collection includes options for both scenarios. Dummy configurations work well for single doors where the interior side doesn't require active locking hardware, or for the stationary leaf on double-door setups. Each trim set is designed to mount directly to existing multipoint lock mechanisms without modification.

• Emtek Multipoint Lock Handleset Trim
• American Cylinder Ashland Handle Sets
• G-U Ferco Multipoint Lock Hardware

Measuring for Your Replacement Handleset

Before ordering, confirm your thru-bolt center-to-center measurement by measuring from the center of the top mounting hole to the center of the bottom mounting hole on your existing escutcheon plate—this should be 7-9/16 inches. Also verify whether your cylinder sits above or below the lever when viewing the door from outside. Hand orientation (left or right) is determined by which side the hinges are located when standing outside facing the door.

If you're unsure whether this configuration matches your door, our team is ready to help you confirm the right part. Call (816) 221-6543 to speak with a real expert, or use our free Multipoint Lock Identifier to submit your lock details for a personalized recommendation.
