Amesbury Germania Handleset with Lara Plate – 68mm PZ, Satin Nickel/Oil Rubbed Bronze

SKU: MG2N-AR00

Sold out

$245.70 - $245.70

$245.70

$245.70 - $245.70

$245.70

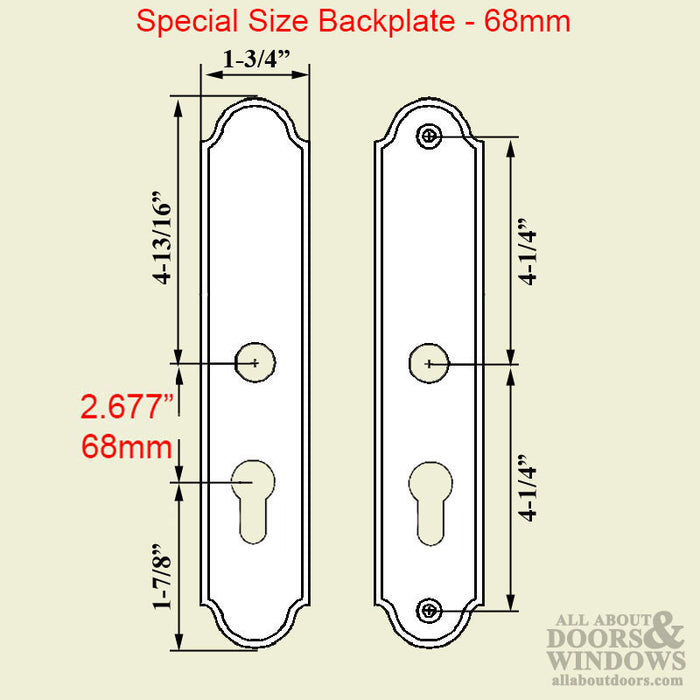

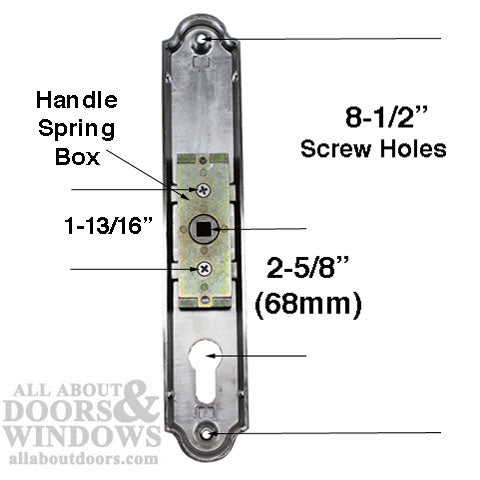

PZ (Handle to Cylinder Spacing): 2-5/8" (68mm) – SPECIAL SIZE, NOT STANDARD
Cylinder Type: Euro, standard 360 degree (cylinder NOT included)
Lever Style: Germania (curved)
Plate Style: Lara (arch top)
Finish: Satin Nickel or Oil Rubbed Bronze
Door Thickness: Fits 1-3/4" (45mm) to 2-1/4" (57mm) thick doors
Spindle Diameter: 5/16" (8mm)
Spindle Length: 4-15/16" (125mm)
Function: Active handleset – key outside, thumbturn inside
Handed: Reversible for left or right hand
Screw Thread: Metric M4
Discontinued – limited to existing inventory

This part has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Amesbury Germania Handleset – 68mm PZ, Satin Nickel/ORB (MG2N-AR00)

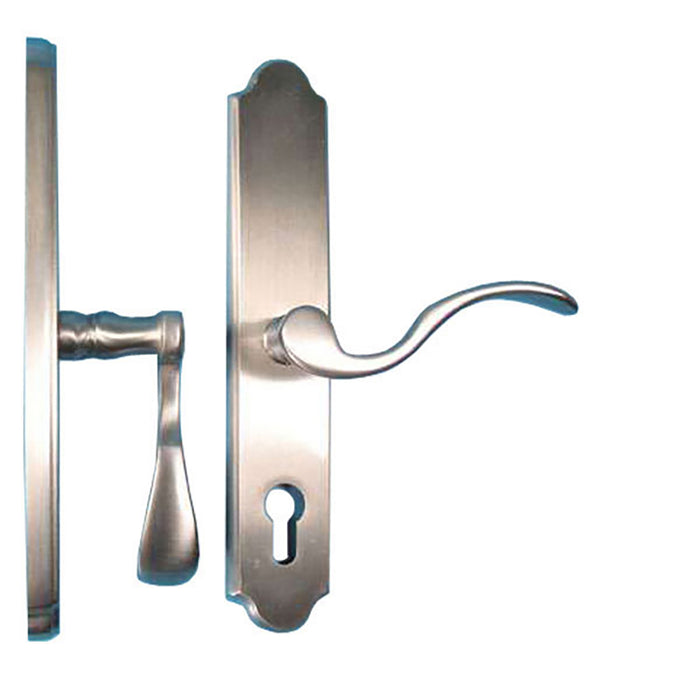

This Amesbury/Schlegel active handleset features the elegant Germania curved lever with the Lara arch-top backplate. Please note this is a special, non-standard size with a 2-5/8 inch (68mm) handle-to-cylinder spacing (PZ), which differs from the common 92mm PZ found on most multipoint hardware.

The handleset functions as an active entry set with key operation on the exterior and a thumbturn on the interior. It accepts a standard Euro profile cylinder with 360-degree rotation. The cylinder is NOT included and must be ordered separately based on your door thickness.

This set is reversible and can be configured for either left-hand or right-hand doors. The handles attach to the plates using external C-clips, which can be removed to reverse the handing as needed. The set screw secures the spindle shaft to the handles.

Technical Information

PZ (Handle to Cylinder Spacing): 2-5/8 inches (68mm) – SPECIAL SIZE
Cylinder Type: Euro profile, 360 degree
Lever Style: Germania (curved)
Plate Style: Lara (arch top)
Spindle Diameter: 5/16 inch (8mm)
Spindle Length: 4-15/16 inches (125mm)
Door Thickness: 1-3/4 inches (45mm) to 2-1/4 inches (57mm)
Screw Thread: Metric M4
Oval Head Screw Length: 2-15/16 inches (75mm)
Finish Options: Satin Nickel or Oil Rubbed Bronze

Notes

Cylinder NOT included – contact us with your door thickness to determine the correct cylinder length
To determine cylinder length: Add door thickness plus inside plate thickness (approximately 1/2 inch) plus outside plate thickness (approximately 1/2 inch)
Example: 1-3/4 inch door + 1/2 inch inside plate + 1/2 inch outside plate = 2-3/4 inches (70mm) or 35/35 cylinder
May fit thicker doors with longer screws, spindle, and cylinder
Keyway: Typically Schlage SC1 (confirm before ordering)

This product is discontinued and limited to existing inventory.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder do I need for this handleset?

This handleset requires a Euro profile cylinder. The cylinder length depends on your door thickness – add your door thickness plus approximately 1 inch for the plate thicknesses. Contact us with your door thickness for assistance.

Can this handleset be used on a left-hand or right-hand door?

Yes, this handleset is reversible. Remove the external C-clips from the handles to reconfigure for left-hand or right-hand operation.

What does the 68mm PZ measurement mean?

PZ refers to the distance from the center of the handle to the center of the cylinder (thumbturn). This handleset has a non-standard 68mm PZ spacing, so verify your door's PZ before ordering.
