800A Series Inactive Handle Set – 92mm PZ, Brass

SKU:

$260.00 - $260.00

$260.00

$260.00 - $260.00

$260.00

Function: Inactive (no key, no thumb-turn)
PZ: 92mm (handle center to cylinder center)
Screw Hole Centers: 8-7/16" (214.3mm)
Plate Dimensions: 9-5/8" x 1-1/4" x 1/2" (244.5mm x 31.8mm x 12.7mm)
Spindle: 5/16" (8mm) square
Material: Brass
Finish Options: Lifetime Satin Nickel or Lifetime Polished Brass
Handing: Non-handed (works for left or right applications)
Compatible with key above or key below orientations
Works with American cylinder
Compatible with Amesbury and most multipoint lock brands
Non-stock item – 90 day lead time; call for availability

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

800A Series Inactive Handle Set – Brass (395227B)

This 800A Series inactive handle set provides an elegant solution for the non-keyed side of your multipoint door system. Featuring solid brass construction, this trim set includes no key cylinder and no thumb-turn, making it ideal for doors where locking control is handled from the opposite side.

The handle set is designed to work with American cylinders and is compatible with Amesbury multipoint locks as well as most other multipoint lock brands. The non-handed design means this trim works for both left-hand and right-hand door applications without modification.

One versatile feature of this trim is its ability to be installed in either the traditional American orientation with the thumb-turn position above the handle, or in the inverted European style. This flexibility allows you to match existing hardware or personal preference.

Technical Information

Series: 800A
Function: Inactive (no key, no thumb-turn)
Lever Style: 800
Plate Style: A
Material: Brass
PZ (Handle Center to Cylinder Center): 3-5/8 inches (92mm)
Screw Hole Centers: 8-7/16 inches (214.3mm)
Plate Length: 9-5/8 inches (244.5mm)
Plate Width: 1-1/4 inches (31.8mm)
Plate Depth: 1/2 inch (12.7mm)
Spindle Diameter: 5/16 inch (8mm) square
Cylinder Type: American cylinder
Handing: Non-handed
Key Position: Compatible with key above or key below applications

Notes

Available in Lifetime Satin Nickel or Lifetime Polished Brass finishes
Non-stock item with 90 day lead time
Call the office for availability prior to placing your order
Easily rekeyed with simple installation

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

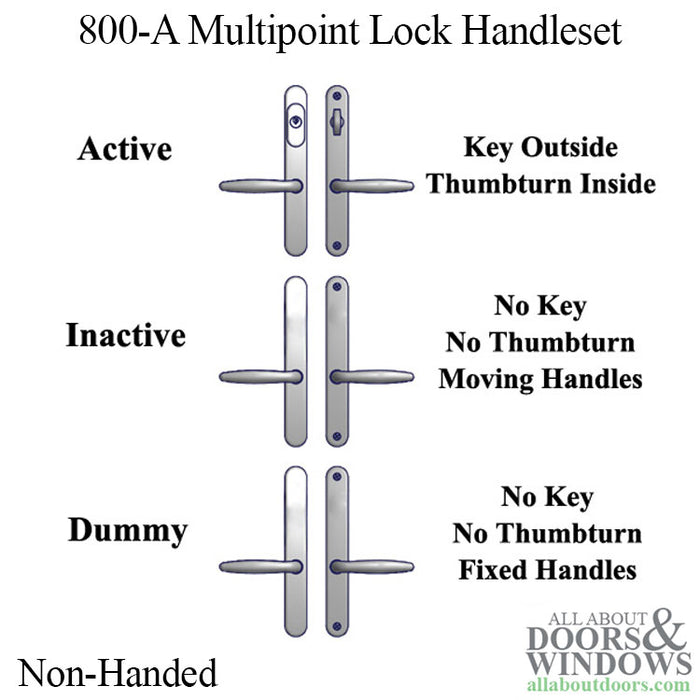

What does 'inactive' function mean for this handle set?

Inactive means this handle set has no key cylinder and no thumb-turn. It's designed for the non-locking side of a door where the lock is controlled from the opposite side.

Can this handle set be installed on either a left-hand or right-hand door?

Yes, this trim is non-handed, meaning it works for both left-hand and right-hand door applications without any modification.

What multipoint locks is this handle set compatible with?

This handle set works with Amesbury multipoint locks as well as most other multipoint lock brands that use a 92mm PZ (handle center to cylinder center) measurement.
