Amesbury 800 C Regency Keyed Handleset – 92mm PZ, Zinc

SKU:

$128.43 - $238.81

$128.43

$128.43 - $238.81

$128.43

PZ (Handle to Cylinder): 3-5/8" (92mm)
Cylinder Type: American with flat tail piece (Schlage 5-pin SC1 keyway)
Function: Active keyed outside, thumbturn inside
Escutcheon Style: C Style with slight arch top
Escutcheon Plate Height: 9.47" (240.5mm)
Escutcheon Plate Width: 1.79" (45.5mm)
Screw Hole Spacing: 7-7/8" (199.9mm)
Door Thickness: 1-3/4" (44.5mm)
Handle Projection: 1.23" (31.2mm)
Handle Length: 4.72" (119.9mm)
Base Material: Zinc with PVD finish option for coastal areas
Handing: Non-handed (works on either side)
Works with key above or key below handle applications
Spring loaded cassette for added lever action
Lead Time: Non-stock handle sets have a 90-day lead time

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

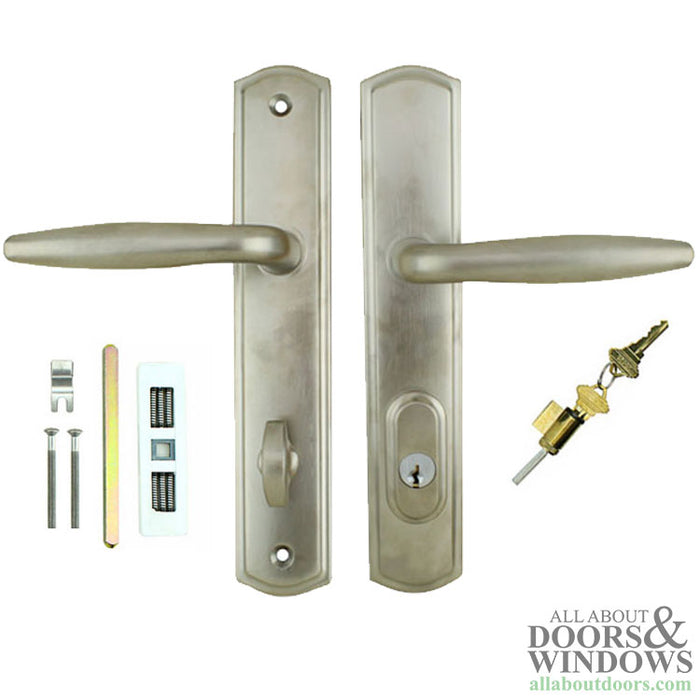

Amesbury 800 C Regency Keyed Handleset – Zinc (395220Z)

This Amesbury 800 C Regency series keyed handleset features a straight lever design with a slight arched top escutcheon plate. Designed for primary active doors with multipoint locks, this handleset provides keyed entry on the exterior with a convenient thumbturn on the interior.

The handleset is compatible with most multipoint lock systems and replaces hardware on Integrity by Marvin, Milgard, and G-U/Ferco doors, as well as other American version multipoint locks. The non-handed design means it works regardless of which side of the door the handle is mounted.

Built with a zinc substrate, this handleset is available with a PVD (Physical Vapor Deposition) finish option that resists tarnishing and discoloration, making it ideal for coastal environments. The spring-loaded cassette mechanism provides smooth, reliable lever action.

Technical Information

PZ (Handle to Cylinder): 3-5/8 inches (92mm)
Cylinder Type: American with flat tail piece
Keyway: Schlage 5-pin, SC1 key blank (optional Kwikset-Weiser composite keyway available)
Door Thickness: 1-3/4 inches (44.5mm)
Escutcheon Plate Style: C Style - Slight Arch Top
Escutcheon Plate Width: 1.79 inches (45.5mm)
Escutcheon Plate Height: 9.47 inches (240.5mm)
Screw Hole Spacing: 7-7/8 inches (199.9mm)
Handle Projection: 1.23 inches (31.2mm)
Handle Clearance: 2.00 inches (50.8mm)
Handle Length: 4.72 inches (119.9mm)
Base Material: Zinc
Handing: Non-handed

Notes

Available colors and finishes: Satin Nickel, Wet White, Vision Tan, Pebble, Dark Oil Rubbed Bronze, Brown Oil Rubbed Bronze, Faux Oil Rubbed Bronze, Black, Brushed Chrome, Polished Brass PVD, Satin Nickel PVD, Polished Chrome PVD, Oil Rubbed Bronze PVD
PVD finishes are recommended for coastal areas due to superior tarnish and discoloration resistance
Can be used for key above handle or key below handle applications
Non-stock handle sets have a 90-day lead time. Call the office for availability prior to placing your order.

Related Parts

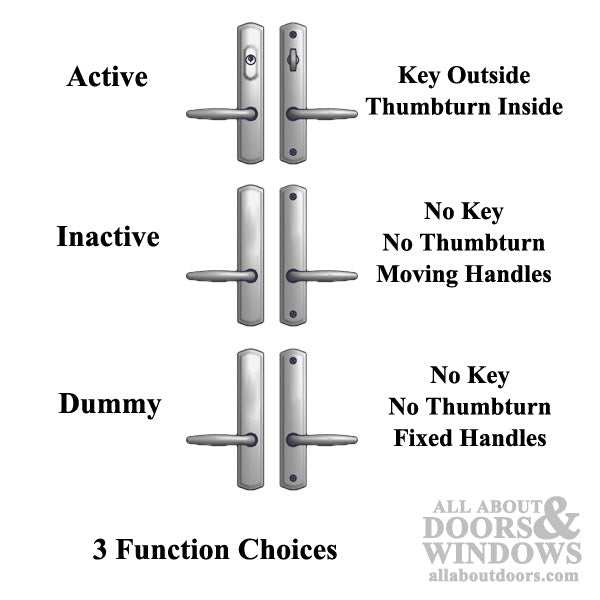

395220B - Active Handleset in Solid Brass
395221Z - Inactive Handleset in Zinc
395221B - Inactive Handleset in Solid Brass
395222Z - Dummy Handleset in Zinc
395222B - Dummy Handleset in Solid Brass

For double French doors, order 1 active keyed handleset and 1 inactive or 1 dummy handleset.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ, which is a common measurement for multipoint locks.

Is this handleset handed?

No, this handleset is non-handed, meaning it works regardless of which side of the door the handle is mounted on.

What is the difference between PVD and standard finishes?

PVD (Physical Vapor Deposition) finishes provide superior resistance to tarnishing and discoloration, making them ideal for coastal areas or high-humidity environments.
