Amesbury P2000 Active Multipoint Gear with Tongue – 45mm Backset, 92mm PZ, 36" Handle Height

SKU: 16-8145-2113

$158.34 - $158.34

$158.34

$158.34 - $158.34

$158.34

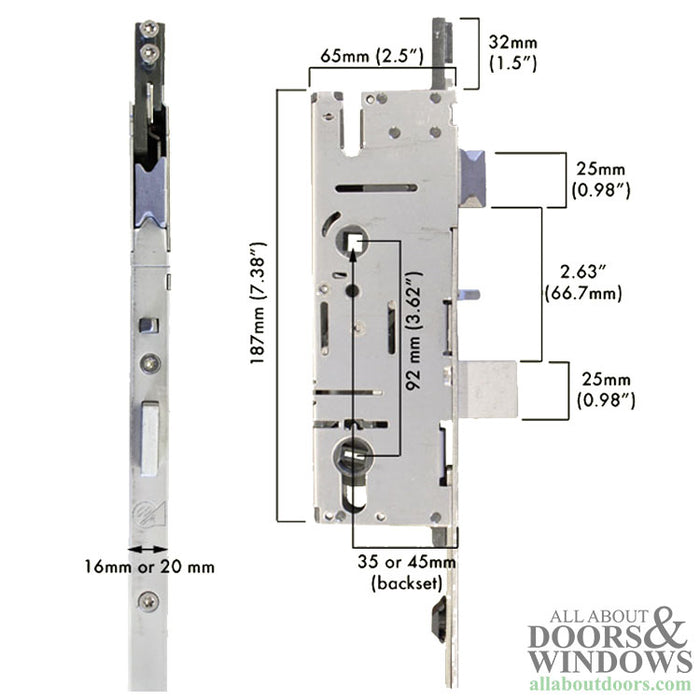

PZ: 92mm (3-5/8")
Backset: 45mm (1-3/4")
Handle Height: 36" (914mm)
Faceplate Width: 16mm (5/8")
Bottom Tongue Position: 26.42" (671mm)
Cylinder Type: American
Material: Stainless Steel
Stamped on Front: LF2113
Stamped on Back: LD2113
Tongue version designed for use with astragals
Compatible with doors from 69" to 108.5" when paired with appropriate upper extension
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Amesbury P2000 Active Multipoint Gear – 45/92, Tongue (16-8145-2113)

The Amesbury P2000 16mm Active Gear with Tongue Locking System is a 3-point multipoint lock component designed for use with American cylinders. This gear features a 45mm (1-3/4 inch) backset, 92mm PZ, and a 16mm (5/8 inch) faceplate width. The handle height measures 36 inches (914mm), and the bottom tongue position is located at 26.42 inches (671mm) from the gear.

Tongue versions of this gear are specifically designed for use with astragals. When paired with the appropriate upper extension, this gear can accommodate door heights ranging from 69 inches to 108.5 inches, making it a versatile choice for various door configurations.

Stamped With

Front of gear: LF2113
Back of gear: LD2113

Technical Information

Backset: 45mm (1-3/4 inches)
PZ: 92mm (3-5/8 inches)
Handle Height: 36 inches (914mm)
Faceplate Width: 16mm (5/8 inch)
Bottom Tongue Position: 26.42 inches (671mm)
Cylinder Type: American
Material: Stainless Steel
Door Height Range: 69 inches to 108.5 inches (with appropriate upper extension)

Notes

Tongue versions are used with astragals
Rhino and Shootbolt versions can be used with or without astragal

Related Parts

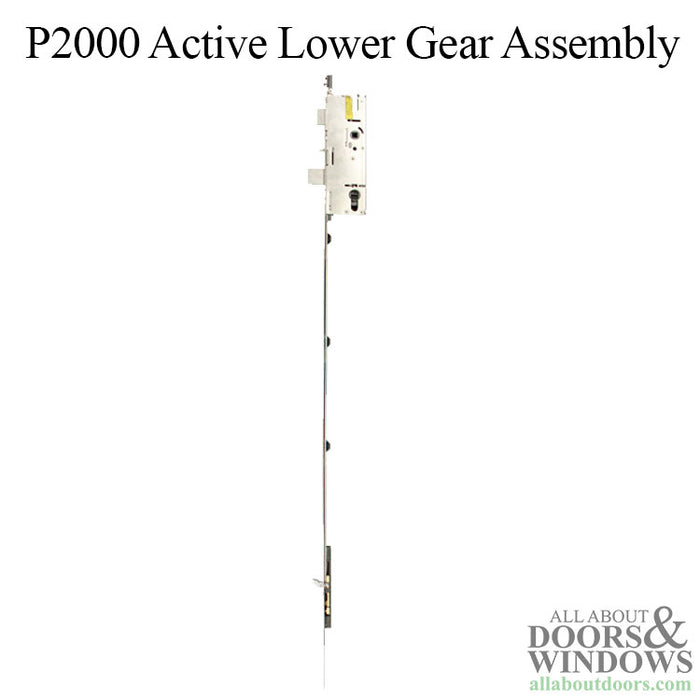

8145-2113-81-LA - Bottom Gear with Tongue
16-2084-UA - Upper Extension for 69" to 82.5" doors (tongue position 18.92")
16-2085-UA - Upper Extension for 82" to 95.5" doors (tongue position 26.39")
16-2086-UA - Upper Extension for 95" to 108.5" doors (tongue position 32.89")

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between tongue, rhino, and shootbolt versions?

Tongue versions are specifically designed for use with astragals, while rhino and shootbolt versions can be used with or without an astragal.

What door heights does this gear support?

When paired with the appropriate upper extension, this gear can fit doors ranging from 69 inches to 108.5 inches in height.

How do I identify this gear on my door?

Look for the stamped numbers LF2113 on the front of the gear or LD2113 on the back.
