WinkHaus 4-Point Multipoint Lock – 45mm Backset, 92mm PZ (Discontinued)

WinkHaus 4-Point Multipoint Lock – 45mm Backset, 92mm PZ (Discontinued)

SKU: 499117699

  • Status: Discontinued – see replacement information below
  • PZ: 92mm
  • Backset: 45mm

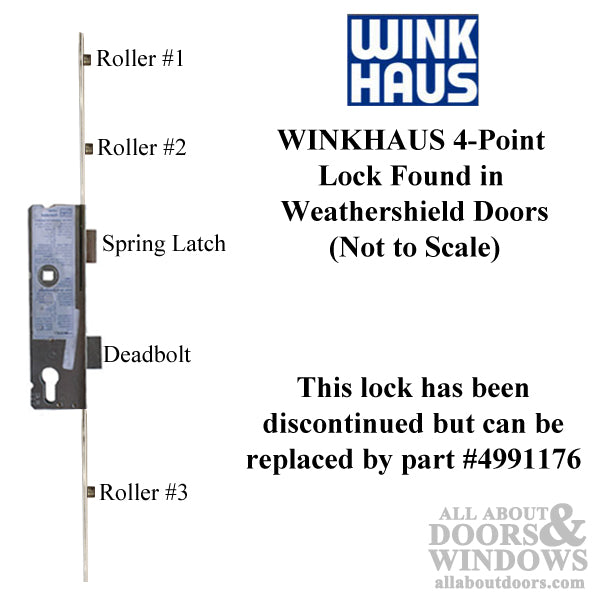

  • Configuration: 4-point lock with 3 rollers
  • Bottom Roller: 26-1/2" (673mm) down from handle
  • Middle Roller: 26-1/2" (673mm) up from handle
  • Top Roller: 47-1/2" (1207mm) up from handle
  • Compatibility: Weather Shield hinged patio doors (pre-March 2002), ProShield hinged patio doors (pre-August 2004), Visions hinged patio doors (pre-February 2004)
  • Replacement: HOPPE 3-Point Lock 4991176
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

WinkHaus 4-Point Multipoint Lock (499117699)

This WinkHaus 4-point multipoint lock was originally used in Weather Shield, ProShield, and Visions hinged patio doors manufactured in the early 2000s. This lock features a 45mm backset and 92mm PZ measurement, with three rollers positioned at specific distances from the handle.

This lock has been discontinued and is no longer available.

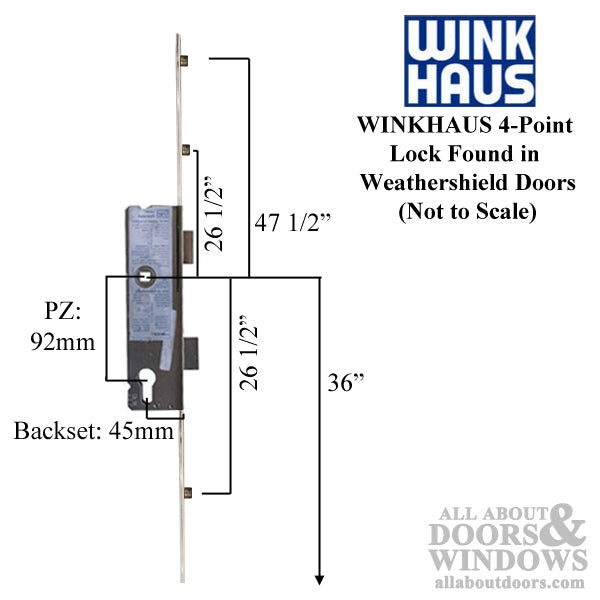

Technical Information

  • Backset: 45mm
  • PZ: 92mm
  • Lock Type: 4-point with 3 rollers
  • Bottom Roller Position: 26-1/2 inches (673mm) down from handle
  • Middle Roller Position: 26-1/2 inches (673mm) up from handle
  • Top Roller Position: 47-1/2 inches (1207mm) up from handle

Notes

  • Used in Weather Shield hinged patio doors made prior to March 2002
  • Used in ProShield hinged patio doors made prior to August 2004
  • Used in Visions hinged patio doors made prior to February 2004

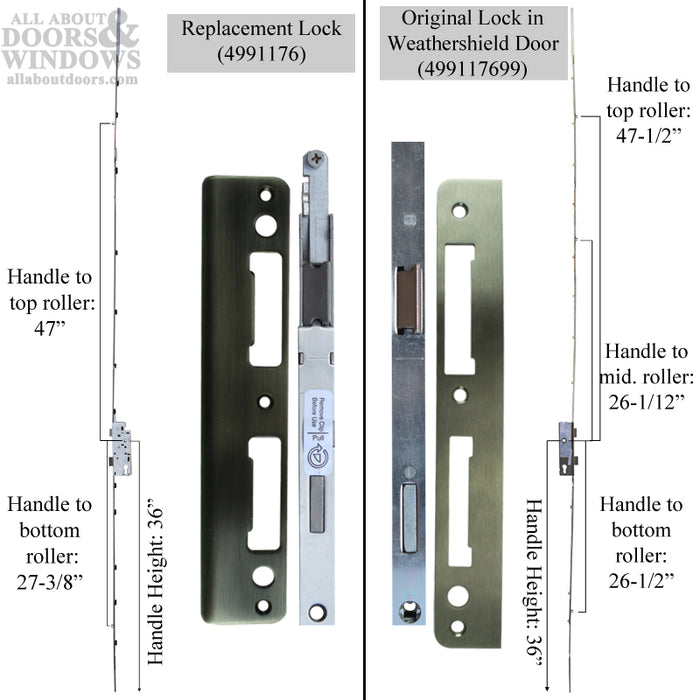

  • The replacement HOPPE 3-point lock has 2 rollers (one below and one above the handle). The middle roller strike from the original lock will be unused and can be removed or left in place.

Replaces / Replaced by

Related Parts

  • 4991176 - HOPPE 3-Point Replacement Lock

For installation guidance, see the Replacement Guide: How to Replace 4-Point Winkhaus Roller Lock in a Weather Shield Door.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What lock replaces the WinkHaus 4-point multipoint lock?

The HOPPE 3-Point Lock (part number 4991176) is the recommended replacement. Note that the replacement has 2 rollers instead of 3, so the middle roller strike can be removed or left in place.

How do I know if this lock fits my door?

This lock was used in Weather Shield hinged patio doors made before March 2002, ProShield doors before August 2004, and Visions doors before February 2004. Verify your backset is 45mm and PZ is 92mm.

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole), measured in millimeters. This lock has a 92mm PZ.
