Winkhaus 5-Point Multipoint Lock with Rollers and Shootbolts – 45mm Backset, 92mm PZ

Winkhaus 5-Point Multipoint Lock with Rollers and Shootbolts – 45mm Backset, 92mm PZ

SKU: 499117599

See Description
  • PZ: 92mm (3-5/8")
  • Backset: 45mm (1-3/4")
  • Configuration: 5-point lock with 2 rollers and top/bottom shootbolts
  • Door Panel Height: Fits 92" to 96" (2337mm to 2438mm) tall doors
  • Bottom Roller Position: 26-1/2" (673mm) down from handle
  • Top Roller Position: 33-7/16" (849mm) up from handle

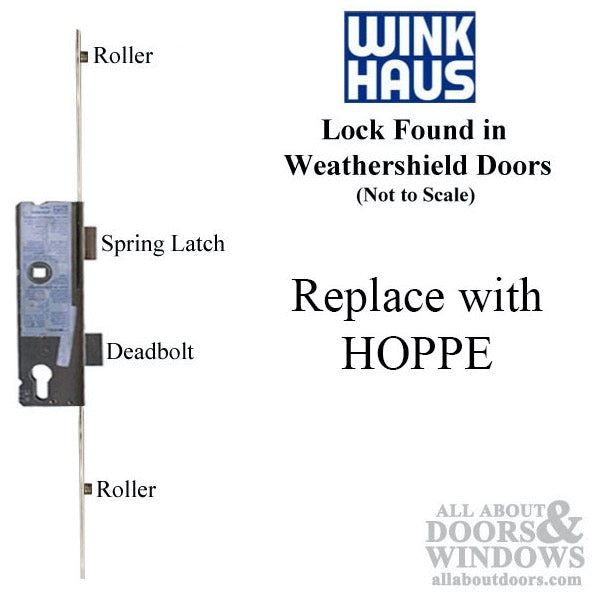

  • Compatibility: Weathershield hinged patio doors (pre-March 2002), ProShield hinged patio doors (pre-August 2004), Visions hinged patio doors (pre-February 2004)

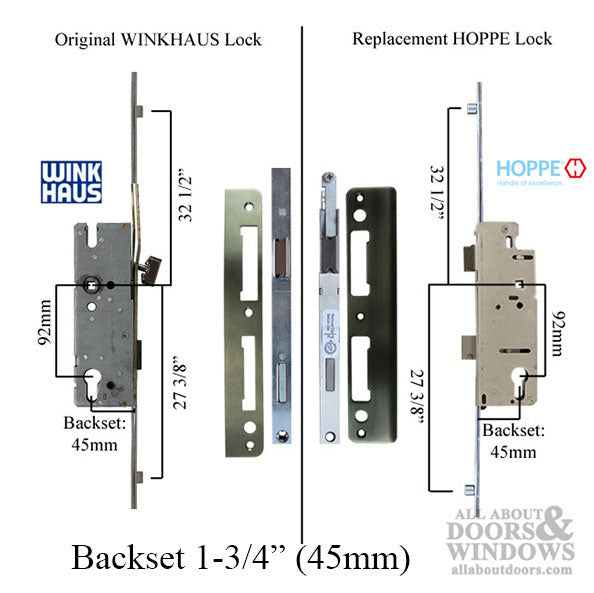

  • Status: Discontinued – replace with Hoppe 3-point or 5-point lock #4991175-KIT
This product has been discontinued and is no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Winkhaus 5-Point Multipoint Lock – 45/92 (499117599)

This Winkhaus 5-point multipoint lock features two rollers and top and bottom shootbolts, providing secure multi-point engagement for hinged patio doors. The lock is designed for door panels between 92 and 96 inches tall.

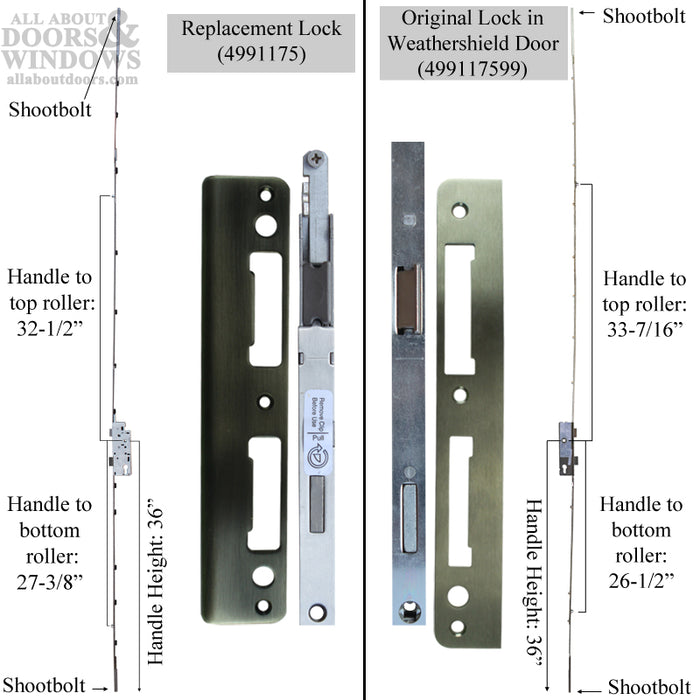

The bottom roller is positioned 26-1/2 inches down from the handle, while the top roller sits 33-7/16 inches up from the handle. With a 45mm (1-3/4 inch) backset and 92mm (3-5/8 inch) PZ measurement, this lock was originally used in several door brands before being discontinued.

Technical Information

  • PZ (Handle to Cylinder): 92mm (3-5/8 inches)
  • Backset: 45mm (1-3/4 inches)
  • Lock Points: 5-point (2 rollers + top shootbolt + bottom shootbolt + latch)
  • Door Panel Height Range: 92 to 96 inches
  • Bottom Roller Distance from Handle: 26-1/2 inches
  • Top Roller Distance from Handle: 33-7/16 inches

Notes

  • Compatible with Weathershield hinged patio doors manufactured prior to March 2002
  • Compatible with ProShield hinged patio doors manufactured prior to August 2004
  • Compatible with Visions hinged patio doors manufactured prior to February 2004
  • This lock is discontinued and no longer available from the manufacturer

Replaces / Replaced by

  • Replace with Hoppe 3-point or 5-point lock: 4991175-KIT

Related Parts

  • 4991175-KIT - Hoppe 3-point or 5-point replacement lock kit

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the replacement for this discontinued Winkhaus lock?

This lock can be replaced with the Hoppe 3-point or 5-point lock kit, part number 4991175-KIT.

How do I know if this lock fits my door?

This lock fits door panels between 92 and 96 inches tall. Verify your backset is 45mm (1-3/4 inches) and PZ is 92mm (3-5/8 inches) by measuring from the door edge to handle center and from handle center to cylinder center.

Can a Winkhaus multipoint lock be re-handed?

Yes, Winkhaus multipoint locks can typically be re-handed. Refer to the manufacturer's instructions or contact us for guidance on the re-handing process.
