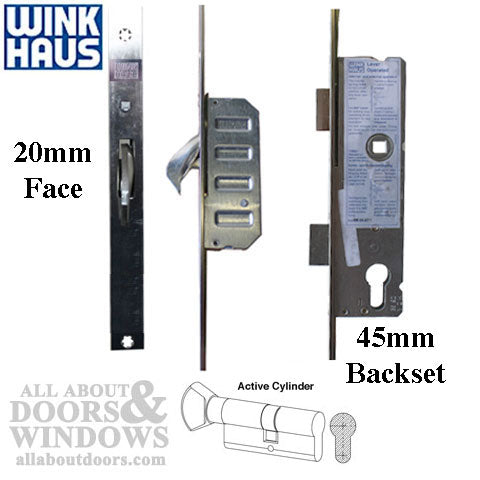

Winkhaus Euro Multipoint Lock with Hooks – 45mm Backset, 92mm PZ

SKU: 49911-6199

$272.69 - $272.69

$272.69

$272.69 - $272.69

$272.69

PZ (Handle to Cylinder): 3-5/8" (92mm)
Backset: 1-3/4" (45mm)
Faceplate Width: 3/4" (20mm)
Faceplate Color: Yellow Dichromate (YDI)
Handle Height: Cropable from 34" to 41-5/16" (864mm to 1050mm)
Top Hook Position: 23-1/4" (590mm) from center of handle
Bottom Hook Position: 29-1/2" (750mm) from center of handle
Overall Length: 82.842" (2104mm) – cropable at top or bottom
Spindle Diameter: 5/16" (8mm)
Cylinder Type: Euro/Profile with standard Schlage keyway
Stamped on Faceplate: Wink Haus 115422
DISCONTINUED – limited to existing inventory

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Winkhaus Euro Multipoint Lock with Hooks – 45/92 (49911-6199)

This Winkhaus Euro version multipoint lock features dual hooks for enhanced security on multipoint door systems. The lock body offers a 1-3/4 inch (45mm) backset and 3-5/8 inch (92mm) PZ spacing, making it compatible with standard European-style handlesets.

With an overall length of 82.842 inches (2104mm), this lock can be cropped at either the top or bottom to accommodate various door heights and handle positions. The handle height is adjustable from 34 inches to 41-5/16 inches (864mm to 1050mm) depending on how the lock is trimmed.

The top hook is positioned 23-1/4 inches (590mm) from the center of the handle, while the bottom hook sits at 29-1/2 inches (750mm). This configuration provides solid multi-point engagement for improved door security.

Cropping Example

To fit a 79-inch door: 82.842 inches minus 79 inches equals 3.842 inches of cutoff. This adjusts the handle height from 41.321 inches down to approximately 37.5 inches. Alternatively, you can cut from the bottom to achieve a specific handle height (such as 36 inches) and use the cut-off piece as a filler at the top of the door.

Stamped With

Wink Haus 115422 (on faceplate)

Technical Information

PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Backset: 1-3/4 inches (45mm)
Faceplate Width: 3/4 inch (20mm)
Faceplate Color: Yellow Dichromate (YDI)
Handle Height Range: 34 to 41-5/16 inches (864mm to 1050mm)
Top Hook Position: 23-1/4 inches (590mm) from handle center
Bottom Hook Position: 29-1/2 inches (750mm) from handle center
Overall Length: 82.842 inches (2104mm)
Spindle Diameter: 5/16 inch (8mm)
Cylinder Type: Euro/Profile – Standard Schlage keyway

Notes

DISCONTINUED – limited to existing inventory only
Lock is cropable at top or bottom for different door and handle heights
Latch handing can be reversed – see article on how to change handing on Winkhaus multipoint locks
Replacement lock kit available soon

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I crop this lock to fit my door?

Measure your desired door length, subtract from the overall 82.842 inches, and cut that amount from either the top or bottom. Adjust your handle height calculation accordingly.

Can I reverse the latch handing on this Winkhaus lock?

Yes, the latch slope can be reversed to change the handing. Refer to the Winkhaus multipoint lock handing reversal instructions for the proper procedure.

What cylinder type does this lock use?

This lock uses a Euro/Profile cylinder with a standard Schlage keyway.
