Winkhaus One Motion Lock (OML) Replacement – 45mm Backset, 92mm PZ, Key Above Handle

Winkhaus One Motion Lock (OML) Replacement – 45mm Backset, 92mm PZ, Key Above Handle

SKU: 49911-2045H-02

  • PZ: 3-5/8" (92mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 25/32" (20mm) – Optional 5/8" (16mm)
  • Handle Height: 36" (914mm)
  • Faceplate Length: Approximately 86" (varies with door panel)
  • Key/Handle Position: Key Above Handle
  • Locking Devices: Deadbolt and 2 Hooks
  • Top Hook Position: 36.5" (901mm)
  • Bottom Hook Position: 27.2" (601mm)
  • Markings on Some Locks: G3 TFX020 2822972, 1346724
  • Winkhaus OML has been discontinued – replacement options available for single and double French doors
Discontinued and no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Winkhaus OML Replacement – 45/92, Key Above (49911-2045H-02)

The Winkhaus One Motion Lock (OML) has been discontinued and original parts are no longer available. This listing provides specifications to help you identify your existing lock and find a suitable replacement.

If your multipoint lock matches the measurements and configuration below, replacement options are available for both single and double French doors. Please contact our office for assistance in selecting the correct replacement lock for your application.

Technical Information

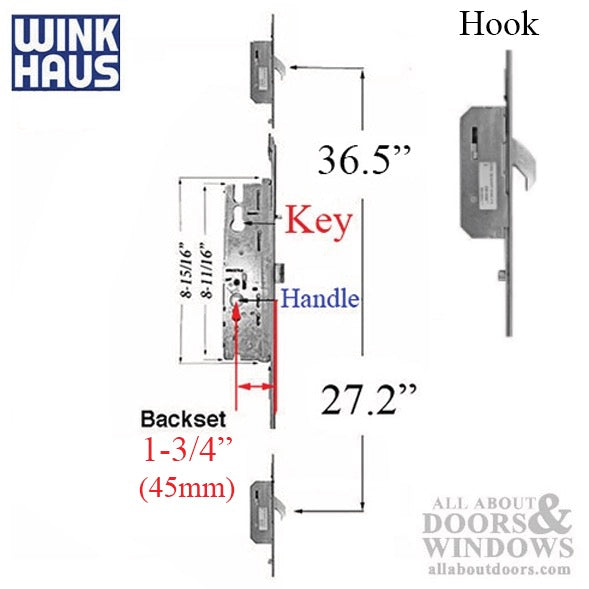

  • Handle/Cylinder PZ: 3-5/8 inches (92mm)
  • Backset: 1-3/4 inches (45mm)
  • Faceplate Width: 25/32 inch (20mm) – Optional 5/8 inch (16mm)
  • Handle Height: 36 inches (914mm)
  • Faceplate Length: Approximately 86 inches (varies with door panel)
  • Key/Handle Position: Key Above Handle
  • Locking Devices: Deadbolt and 2 Hooks
  • Top Hook Position: 36.5 inches (901mm)
  • Bottom Hook Position: 27.2 inches (601mm)

Stamped With

  • G3 TFX020 2822972
  • 1346724

Notes

  • Winkhaus OML has been discontinued – original parts not available
  • Replacement options available for single and double French doors
  • Contact office to ensure accurate replacement selection

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why can't I find replacement parts for my Winkhaus One Motion Lock?

The Winkhaus One Motion Lock (OML) has been discontinued and original parts are no longer available. However, replacement lock options are available for both single and double French doors.

How do I know if this is the right replacement for my lock?

Compare your existing lock's measurements including the 45mm backset, 92mm PZ, handle height of 36 inches, and key above handle configuration. Look for markings like G3 TFX020 2822972 or 1346724 on your current lock.

What does 'Key Above Handle' mean?

This refers to the position of the key cylinder relative to the handle on the lock. In this configuration, the key cylinder is located above the door handle.
